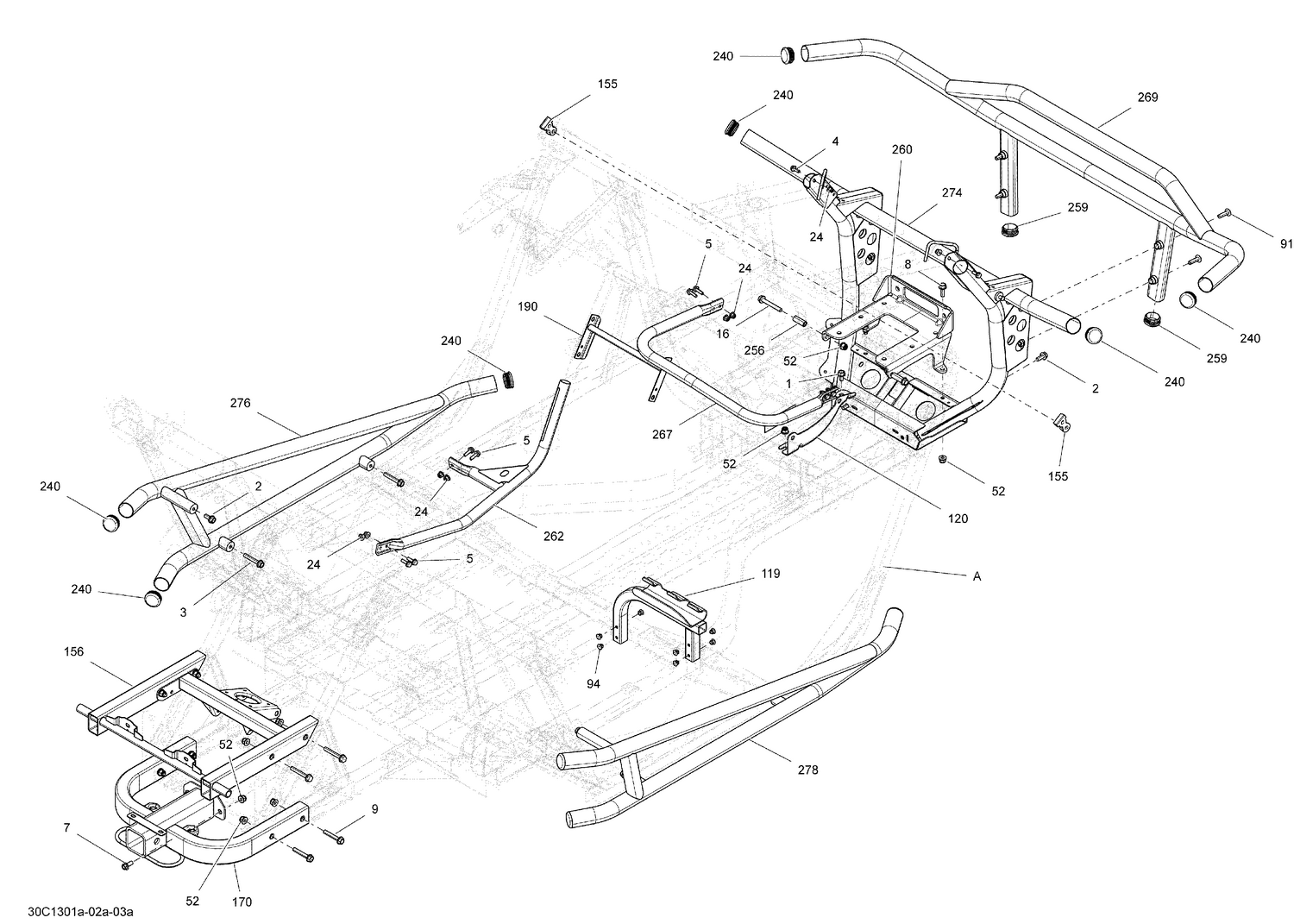

| Ref | Part Number | Description |
|---|
| 1 |
207581644 |
Hex. Flange Screw M8 X 16, Scotch Grip |
| 2 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 4 |
207661644 |
Hex. Flange Screw M6 X 16 |
| 5 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 7 |
207682044 |
Hex. Flange Screw M8 X 20 |
| 9 |
207685044 |
Hex. Flange Screw M8 X 50 |
| 24 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 52 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 94 |
293150096 |
Hemlock Rivet, 6.5 mm |
| 119 |
715001986 |
FRAME - Call your local BRP dealership This part replaces 715001721. |
| 120 |
705201721 |
Front Differential Support |
| 155 |
705203415 |
Binding Block This part replaces 705202129. |
| 156 |
705203325 |
BOX HOLDER - Call your local BRP dealership This part replaces 705202165. |
| 170 |
715001251 |
TRAILER HITCH ASS'Y - Call your local BRP dealership |
| 190 |
705203330 |
Reinforcement Panel This part replaces 705202463. |
| 240 |
705202455 |
Cap |
| 262 |
705203828 |
HANDLE - Call your local BRP dealership This part replaces 705202946. |
| 267 |
705203332 |
Black Handle This part replaces 705202950. |
| 274 |
705202995 |
Black Front Bumper |
