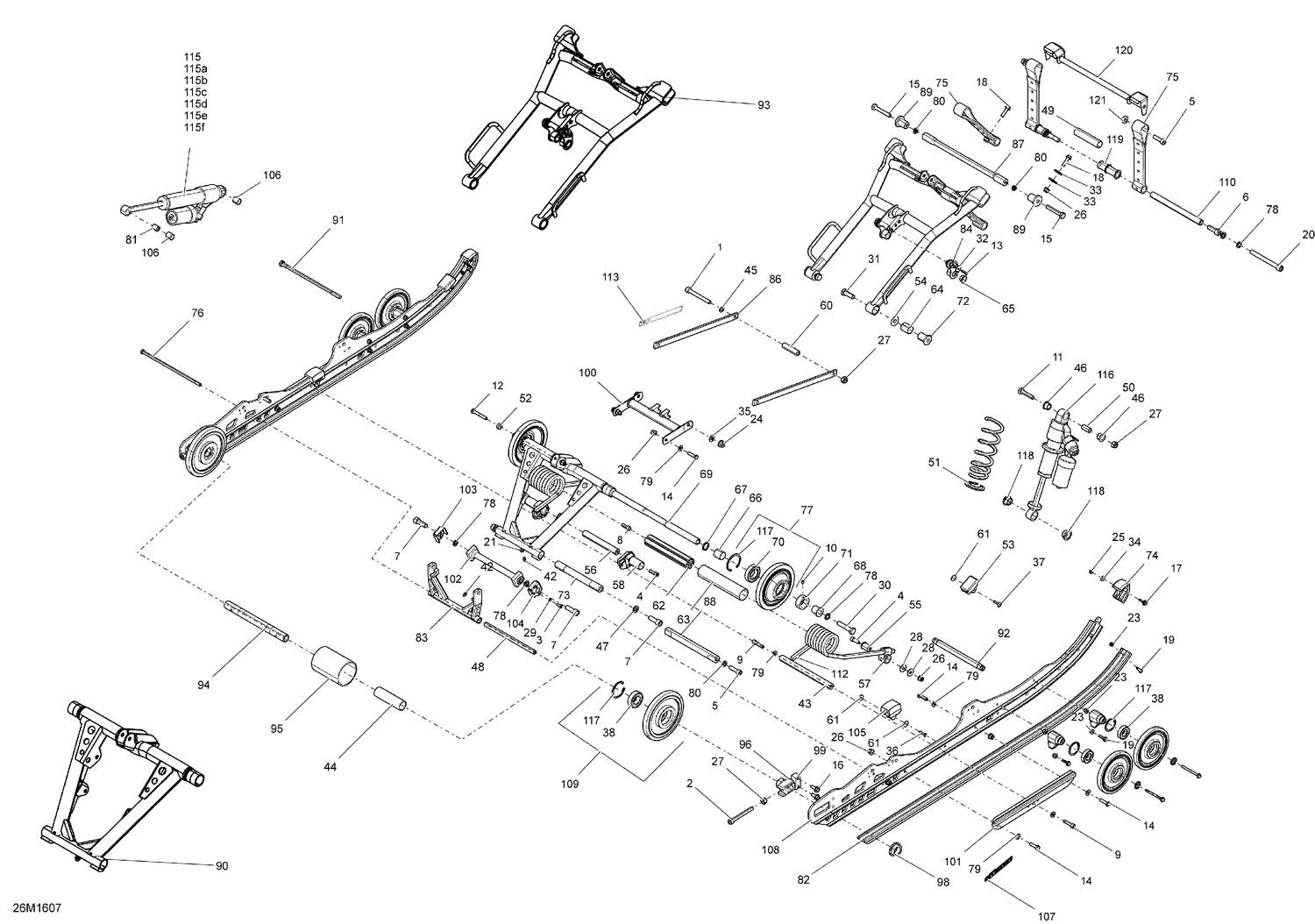

08- Rear Suspension
Parts (118)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 205009044 | Socket Screw M10 X 90 |
| 2 | 205009087 | Socket Head Screw |
| 3 | 205061260 | Socket Head Screw M6 X 12 |
| 4 | 205082554 | Socket Screw M8 X 25 |
| 5 | 205503554 | Socket Head Screw M10 X 35 |
| 6 | 205523554 | Socket Head Screw M12 X 35 |
| 7 | 205523587 | Socket Head Screw Scotch Grip Din.912 |
| 8 | 205582544 | Socket Head Screw M8 X 25, Scotch Grip |
| 9 | 205583544 | Socket Head Screw M8 X 35, Scotch Grip |
| 10 | 206260844 | Socket Set Screw M6 X 8 |
| 11 | 207005044 | Hex. Screw M10 X 1.5 X 50 |
| 12 | 207085586 | Hex. Screw M8 X 55 |
| 13 | 207152044 | Hex. Screw M5 X 20 |
| 14 | 207183054 | Hex. Cap Screw M8 X 30 |
| 15 | 207206534 | Hex. Screw M10 X 65, Scotch Grip |
| 16 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 17 | 207652544 | Hex. Flange Screw M5 X 25 |
| 18 | 207683044 | Hex. Flange Screw M8 X 30 |
| 19 | 208562531 | Phillips Screw M6 X 25 |
| 20 | 231022087 | SOCKET HEAD SCREW M12 X 120 - Call your local BRP dealership |
| 21 | 232061404 | Hexagonal Nut M6 |
| 23 | 232561414 | Elastic Stop Nut M6 |
| 24 | 233201466 | Flange Elastic Nut M10 |
| 25 | 233251434 | Flange Elastic Nut M5 |
| 26 | 233281466 | Elastic Flange Nut M8 |
| 28 | 234082410 | Flat Washer 8 mm |
| 29 | 234161471 | Lock Washer M6, Black |
| 30 | 250000485 | Hex. Cap Screw M12 X 60, Scotch Grip |
| 31 | 250000537 | Hex. Cap Screw M12 X 35 |
| 32 | 250200016 | Washer |
| 33 | 250200128 | Flat Washer 8 mm |
| 34 | 250200140 | Washer |
| 35 | 250200143 | Flat Washer |
| 36 | 293150013 | Pop Rivet 3/16" |
| 37 | 293150013 | Pop Rivet 3/16" |
| 38 | 293350115 | Ball Bearing |
| 42 | 408200700 | Grease Fitting |
| 43 | 503151600 | Axle |
| 44 | 503156000 | Center Spacer |
| 45 | 503175800 | Washer |
| 46 | 503189117 | Urethane Bushing |
| 47 | 503189148 | Washer |
| 48 | 503189156 | Pivot Arm Axle |
| 49 | 503189265 | Spacer |
| 50 | 503189282 | Bushing |
| 51 | 503190271 | Spring Stopper |
| 52 | 503190526 | Spacer |
| 53 | 503190576 | Rubber Stopper |
| 54 | 503190656 | Washer |
| 55 | 861805547 | Spring Support Kit This part replaces 503190754. |
| 56 | 503191178 | Spring Cam Axe |
| 57 | 861805547 | Spring Support Kit This part replaces 503191183. |
| 58 | 503191190 | RH Spring Cam |
| 58 | 503191191 | LH Spring Cam |
| 60 | 503191192 | Bar Axle |
| 61 | 503191273 | Washer |
| 62 | 503191344 | Spring Axle |
| 63 | 503191345 | Plastic Bushing |
| 64 | 503191554 | Bushing |
| 65 | 503191555 | Swivel Bushing |
| 66 | 503191773 | Bushing |
| 67 | 503191774 | Washer |
| 68 | 503191775 | Bushing |
| 69 | 503191776 | Upper Shaft |
| 70 | 503191778 | Ball Bearing |
| 71 | 503191782 | Retaining Ring |
| 72 | 503191966 | Lower Axle |
| 73 | 503192095 | Lower Shaft |
| 74 | 503192299 | Runner Protector |
| 75 | 503192360 | Stopper Strap |
| 76 | 503192440 | Bolt M8 X 248mm |
| 77 | 503192483 | BLACK WHEEL ASS'Y 155 MM - Call your local BRP dealership |
| 78 | 503192491 | Washer |
| 81 | 503196509 | Axle Shock Absorber This part replaces 503192606. |
| 82 | 503192618 | Black Slider, 154" |
| 83 | 503192701 | Pivot Arm |
| 84 | 503192706 | LH ROCKER ARM - Call your local BRP dealership |
| 84 | 503192707 | RH ROCKER ARM - Call your local BRP dealership |
| 86 | 503192712 | ROD_LINK - Call your local BRP dealership |
| 87 | 503192713 | Slide Bushing |
| 88 | 503192715 | Limit Axle |
| 89 | 503192721 | Bushing |
| 90 | 503193126 | Rear Arm |
| 91 | 503193227 | Bolt M10 X 251MM |
| 92 | 503193435 | Pivot Axle |
| 93 | 503195009 | FRONT ARM ASS'Y - Call your local BRP dealership This part replaces 503193685. |
| 94 | 503193692 | Rear Axle |
| 95 | 503193693 | Bushing |
| 96 | 503193694 | Spacer |
| 98 | 503193695 | Nut |
| 98 | 503193696 | Nut |
| 99 | 503193697 | Tensioner |
| 100 | 503194129 | Reinforcement |
| 101 | 503194175 | Rail Reinforcement |
| 102 | 503194161 | Cam Axle |
| 103 | 503194162 | Plate |
| 104 | 503194163 | Plate |
| 105 | 503194164 | Stopper Rubber |
| 106 | 505072663 | Leg Cushion |
| 107 | 516004755 | Runner Decal |
| 108 | 503194424 | RAIL_SUSPENSION ECOAT - Call your local BRP dealership |
| 109 | 503194127 | Wheel 165" |
| 110 | 503194431 | AXLE - Call your local BRP dealership |
| 112 | 503194179 | LH Spring |
| 112 | 503194180 | RH Spring |
| 113 | 516005609 | Shock Position Decal |
| 115 | 503194348 | REAR SHOCK - Call your local BRP dealership |
| 115a | 415093807 | O-Ring |
| 115b | 415093806 | Piston Ring |
| 115c | 505070398 | Air Valve |
| 115d | 505070399 | Screw |
| 115e | 505070400 | O-Ring |
| 115f | 415093804 | O-Ring |
| 116 | 503194347 | Center Shock |
| 117 | 415129598 | Retaining Ring |
| 118 | 503189271 | Bushing |
| 119 | 503194432 | AXLE - Call your local BRP dealership |
