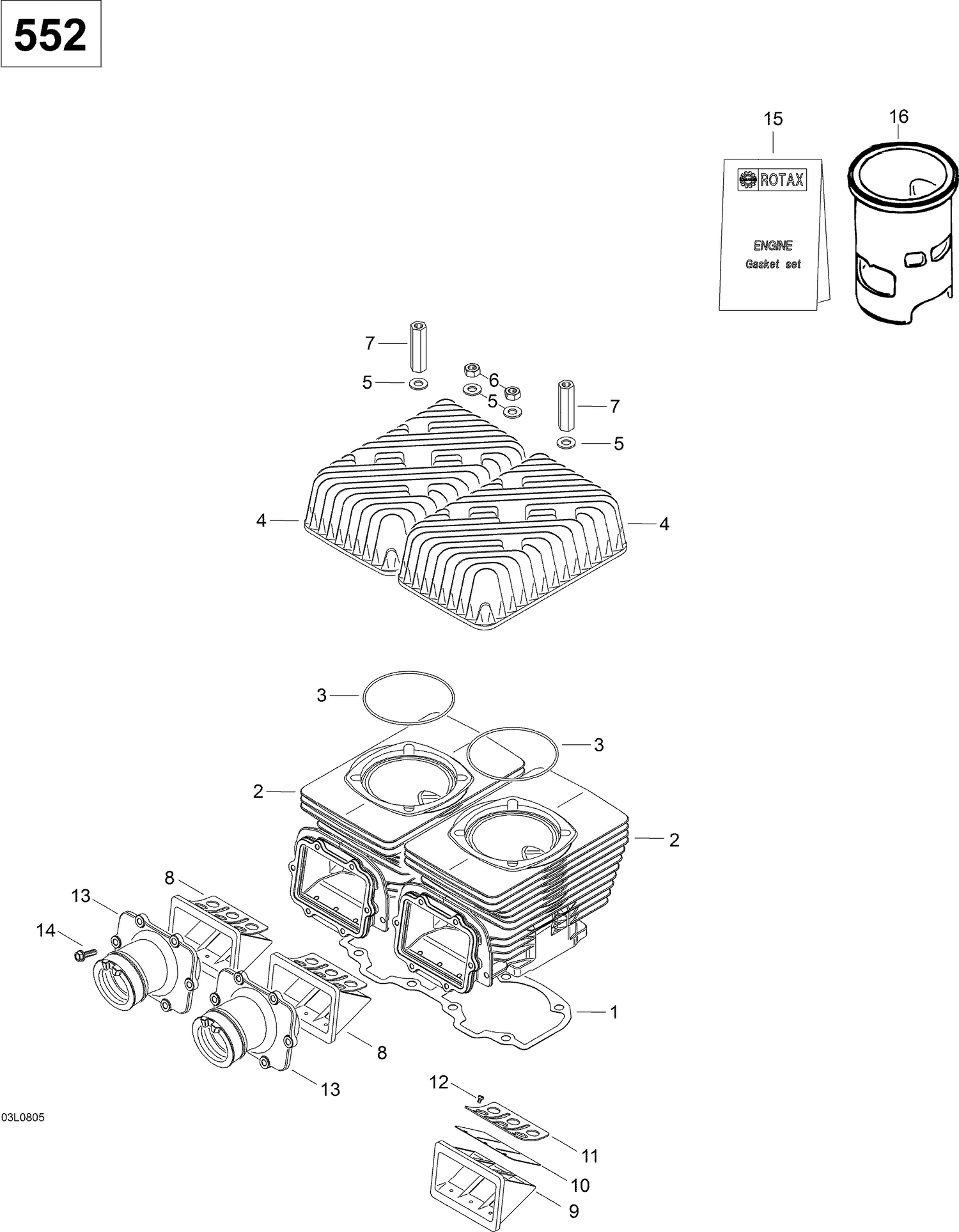

01- Cylinder And Cylinder Head 552
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420950910 | Gasket 0.3 mm |
| 1 | 420950911 | Gasket 0.4 mm |
| 1 | 420950912 | Gasket 0.6 mm |
| 2 | 420623142 | Cylinder With Sleeve This part replaces 420623141. |
| 3 | 293300026 | O-ring 83 mm |
| 4 | 420923597 | Cylinder head |
| 5 | 420250315 | Flat Washer 8.4 Mm This part replaces 420250311. |
| 6 | 232081414 | Hex. Nut M8 This part replaces 420242206. |
| 7 | 420842204 | Distance Nut M8 x 47 This part replaces 420842203. |
| 8 | 420924519 | Reed Valve Support Ass'y |
| 9 | Not | Available As Spare Part - Reed valve housing |
| 10 | 420924532 | Reed Pedal |
| 11 | 420924539 | Reed Pedal Stop |
| 12 | 420941215 | Oval-head screw M3 x 5 |
| 13 | 420867105 | Carburetor socket |
| 14 | 420941928 | Taptite Screw M5 X 16 This part replaces 420941925. |
| 15 | 420889911 | Engine gasket set |
