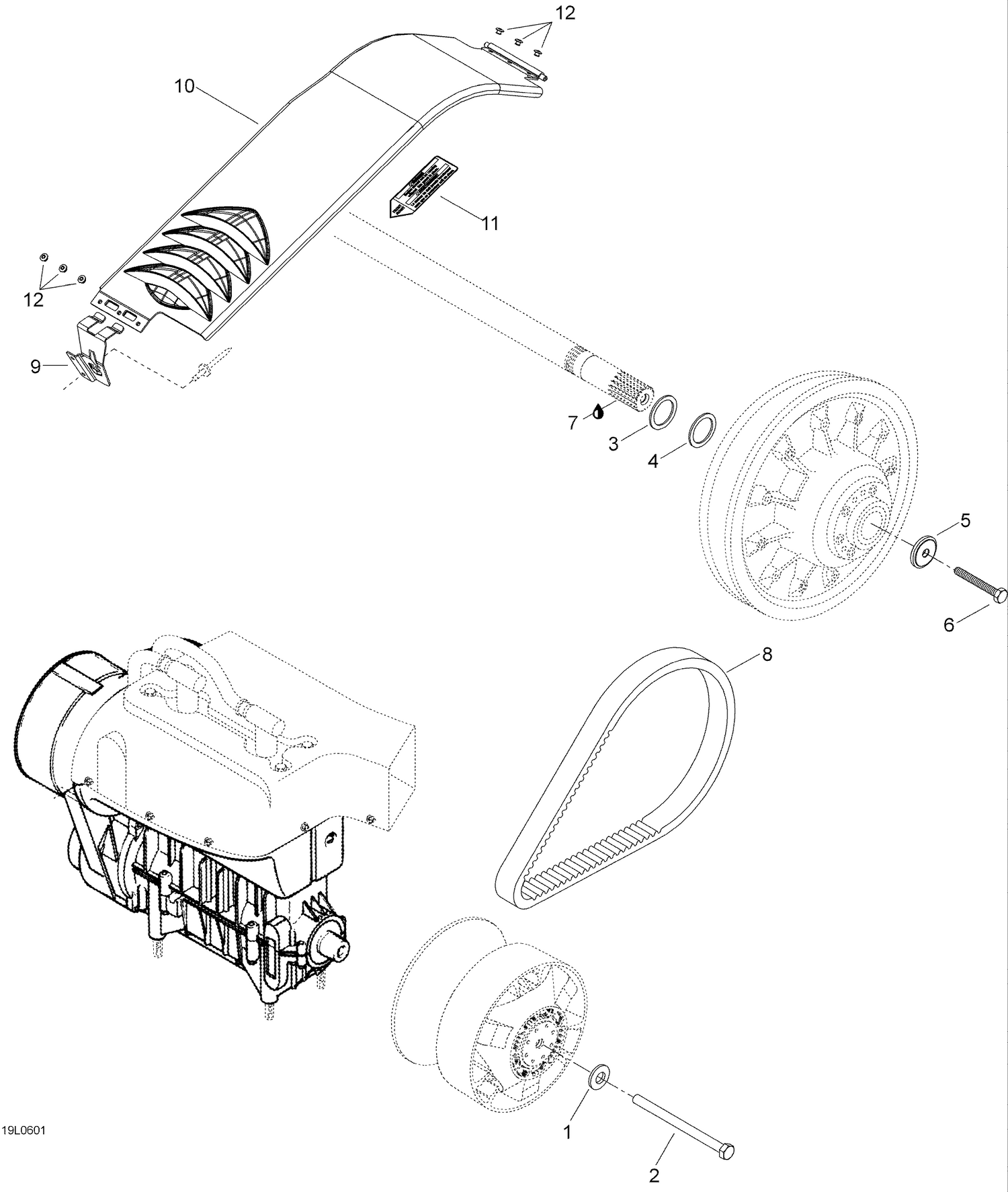

05- Pulley System
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 20110 | Washer M14 |
| 2 | 417120000 | Bolt M14 |
| 3 | 417300265 | Spacer This part replaces 417300054. |
| 4 | 417300055 | Shim |
| 5 | 517302322 | Washer |
| 6 | 40089 | M8 x 75DIN 931m8.8Zne(1=10pcs) - Call your local BRP dealership |
| 7 | 293800070 | Lubricant LOCTITE LB 8150 - Call your local BRP dealership |
| 8 | 414860700 | Drive belt |
| 9 | 417300001 | Bracket |
| 11 | 516002670 | WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership This part replaces 516001190. |
