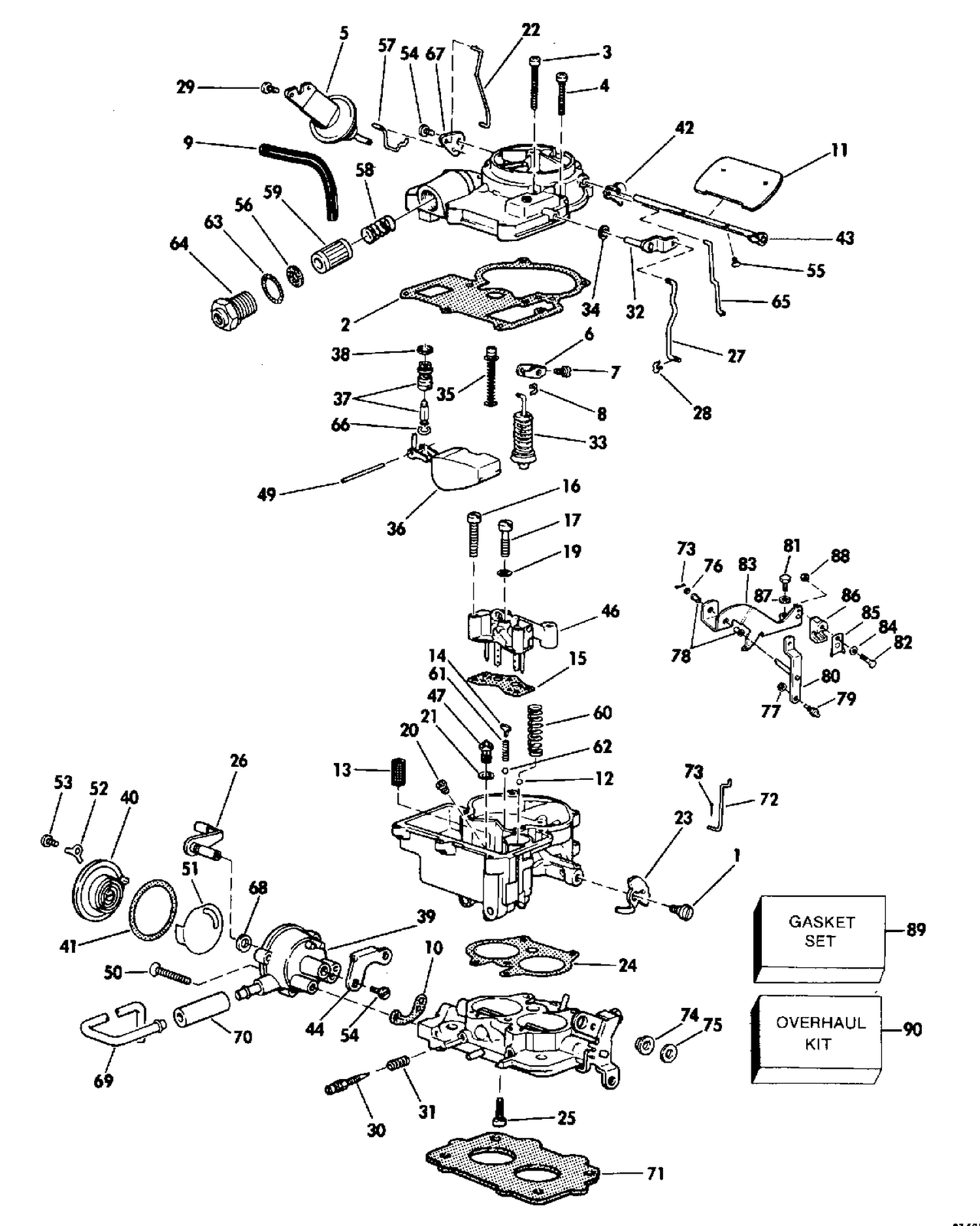

| Ref | Part Number | Description |
|---|
| 1 |
0311651 |
SCREW, Idle stop |
| 3 |
0312416 |
SCREW, Air horn |
| 4 |
0316307 |
SCREW, Air horn, short |
| 5 |
0981814 |
VACUUM BREAK ASSY |
| 6 |
0312419 |
LEVER, Pump inside |
| 7 |
0311611 |
FITTING |
| 9 |
0314531 |
HOSE, Vacuum |
| 11 |
0909735 |
CHOKE VALVE |
| 16 |
0909742 |
SCREW, Venturi cluster outer |
| 17 |
0909743 |
SCREW, Venturi cluster center |
| 20 |
0313059 |
JET, Main metering |
| 22 |
0909744 |
CHOKE ROD |
| 23 |
0312437 |
STOP, Idel speed screw |
| 25 |
0312439 |
SCREW, Throttle body |
| 26 |
0982181 |
INTERMEDIATE CHOKE SHAFT |
| 27 |
0909745 |
PUMP ROD |
| 29 |
0909733 |
SCREW, Control attaching |
| 31 |
0312445 |
SPRING, Idle needle |
| 32 |
0981794 |
PUMP SHAFT & LEVER ASSY |
| 33 |
PUMP |
ASSY |
| 34 |
0909729 |
WASHER, Pump lever |
| 35 |
0382013 |
POWER PISTON ASSEMBLY |
| 36 |
0982385 |
FLAT ASSY. |
| 39 |
CHOKE |
HOUSING ASSY |
| 40 |
THERM |
COVER |
| 43 |
0981815 |
CHOKE & LEVER ASSY. |
| 44 |
0909736 |
LEVER INTERMEDIATE CHOKE |
| 46 |
VENTURI |
CLUSTER ASSY |
| 47 |
POWER |
VALVE ASSY |
| 49 |
0909731 |
PIN, Float hinge |
| 50 |
0909737 |
SCREW, Choke housing |
| 51 |
BAFFLE |
PLATE |
| 52 |
0311662 |
RETAINER, Therm cover |
| 53 |
0311661 |
SCREW, Pump lever |
| 54 |
0311669 |
SCREW, Choke lever |
| 55 |
0311666 |
SCREW, Choke valve |
| 57 |
0909732 |
LINK, Vacuum break |
| 58 |
0909730 |
SPRING, Fuel filter |
| 59 |
0984491 |
FILTER, Fuel inlet This part replaces 0311684. |
| 64 |
0311687 |
FILTER NUT, Fuel inlet |
| 65 |
0909740 |
INTERMEDIATE CHOKE ROD |
| 67 |
0980004 |
CHOKE LEVER & COLLAR |
| 69 |
0910161 |
TUBE ASSY, Carburetor choke |
| 70 |
0372509 |
CONNECTOR, Carb to head exchanger |
| 71 |
0909758 |
GASKET, Caarburetor 185 hp |
| 72 |
0910491 |
LINK, Throttle rod to carb |
| 74 |
0910574 |
BUSHING, Link to carb |
| 75 |
0510150 |
WASHER, Ball joint |
| 76 |
0303887 |
WASHEER, Pin to swivel bracket |
| 78 |
0908979 |
BUSHING, Pivot bracket |
| 79 |
0910468 |
PIN, Lever |
| 80 |
0982698 |
THROTTLE SHAFT & PIN ASSY |
| 81 |
0306450 |
SCREW |
| 82 |
0309654 |
SCREW |
| 83 |
0913563 |
THROTTLE BRACKET This part replaces 0982783. |
| 84 |
0328737 |
RONDELLE, levier de sens de marche et manette des gaz This part replaces 0306561. |
| 85 |
0909790 |
RETAINER |
| 86 |
0310685 |
ABCHOR BLCOK, Trunnion |
| 89 |
0984487 |
CARB. REPAIR KIT This part replaces 0983073. |
| 0982359 |
0983688 |
CARBURETOR ASSY This part replaces 0982359. |
