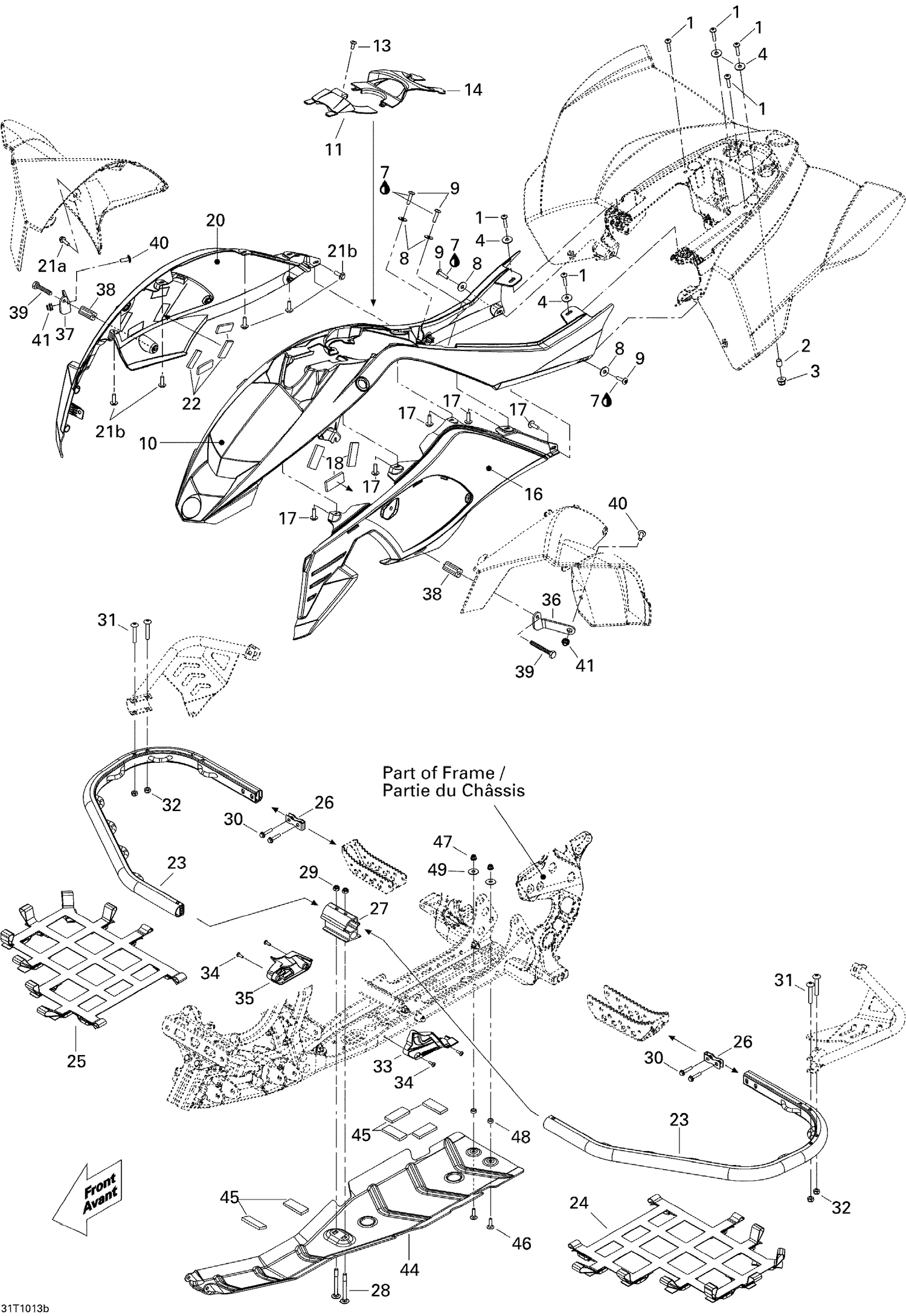

| Ref | Part Number | Description |
|---|
| 1 |
250000762 |
Torx Screw M5 X 25 This part replaces 250000300. |
| 2 |
709000162 |
Bushing |
| 3 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 4 |
391301600 |
Washer |
| 7 |
293800060 |
Loctite 243, 10 ml |
| 8 |
234062670 |
Stainless Steel Flat Washer |
| 9 |
250000284 |
Torx Screw M6 x 25 |
| 10 |
705001750 |
FRONT FASCIA - Call your local BRP dealership |
| 11 |
705001758 |
DASH-BOARD - Call your local BRP dealership |
| 13 |
250000721 |
Torx Truss Screw M6 X 16 This part replaces 250000129. |
| 14 |
705002288 |
ACCESS COVER - Call your local BRP dealership |
| 16 |
705004039 |
LH SIDE PANEL - Call your local BRP dealership |
| 17 |
243141630 |
Hex. Plastic Screw M4.8 X 16 |
| 18 |
705002447 |
Gasket |
| 20 |
705004040 |
RH SIDE PANEL - Call your local BRP dealership |
| 21a |
207562034 |
Hex. Flange Screw M6 X 20, Scotch Grip |
| 21b |
243141630 |
Hex. Plastic Screw M4.8 X 16 |
| 22 |
705002447 |
Gasket |
| 23 |
705003924 |
NERF BAR - Call your local BRP dealership |
| 24 |
705003928 |
LH NET - Call your local BRP dealership |
| 25 |
705003929 |
RH NET - Call your local BRP dealership |
| 26 |
705002646 |
ATTACHMENT PLATE - Call your local BRP dealership |
| 27 |
705003761 |
NERF BAR HOLDER - Call your local BRP dealership |
| 28 |
207788036 |
CARRIAGE BOLT M8 X 80 - Call your local BRP dealership |
| 29 |
232581434 |
Elastic Stop Nut |
| 30 |
207682534 |
Hex. Flange Screw M8 X 25 |
| 33 |
705002631 |
LH ENGINE MOULDING - Call your local BRP dealership |
| 34 |
250000722 |
Torx Screw M6 X 20 This part replaces 250000128. |
| 35 |
705002632 |
RH Engine Moulding |
| 36 |
705002695 |
LH FENDER SUPPORT - Call your local BRP dealership |
| 37 |
705002696 |
RH FENDER SUPPORT - Call your local BRP dealership |
| 38 |
705002697 |
BUSHING - Call your local BRP dealership |
| 39 |
207265560 |
Hex. Screw M6 X 55, Scotch Grip |
| 40 |
250000721 |
Torx Truss Screw M6 X 16 This part replaces 250000129. |
| 41 |
250100242 |
Threaded Insert M6 X 1.0 This part replaces 293450274. |
