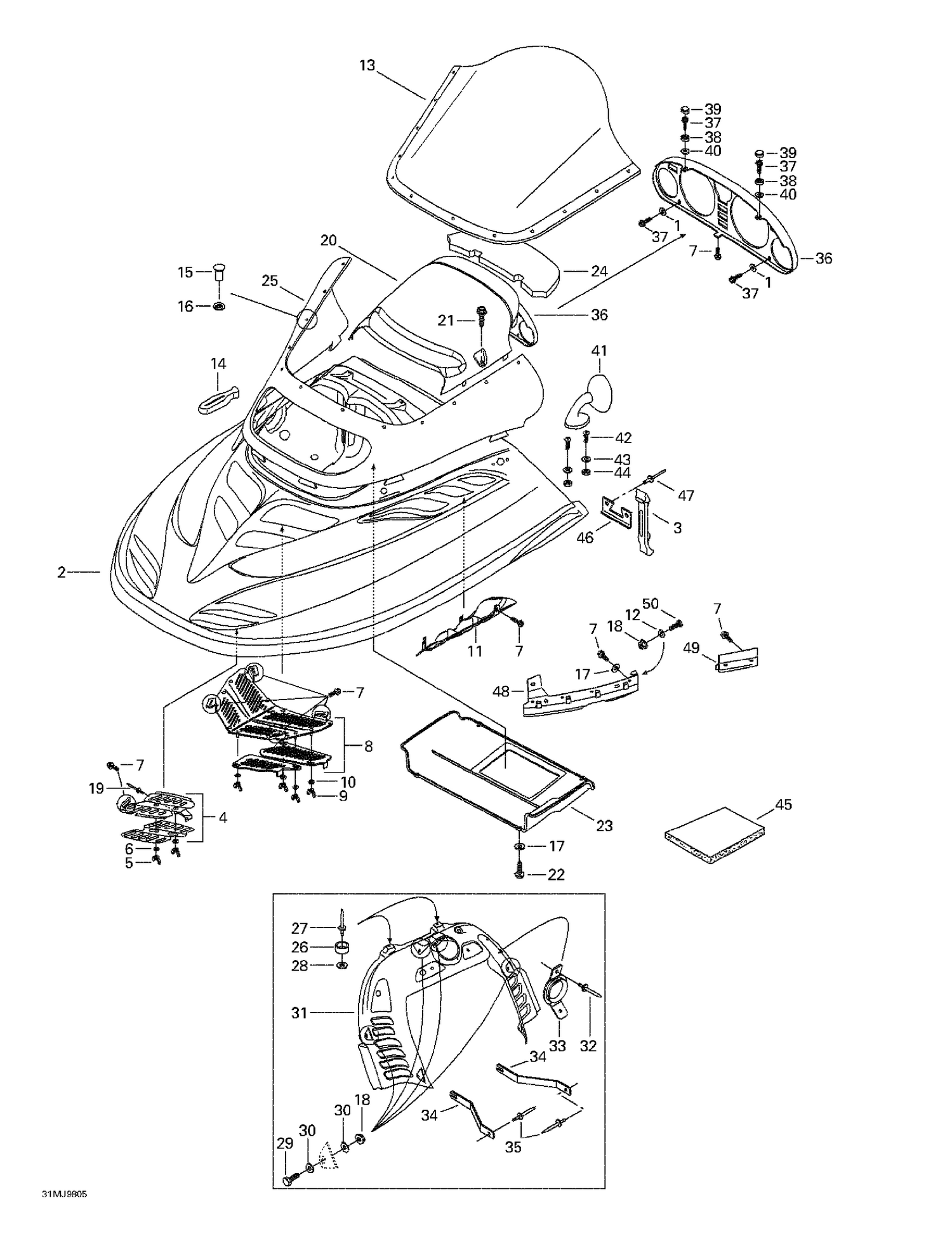

| Ref | Part Number | Description |
|---|
| 1 |
517124300 |
Washer |
| 3 |
517302152 |
Hood Latch This part replaces 570070600. |
| 5 |
414070300 |
Wing Nut M5 |
| 6 |
224151101 |
WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership |
| 7 |
732601210 |
HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership |
| 9 |
414070300 |
Wing Nut M5 |
| 10 |
224151101 |
WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership |
| 11 |
517288900 |
RH Rear Grill |
| 12 |
420845330 |
WASHER-LOCK SERRATED INT.EXT.M6 - Call your local BRP dealership This part replaces 420845270. |
| 13 |
415082500 |
High Windshield |
| 14 |
570023800 |
Windshield Latch |
| 15 |
572103500 |
STUD - Call your local BRP dealership |
| 16 |
732610072 |
Push Nut |
| 17 |
250200081 |
FLAT WASHER - Call your local BRP dealership This part replaces 391301700. |
| 18 |
233251434 |
Flange Elastic Nut M5 This part replaces 228751045. |
| 19 |
390402400 |
Pop Rivet 3/16" |
| 20 |
572107300 |
Air Intake Deflector |
| 21 |
414745900 |
Tuflock Phillips Plastic Screw |
| 22 |
243041660 |
HEX. PLASTITE SCREW M5.28 X 16 - Call your local BRP dealership This part replaces 211000074. |
| 23 |
572087800 |
Plate |
| 24 |
415123100 |
Filter Foam |
| 25 |
572087700 |
Windshield Support |
| 26 |
415018100 |
Rubber Stopper |
| 27 |
390401600 |
Pop Rivet 1/8" |
| 28 |
293150007 |
WASHER - Call your local BRP dealership |
| 29 |
207152044 |
Hex. Screw M5 X 20 This part replaces 222052065. |
| 30 |
391301600 |
Washer |
| 32 |
390409400 |
RIVET_POP 5/32 X ,400 BLACK - Call your local BRP dealership |
| 33 |
517296800 |
Rope Guide |
| 34 |
517296900 |
Bracket |
| 35 |
Not |
Available As Spare Part - Rivet |
| 37 |
241140060 |
Screw K40 X 10 This part replaces 211000028. |
| 38 |
414436800 |
RETAINER CAP - Call your local BRP dealership |
| 39 |
414436900 |
BLACK SNAP CAP - Call your local BRP dealership |
| 40 |
234042600 |
Flat Washer 4 mm, Stainless This part replaces 217042600. |
| 42 |
222842065 |
Screw M4 x 20 |
| 43 |
517124300 |
Washer |
| 44 |
232541414 |
Elastic Stop Nut M4 This part replaces 228541045. |
| 45 |
414632400 |
Acoustic Foam |
| 46 |
517302039 |
Reinforcement |
| 47 |
390401400 |
Rivet |
| 48 |
517301200 |
RH Hood Guide |
| 49 |
517302010 |
RH Hood Guide (Install on LH side) |
| 414631900 |
Acoustic |
Foam 414631900 |
| 414631900 |
Mousse |
Acoustique 414631900 |
| 414972010 |
LH |
MIRROR - Call your local BRP dealership 414972010 |
| 414972010 |
Rétroviseur |
GA - Appelez votre concessionnaire BRP local 414972010 |
| 517300600 |
Grille |
Arrière GA 517300600 |
| 517300600 |
LH |
Rear Grill 517300600 |
| 517300602 |
RH |
Rear Grill (Europe) 517300602 |
| 517301300 |
LH |
Hood Guide 517301300 |
| 517302012 |
LH |
Hood Guide (Install on RH side) 517302012 |
| 517302072 |
LH |
Front Grill Ass'y 517302072 |
