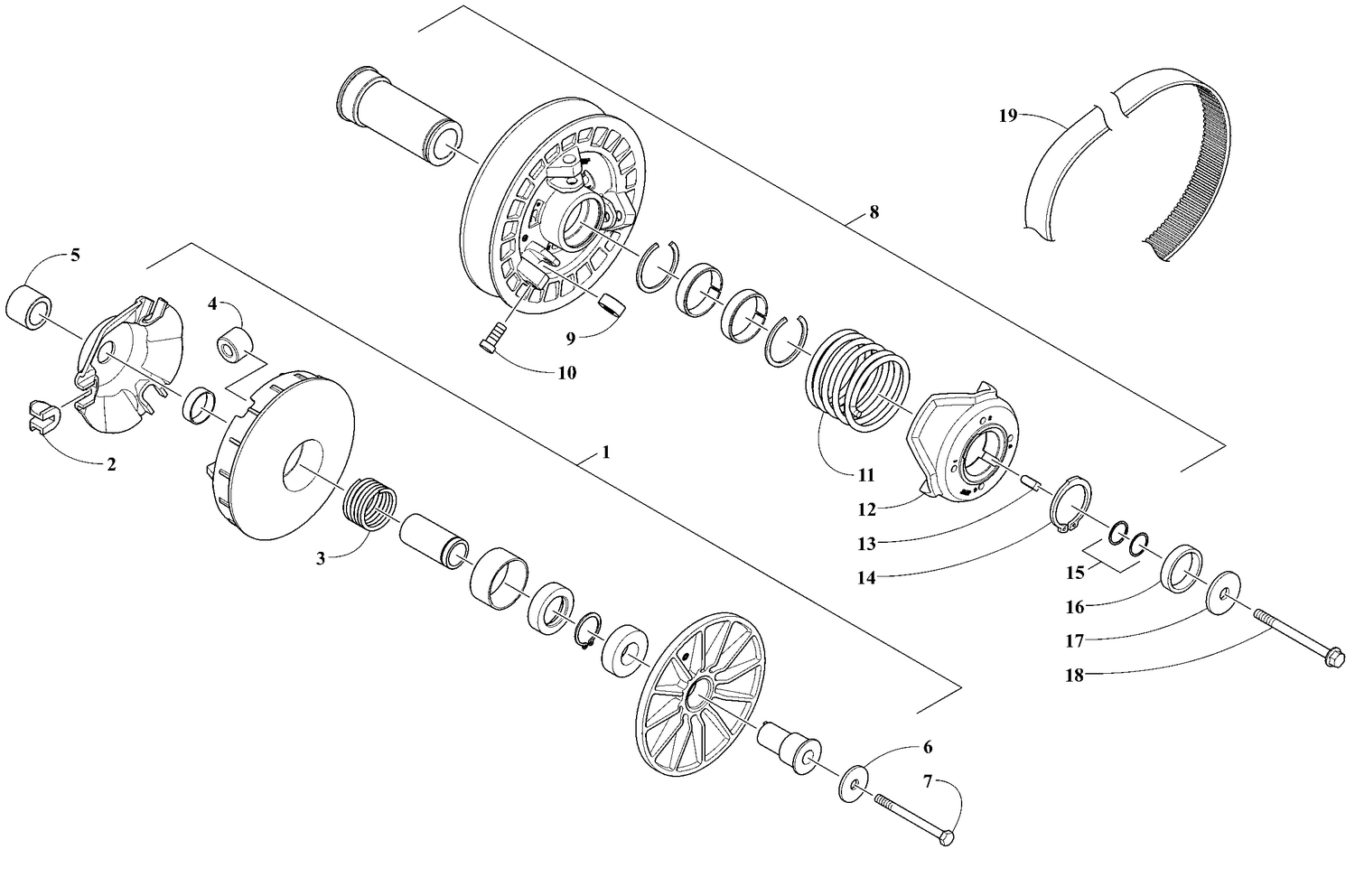

Clutch
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0725-993 | Drive Clutch Ass'y |
| 2 | 0646-986 | Slider Shoe |
| 3 | 0646-985 | Spring |
| 4 | 0646-987 | Roller 18GR |
| 4 | 0646-988 | Red, 14GR Roller KIt |
| 4 | 8639-103 | Black, Roller Kit 10Gr This part replaces 0646-989. |
| 5 | 2623-224 | Spacer |
| 6 | 0123-260 | Washer |
| 7 | 8014-170 | Cap Screw 5/16 X 2.75 |
| 8 | 0726-404 | Driven Clutch Ass'y |
| 9 | 0648-958 | Roller |
| 10 | 0648-959 | Roller Screw |
| 11 | 0648-957 | Spring |
| 12 | 0648-956 | Cam 50DEG |
| 13 | 0648-955 | Key |
| 14 | 0648-954 | Circlip |
| 15 | 0648-835 | Shim 0.039 |
| 15 | 0648-836 | Shim 0.020 |
| 16 | 2623-226 | Spacer |
| 17 | 2623-045 | Washer |
| 18 | 8411-075 | Cap Screw M10X75 |
