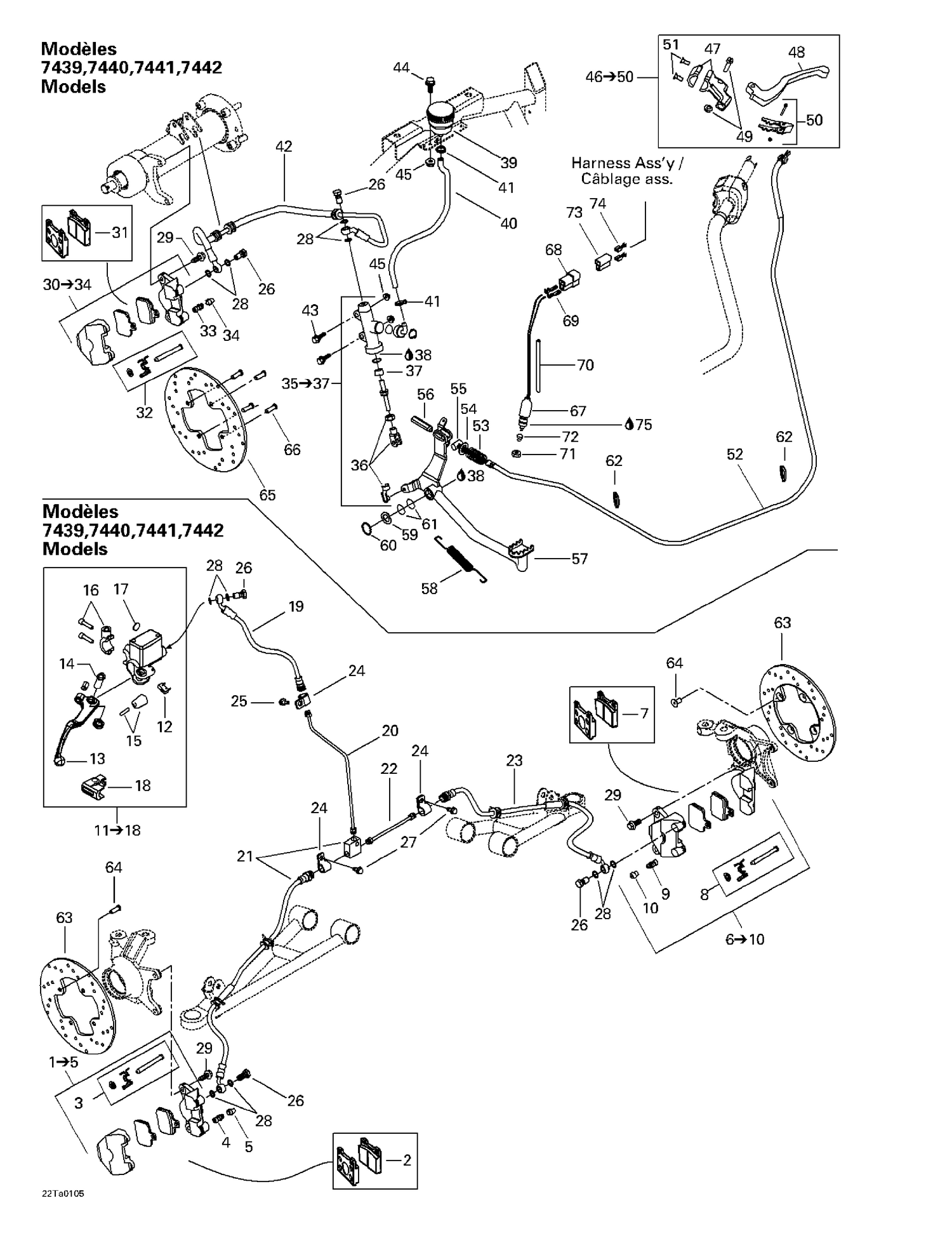

06- Hydraulic Brake (7439 7440
Parts (68)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 705600041 | PAD_BRAKE KIT - Call your local BRP dealership |
| 3 | 705600110 | Retainer Kit |
| 4 | 705600111 | Bleeder Screw |
| 5 | 414989700 | BOOT-QTS 20 - Call your local BRP dealership |
| 7 | 705600041 | PAD_BRAKE KIT - Call your local BRP dealership |
| 8 | 705600110 | Retainer Kit |
| 9 | 705600111 | Bleeder Screw |
| 10 | 414989700 | BOOT-QTS 20 - Call your local BRP dealership |
| 12 | 705600112 | Microswitch |
| 13 | 705600113 | ARM LEVER - Call your local BRP dealership |
| 14 | 414990200 | Pin Lever |
| 15 | 414990300 | Cap |
| 16 | 414990400 | Clamp |
| 17 | 414990600 | WINDOW - Call your local BRP dealership |
| 18 | 705600114 | BOOT RUBBER - Call your local BRP dealership |
| 19 | 705600007 | Brake Handle Hose |
| 20 | 705600036 | Vertical tube |
| 21 | 705600020 | Flexible Hose R.H |
| 22 | 705600038 | Horizontal tube |
| 23 | 705600059 | Flexible Hose L.H |
| 24 | 705600040 | Open Clamp |
| 25 | 210261650 | Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 26 | 414920500 | Banjo Bolt |
| 27 | 210661940 | Screw Hex. M6.3 x 19 |
| 28 | 414920600 | Washer |
| 29 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 31 | 705600041 | PAD_BRAKE KIT - Call your local BRP dealership |
| 32 | 705600110 | Retainer Kit |
| 33 | 705600111 | Bleeder Screw |
| 34 | 414989700 | BOOT-QTS 20 - Call your local BRP dealership |
| 36 | 705600021 | Pusher |
| 37 | 705600075 | Boot Bellow |
| 38 | 293550010 | Synthetic Grease, 400 G |
| 39 | 705600009 | OIL HOUSING - Call your local BRP dealership |
| 40 | 705600102 | Oil Housing Hose |
| 41 | 293650042 | Oetiker Clamp |
| 42 | 705600159 | Rear Brake Hose |
| 43 | 207662544 | Hex. Flange Screw M6 X 25 |
| 44 | 207661644 | Hex. Flange Screw M6 X 16 |
| 45 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 47 | 705600184 | CLAMP KIT - Call your local BRP dealership |
| 48 | 705600130 | Lever |
| 49 | 705600187 | Pivot Kit |
| 50 | 705600188 | Lever Lock Kit |
| 51 | 205351646 | SOCKET HEAD SCREW M5 X 16 - Call your local BRP dealership |
| 52 | 705600099 | REAR BRAKE CABLE - Call your local BRP dealership |
| 53 | 705600144 | SPRING - Call your local BRP dealership |
| 54 | 705600145 | FLAT WASHER - Call your local BRP dealership |
| 55 | 705600146 | CABLE BARREL - Call your local BRP dealership |
| 56 | 705600147 | NUT - Call your local BRP dealership |
| 57 | 705600131 | Brake Pedal (Black) |
| 58 | 705600107 | BRAKE PEDAL SPRING - Call your local BRP dealership |
| 59 | 503107800 | WASHER - Call your local BRP dealership |
| 60 | 293370012 | CIRCLIP - Call your local BRP dealership |
| 61 | 293300053 | O-RING - Call your local BRP dealership |
| 62 | 414115200 | Tie-Rap 180 mm |
| 63 | 705600003 | Brake Disk (Front) (7431 @ 7434) |
| 64 | 235381646 | Torx Screw M8 X 16, Scotch Grip |
| 65 | 705600033 | Brake Disk 220 mm (Rear) |
| 66 | 235381646 | Torx Screw M8 X 16, Scotch Grip |
| 67 | 515175653 | Brake Switch This part replaces 410106700. |
| 68 | 409204500 | MALE HOUSING - Call your local BRP dealership |
| 69 | 409210000 | MALE TERMINAL - Call your local BRP dealership |
| 70 | 219704425 | Tubing 6 Mm 3000Mm Long |
| 71 | 250100002 | Switch Nut |
| 72 | 570151100 | Plunger Cap |
| 73 | 409204600 | FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership |
| 74 | 561503100 | FEMALE TERMINAL - Call your local BRP dealership |
