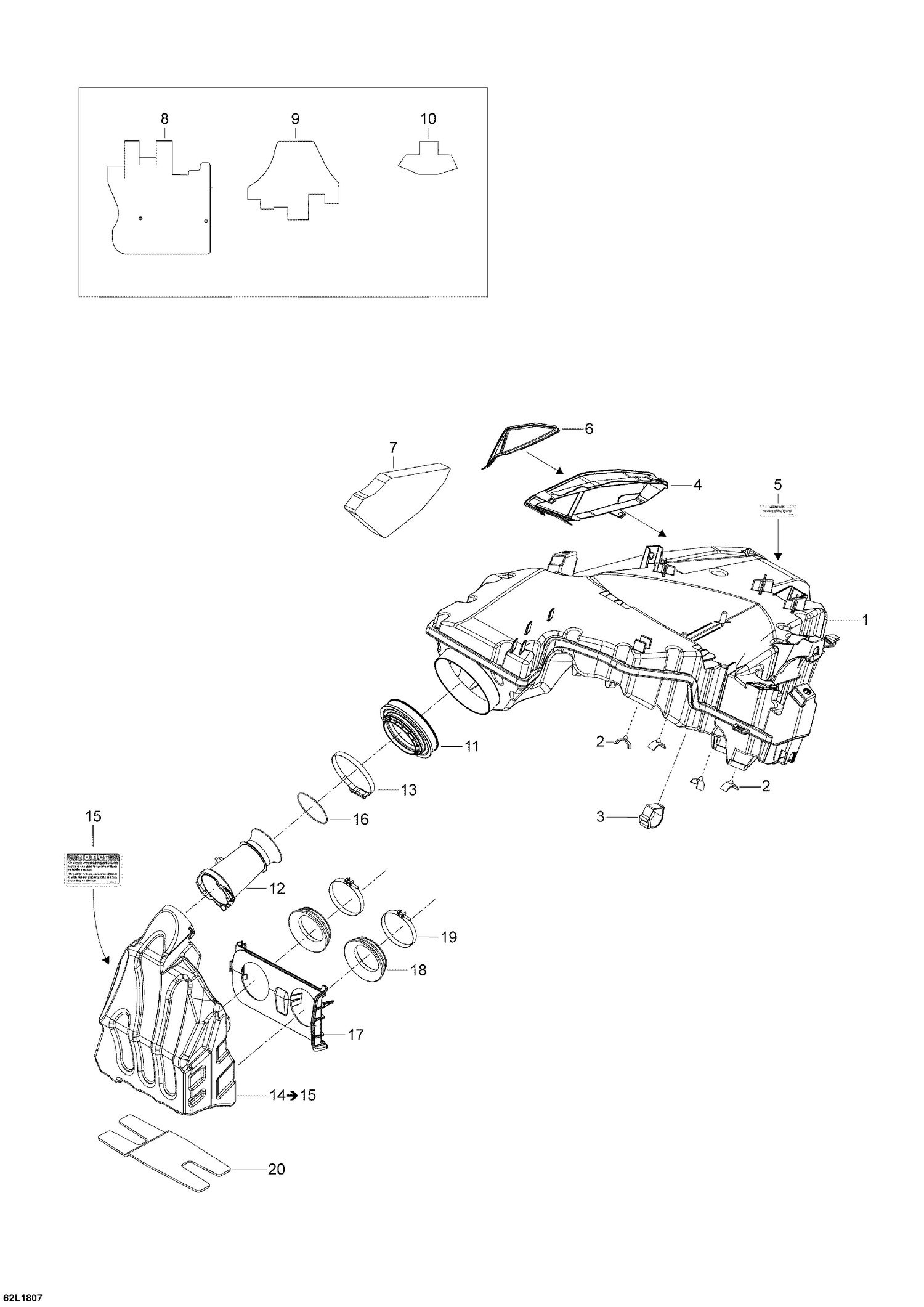

02- Air Intake E-TEC - XU
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 508000790 | Chamber Ass'y |
| 2 | 508000537 | Stopper |
| 3 | 508000820 | Velcro Strip |
| 4 | 508001020 | Adaptor This part replaces 508000756. |
| 5 | 516006903 | Hot Parts Decal |
| 6 | 508000609 | Air Filter |
| 8 | 508000675 | Heat Shield |
| 9 | 508000676 | Heat Shield |
| 10 | 508000677 | Heat Shield |
| 11 | 508000548 | Boot |
| 12 | 508000662 | Flute |
| 13 | 514052983 | Norma Gear Clamp |
| 14 | 508000660 | Primary Chamber Ass'y |
| 15 | 516005876 | Notice Decal, Air Intake Silencer |
| 16 | 293300115 | O-Ring |
| 17 | 508000613 | Plate Adapter |
| 18 | 508000614 | Air Intake Adapter |
| 19 | 508000346 | Gemi Clamp |
