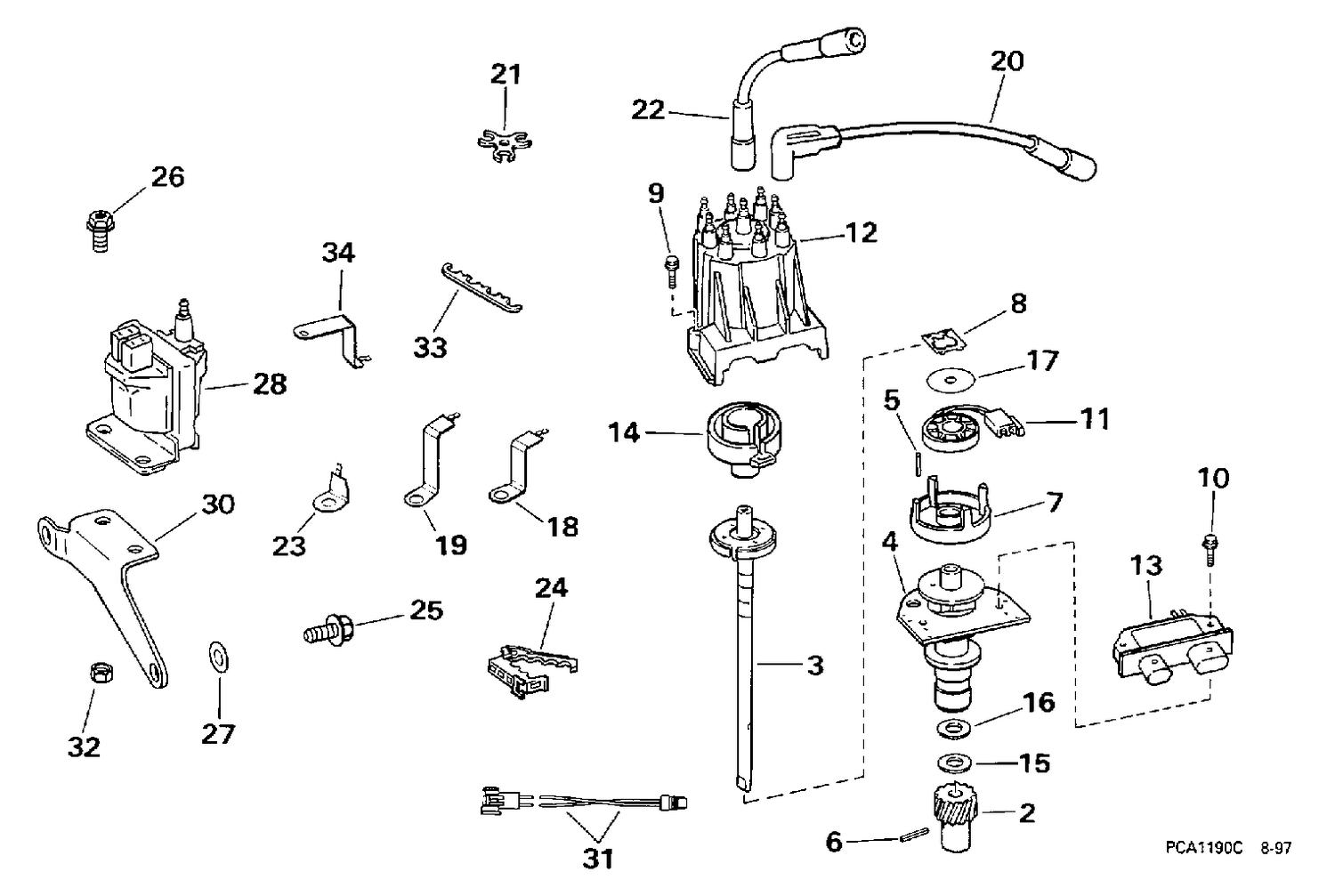

| Ref | Part Number | Description |
|---|
| 1 |
3857400 |
DISTRIBUTOR |
| 2 |
3854307 |
GEAR |
| 3 |
3855596 |
SHAFT |
| 4 |
3855597 |
HOUSING |
| 5 |
3853316 |
PIN, Locating |
| 6 |
3854306 |
PIN, Gear |
| 7 |
3854267 |
POLE PIECE |
| 8 |
3853317 |
RETAINER |
| 9 |
3853318 |
SCREW, Cap |
| 10 |
3854319 |
SCREW, Module |
| 11 |
3854001 |
COIL, Pickup |
| 12 |
3854548 |
DISTRIBUTOR CAP |
| 13 |
3854003 |
MODULE |
| 14 |
3854549 |
ROTOR |
| 15 |
3854305 |
WASHER, Distributor shaft |
| 16 |
3854304 |
WASHER, Thrust |
| 17 |
3854308 |
SHIELD, Pickup coil |
| 18 |
3856066 |
BRACKET, Spark plug leads |
| 19 |
3856067 |
BRACKET, Spark plug leads |
| 20 |
3850366 |
LEAD, Spark plug, #2 & #3 |
| 20 |
3850446 |
LEAD, Spark plug, #2 |
| 20 |
3850447 |
LEAD, Spark plug, #3 |
| 20 |
3850448 |
LEAD, Spark plug, #5 |
| 20 |
3856208 |
LEAD, Spark plug, #1 |
| 20 |
3856209 |
LEAD, Spark plug, #2 |
| 20 |
3856257 |
LEAD, Spark plug, #6 |
| 21 |
3852492 |
RETAINER, 3 wire |
| 22 |
3850406 |
LEAD, Distributor to coil |
| 23 |
3856052 |
BRACKET, Lead retainer |
| 24 |
3852619 |
RETAINER |
| 25 |
3853389 |
SCREW, Bracket to engine |
| 26 |
3857448 |
SCREW, Coil to bracket |
| 27 |
0312972 |
WASHER, Alternator brkt This part replaces 3852116. |
| 28 |
3854002 |
IGNITION COIL |
| 29 |
3853325 |
SCREW, Clamp to engine |
| 30 |
3856978 |
BRACKET, Ignition coil |
| 31 |
3854084 |
CABLE, Distributor |
| 32 |
0305496 |
LOCKNUT, Alternator to bracket This part replaces 3852051. |
| 33 |
3852491 |
RETAINER, 4 Wire |
