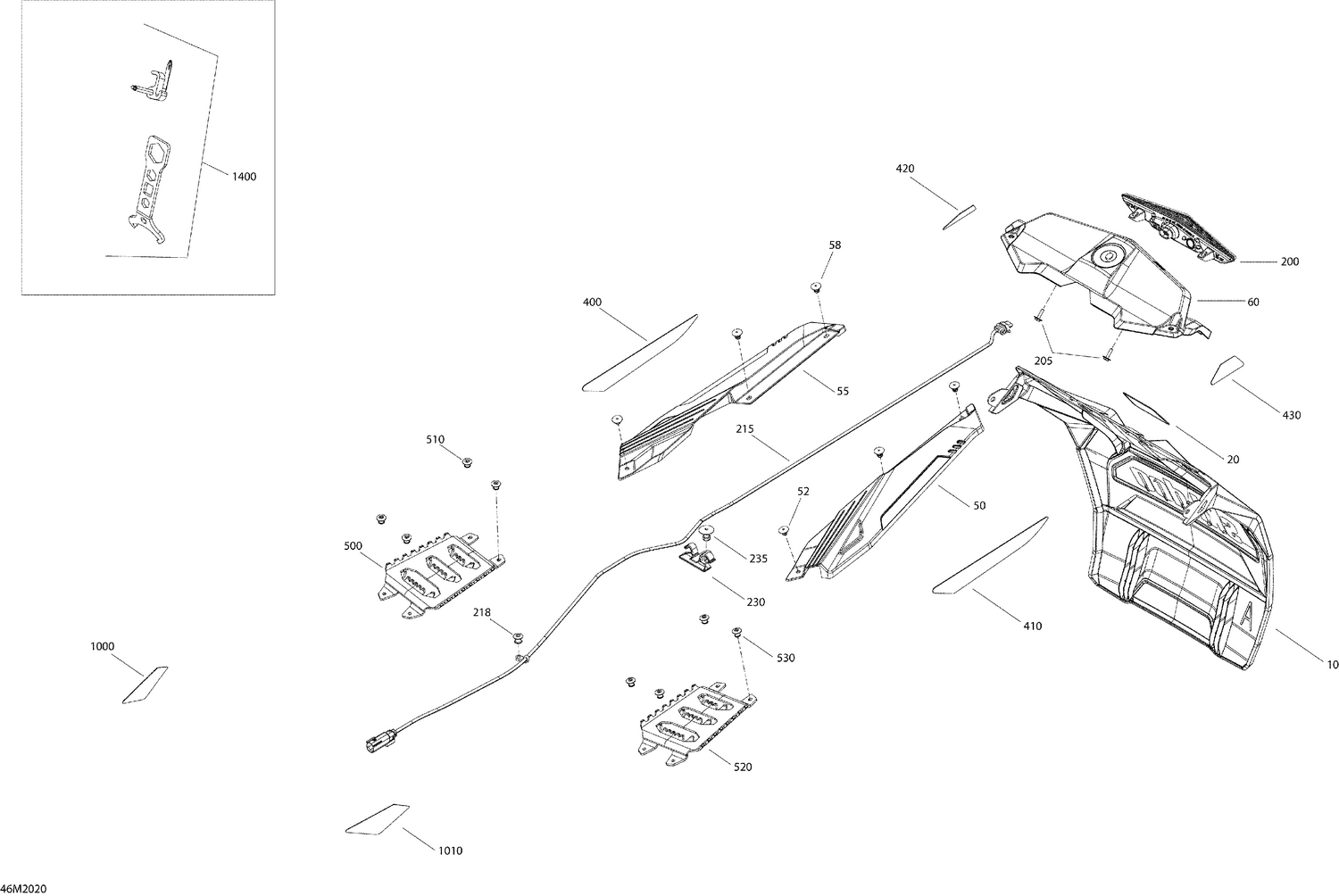

10- Utilities
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 520001640 | Snow Gard Ass'y |
| 60 | 520001487 | Light Fairing |
| 200 | 520001143 | Rear Light |
| 205 | 250000725 | Screw M4 X 16 |
| 215 | 515178404 | Taillight Wiring Harness |
| 218 | 390402200 | Pop Rivet 3/16" |
| 230 | 520001722 | Cap |
| 235 | 293150104 | Pop Rivet 3/16" |
| 400 | 520001900 | Red, RH Rear Reflector |
| 410 | 520001901 | Red, LH Rear Reflector |
| 1000 | 520002343 | RH Front Reflector This part replaces 520001493. |
| 1010 | 520002344 | LH Front Reflector This part replaces 520001494. |
