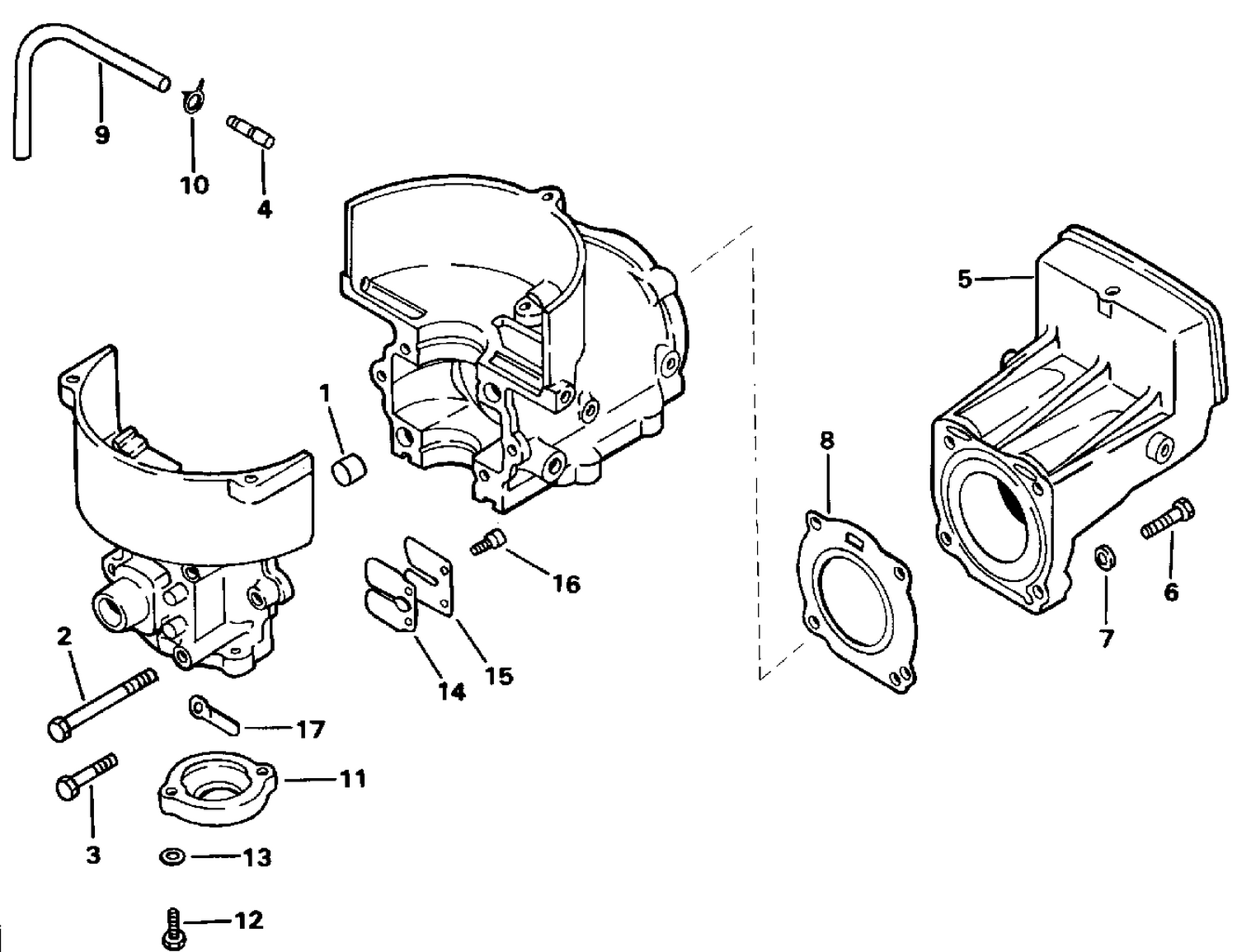

CYLINDER & CRANKCASE, REED VALVE
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 4 | 0115537 | NIPPLE, Water pump indicator |
| 5 | 0115495 | CYLINDER HEAD |
| 7 | 0115198 | SPRING WASHER, Fuel tank screw |
| 8 | 0115496 | GASKET, Cylinder had |
| 9 | 0115212 | HOSE, Water pump indicator |
| 11 | 0115502 | CRANKCASE HEAD |
| 12 | 0115497 | SCREW, Crankcase head |
| 13 | 0115198 | SPRING WASHER, Fuel tank screw |
| 14 | 0115503 | LEAF VALVE |
| 15 | 0115504 | LEAF STOP |
| 16 | 0115505 | SCREW, Leaf valve |
| 0114821 | 0114821 | CYLINDER & CRANKCASE ASSY. |
| 0115668 | 0115668 | CYLINDER & CRANKCASE ASSY., 2.0 |
