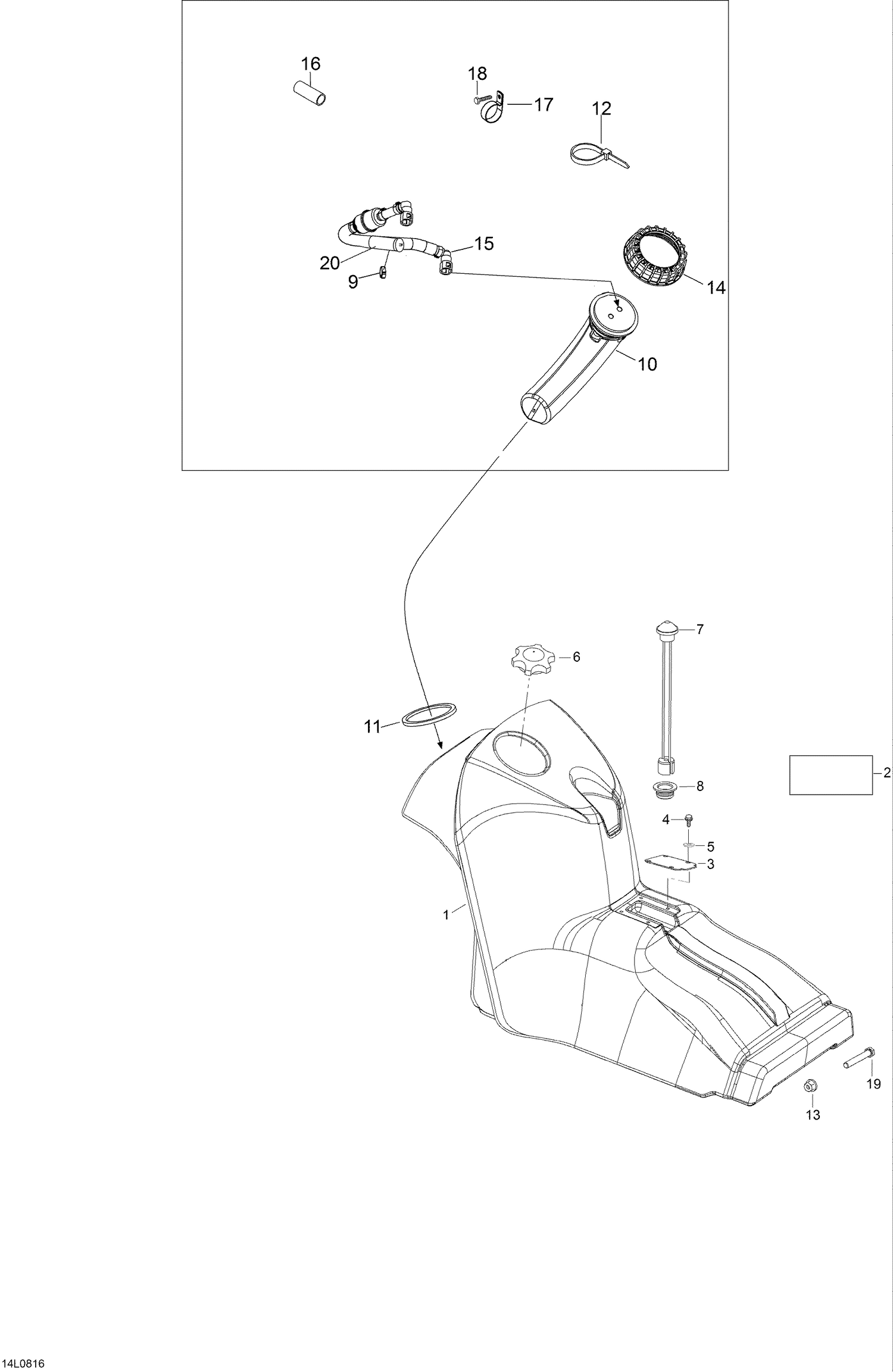

02- Fuel System
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 605254896 | Fuel tank |
| 2 | 44001 | REFLECTIVE SHEET (1M X 1M) - Call your local BRP dealership |
| 3 | 605353106 | Support plate |
| 4 | 605640014 | Socket head screw M5 x 10 |
| 5 | 20002 | Washer A5,3 |
| 6 | 709000059 | FUEL CAP - Call your local BRP dealership |
| 7 | 605354905 | Fuel gauge |
| 8 | 293720058 | Grommet |
| 9 | 414655700 | Clamp |
| 10 | 513034262 | NEEDS DESCRIPTION This part replaces 513033585. |
| 11 | 605355978 | Gasket |
| 12 | 414115200 | Tie-Rap 180 mm This part replaces 27026. |
| 13 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 14 | 513033180 | Plastic nut |
| 15 | 513033133 | Fuel filter assy |
| 16 | 27127 | Tubing |
| 17 | 513033047 | Clamp |
| 18 | 40084 | Hex, screw M6 x 45 |
| 19 | 40110 | Hex, screw M6 x 35 |
