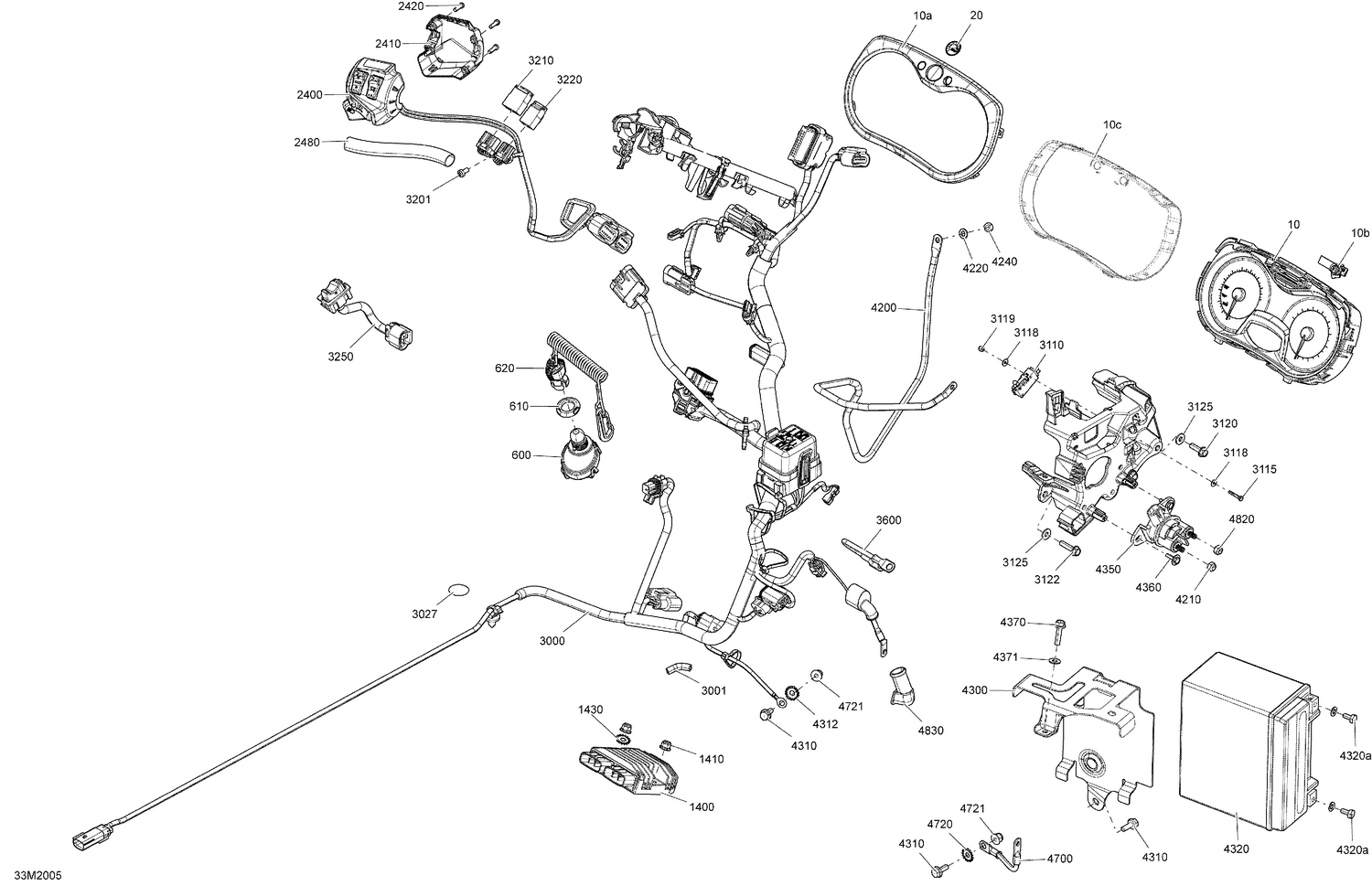

10- Electrical System
Parts (40)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 415129349 | Lens |
| 10b | 415129355 | Speedometer Button |
| 10c | 415129370 | Gauge Ring |
| 20 | 516006224 | BRP Logo 20MM x 2MM |
| 600 | 515178840 | Terminal Dess One-Wire This part replaces 515178225. |
| 610 | 278002963 | Safety Nut (DESS Switch) |
| 620 | 515178286 | Grey, RF Key Ass'y |
| 1400 | 710010539 | Voltage Regulator This part replaces 710005569. |
| 1410 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 1430 | 234461608 | External Serrated Lock Washer 6 mm |
| 2400 | 515178198 | LH Housing |
| 2410 | 515177147 | Housing Plate |
| 2420 | 250000671 | Torx Screw |
| 2480 | 219704418 | PROTECTOR TUBE 1000MM LONG - Call your local BRP dealership |
| 3027 | 518325560 | Adhesive Patch |
| 3110 | 515177460 | Switch Ass'y |
| 3115 | 207132044 | Hex Screw M3 X 20 |
| 3118 | 234032600 | Flat Washer M3, Stainless |
| 3119 | 232531423 | Elastic Stop Nut M3 |
| 3120 | 210262040 | Hex. Flange Screw M6 X 20 |
| 3122 | 210262040 | Hex. Flange Screw M6 X 20 |
| 3125 | 250200039 | Flat Washer |
| 3201 | 250000690 | Pan Screw Forming, 7500C |
| 3210 | 515175662 | Male Terminal Housing, 6 Circuits |
| 3220 | 515175846 | Male Terminal Housing, 4 Circuits |
| 3250 | 515177394 | Switch |
| 3300 | 515177646 | Fan Harness |
| 3600 | 515177014 | Ground Wire |
| 4200 | 515177427 | Battery Wire |
| 4210 | 232561414 | Elastic Stop Nut M6 |
| 4220 | 234061410 | Flat Washer 6 mm |
| 4240 | 232561414 | Elastic Stop Nut M6 |
| 4320a | 250000282 | Battery Bolt Kit |
| 4340 | 515176944 | Strap |
| 4350 | 278003012 | Starter Relay |
| 4360 | 250000725 | Screw M4 X 16 |
| 4700 | 515176943 | Ground Wire |
| 4720 | 250200041 | Lock Washer Serrated M6 |
| 4730 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 4820 | 232561414 | Elastic Stop Nut M6 |
