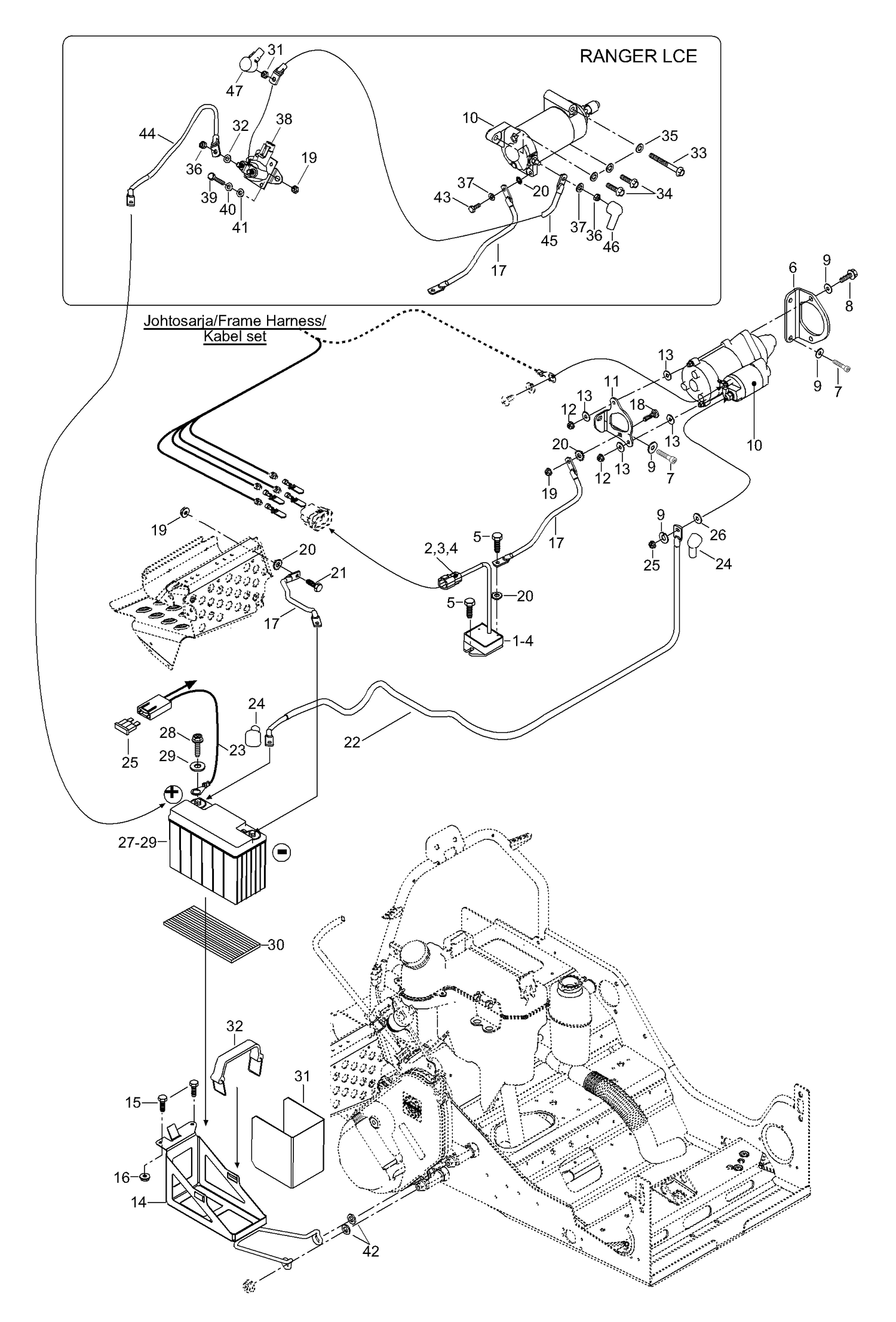

| Ref | Part Number | Description |
|---|
| 2 |
278001477 |
FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership |
| 3 |
515175568 |
Male terminal |
| 4 |
278001478 |
MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership |
| 5 |
40322 |
SELF TAPPING SCREW M6 X 16 - Call your local BRP dealership |
| 6 |
Not |
Available As Spare Part - Starter bracket, PTO-side - DOES NOT APPLY TO THIS MODEL |
| 7 |
Not |
Available As Spare Part - Allen screw M8 x 20 - DOES NOT APPLY TO THIS MODEL |
| 8 |
Not |
Available As Spare Part - Allen screw M8 x 25 - DOES NOT APPLY TO THIS MODEL |
| 9 |
Not |
Available As Spare Part - Spring washer - DOES NOT APPLY TO THIS MODEL |
| 10 |
515176133 |
Electric start This part replaces 515176003. |
| 11 |
Not |
Available As Spare Part - Starter bracket, MAG-side - DOES NOT APPLY TO THIS MODEL |
| 12 |
Not |
Available As Spare Part - Nut elastic M5 - DOES NOT APPLY TO THIS MODEL |
| 13 |
Not |
Available As Spare Part - Washer - DOES NOT APPLY TO THIS MODEL |
| 14 |
515175848 |
Battery support |
| 15 |
40247 |
Screw M5 x 16 |
| 16 |
233251434 |
Flanged Elastic Nut M5 This part replaces 33062. |
| 17 |
515175483 |
GROUND WIRE - Call your local BRP dealership |
| 18 |
Not |
Available As Spare Part - Locking screw M6 x 20 - DOES NOT APPLY TO THIS MODEL |
| 19 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 20 |
20017 |
Washer |
| 21 |
40029 |
Screw M6 x 16 |
| 22 |
Not |
Available As Spare Part - Battery wire - DOES NOT APPLY TO THIS MODEL |
| 23 |
5446894 |
Wire, fuse-battery |
| 24 |
570151000 |
Cap protection |
| 25 |
Not |
Available As Spare Part - Nut M8 - DOES NOT APPLY TO THIS MODEL |
| 26 |
Not |
Available As Spare Part - Washer - DOES NOT APPLY TO THIS MODEL |
| 28 |
207161644 |
Screw M6 x 16 |
| 29 |
391302100 |
FLAT WASHER - Call your local BRP dealership |
| 30 |
5347314 |
Rubber blanket |
| 31 |
515175643 |
DEFLECTOR - Call your local BRP dealership |
| 32 |
515176044 |
Retainer strap This part replaces 515175475. |
| 33 |
207587544 |
Hex. Flange Screw M8 X 75, Scotch Grip |
| 34 |
207583044 |
Hex. Flange Screw M8 X 30, Scotch Grip |
| 35 |
250200008 |
Flat Washer With Teflon 8 mm |
| 36 |
33010 |
Lock Nut M6 (1=10Pcs) |
| 37 |
20003 |
Washer |
| 38 |
278003012 |
Starter Relay This part replaces 278001766. |
| 39 |
40030 |
Screw M6 x 20 |
| 40 |
20052 |
Spring washer |
| 41 |
234062410 |
Flat Washer 6 mm This part replaces 20009. |
| 42 |
20005 |
WASHER M10 - Call your local BRP dealership |
| 43 |
207361644 |
Screw M6 x 16 |
| 44 |
515175555 |
Battery wire |
| 45 |
5448151 |
Battery wire, relay->starter |
| 46 |
278000020 |
PROTECTION CAP - Call your local BRP dealership |
