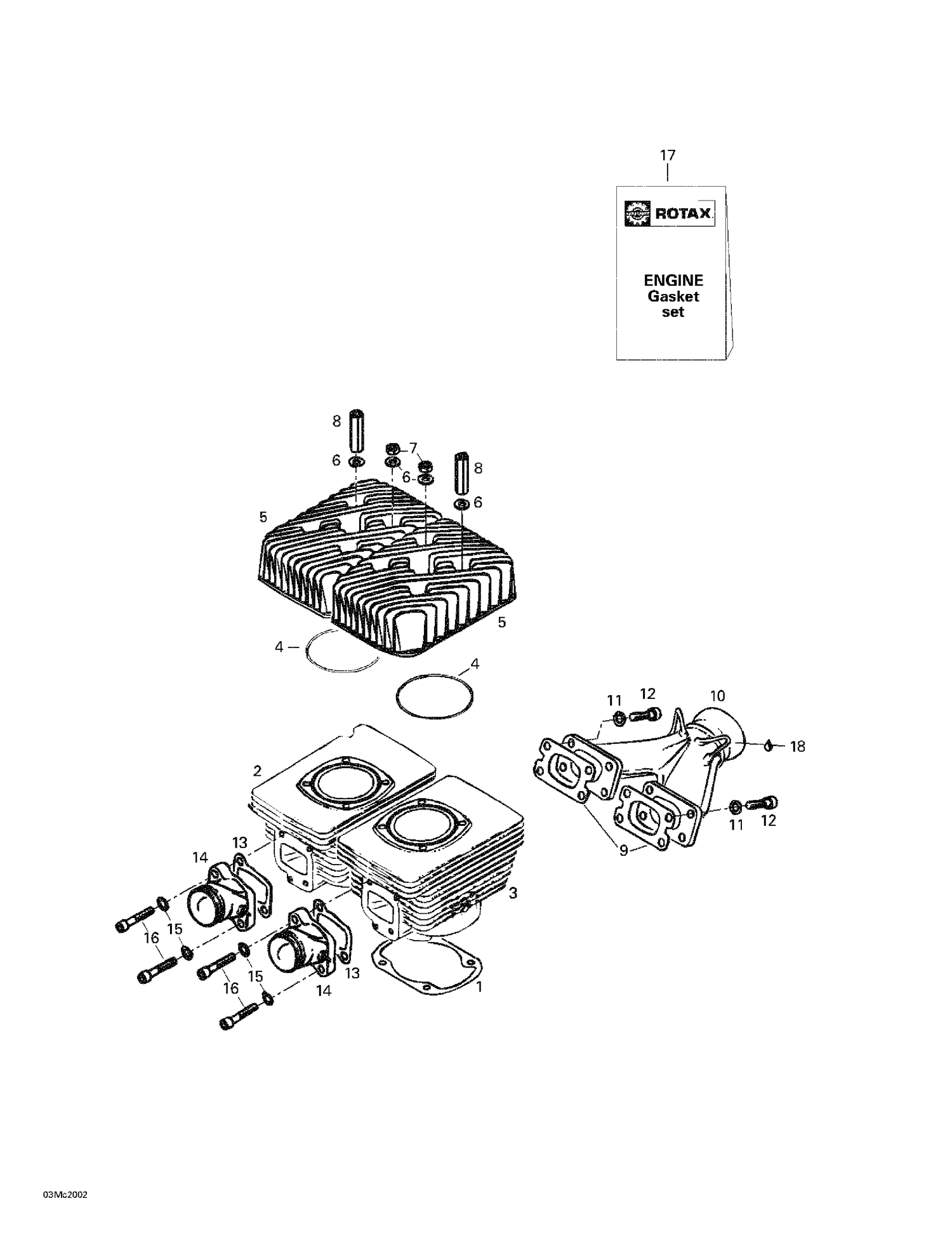

| Ref | Part Number | Description |
|---|
| 1 |
420931782 |
GASKET 0.6 - Call your local BRP dealership |
| 2 |
420923790 |
PTO Side Cylinder |
| 3 |
420923795 |
Mag Side Cylinder |
| 4 |
420931380 |
O-Ring |
| 5 |
420923375 |
Cylinder Head |
| 6 |
420250315 |
Flat Washer 8.4 mm This part replaces 420250311. |
| 7 |
232081414 |
Hex. Nut M8 |
| 8 |
420842208 |
DISTANCE NUT M8 X 51 - Call your local BRP dealership |
| 9 |
420850114 |
GASKET - Call your local BRP dealership |
| 10 |
420978437 |
Exhaust Manifold Ass'y |
| 11 |
234181401 |
Lock Washer 8 mm |
| 12 |
205083044 |
Socket Head Screw M8 X 30 |
| 13 |
420831867 |
INTAKE GASKET 1.0 MM - Call your local BRP dealership |
| 14 |
420867408 |
INTAKE SOCKET ASS?Y - Call your local BRP dealership |
| 15 |
420945832 |
Washer-Lock Din.128 This part replaces 420945752. |
| 16 |
420841591 |
Screw M8 X 35 |
| 17 |
420994232 |
GASKET SET, ENGINE - Call your local BRP dealership |
