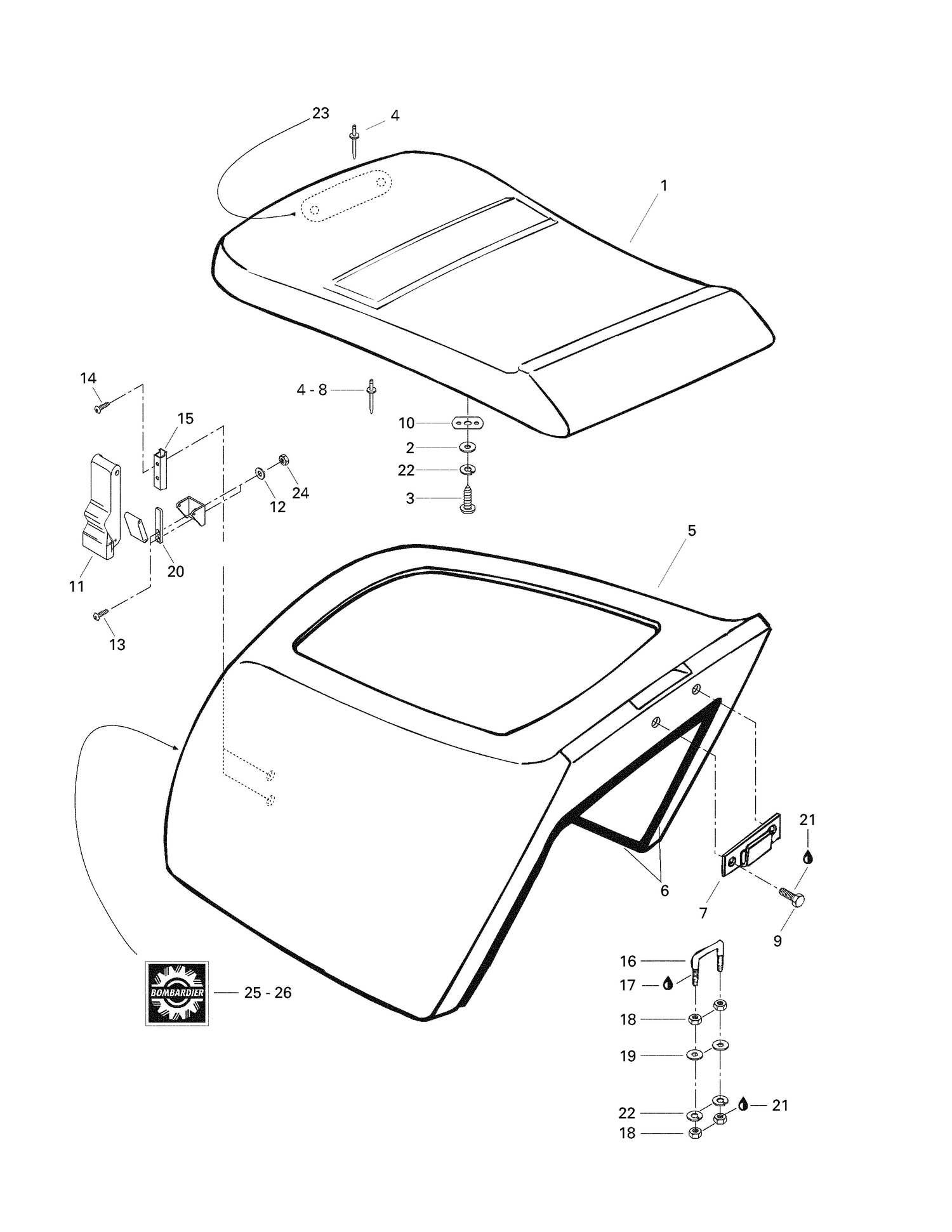

09- Engine Cover And Seat
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 269000177 | Seat Driver(Incl. It. 4,8,10,23) |
| 2 | 234062600 | Flat Washer M6, Stainless This part replaces 213200007. |
| 3 | 216663260 | Screw 6.3 x 32 |
| 4 | 293150023 | RIVET_POP 1/8 X ,625 - Call your local BRP dealership |
| 6 | 219704368 | Seal Tray 1000Mm Long |
| 7 | 291000174 | Base Keeper |
| 8 | 204000080 | Rivet 3/32" |
| 9 | 207162060 | Hex. Forming Screw M6 X 20 This part replaces 210000004. |
| 10 | 204000065 | Spring Nut M5 |
| 11 | 269000124 | Seat Latch |
| 12 | 234051600 | Flat Washer M5, Stainless This part replaces 213200004. |
| 13 | 216152560 | Screw M5 x 25 |
| 14 | 215851068 | Screw M5 x 10 |
| 15 | 269000146 | Support |
| 16 | 291000545 | Hook |
| 17 | 293800005 | Loctite 271, 10 ml |
| 18 | 232061600 | Hex. Nut M6 This part replaces 212100004. |
| 19 | 234061600 | Stainless Flat Washer M6 This part replaces 213200001. |
| 20 | 269000145 | Guide |
| 21 | 293800060 | Loctite 243, 10 ml This part replaces 293800015. |
| 22 | 234161601 | Lock Washer Helical M6 This part replaces 217361500. |
| 23 | 269000249 | Handle |
| 24 | 232551600 | Hex. Elastic Nut M5 This part replaces 212000004. |
| 25 | 219900361 | Logo Bombardier |
| 269000103 | Seat | Foam 269000103 |
| 269000195 | Seat | Cover 269000195 |
