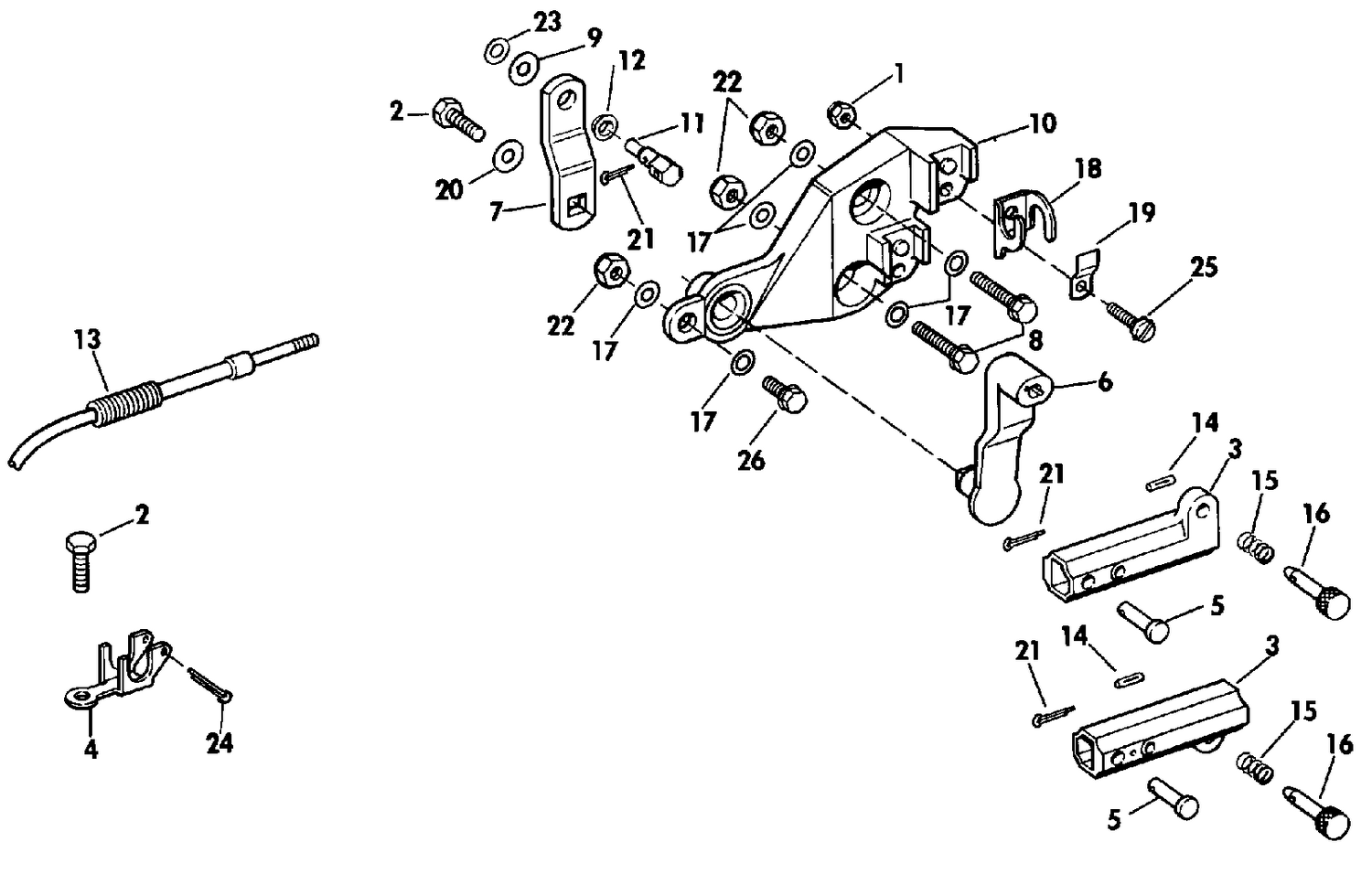

| Ref | Part Number | Description |
|---|
| 2 |
0122147 |
VIS, connecteur |
| 4 |
0124915 |
ANCHOR, Throt. cable trunnion |
| 6 |
0124918 |
THROTTLE ARM, Outer |
| 7 |
0124914 |
THROTTLE ARM, Inner |
| 9 |
0309750 |
RONDELLE, ressort - Tige soupape d'échappement |
| 10 |
0123688 |
BRACKET |
| 11 |
0124916 |
CONNECTOR, Throttle cable to throttle arm assy. |
| 12 |
0325298 |
BUSHING, Connector to throttle arm assy. |
| 13 |
0173725 |
THROTTLE CABLE ASSEMBLY |
| 22 |
3852420 |
LOCKNUT, Throttle lever This part replaces 0900402. |
| 24 |
0306498 |
COTTER PIN, Throttle cable bracket |
| 25 |
0308754 |
SCREW |
| 0174380 |
0431840 |
ADAPTER KIT This part replaces 0174380. |
