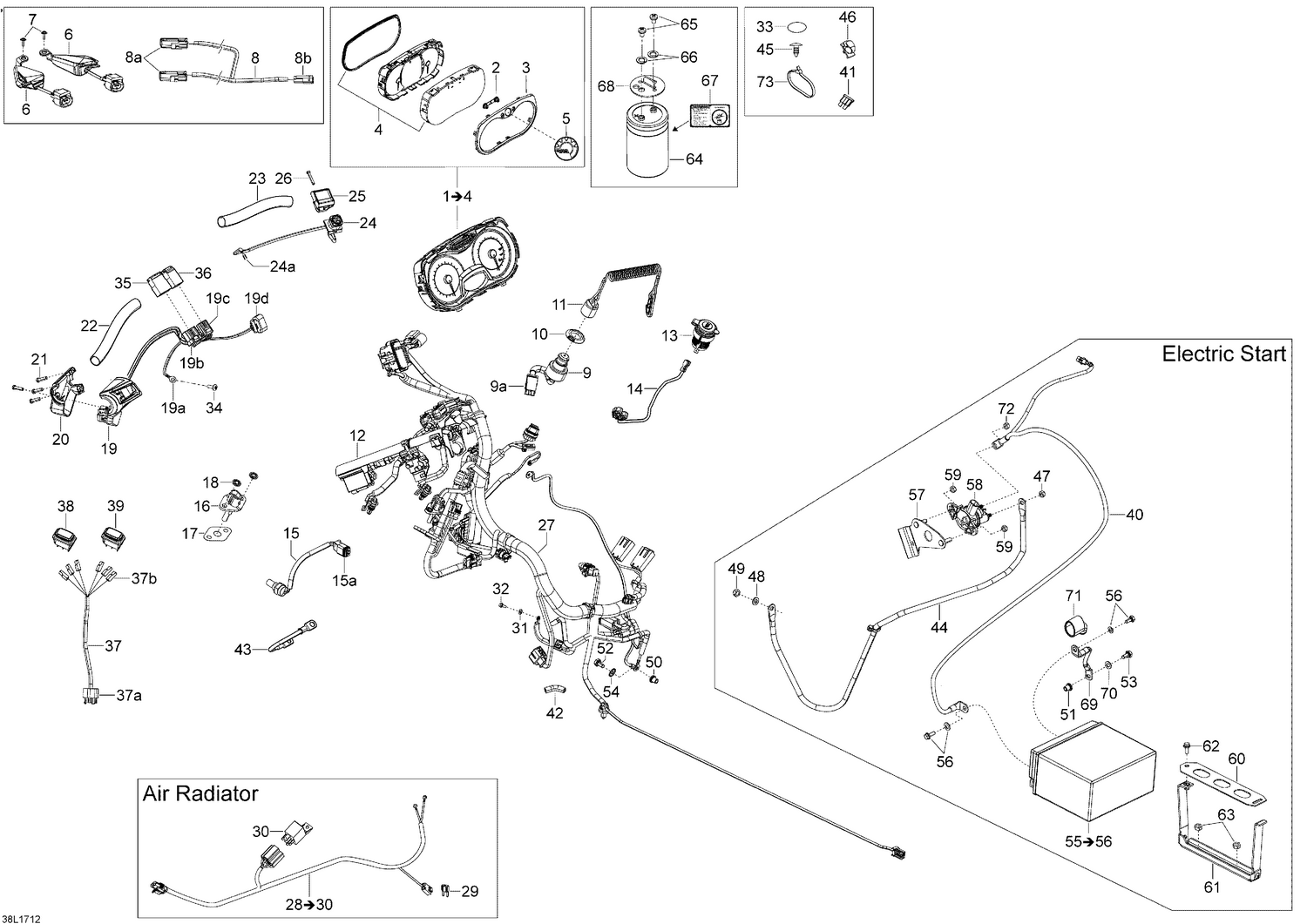

| Ref | Part Number | Description |
|---|
| 2 |
415129355 |
Speedometer Button |
| 3 |
415129370 |
Gauge Ring |
| 4 |
415129349 |
Lens |
| 5 |
516006224 |
BRP Logo |
| 6 |
515177580 |
RH Signature Light |
| 6 |
515177581 |
LH Signature Light |
| 7 |
250000759 |
Torx Truss Pt K40 X 16 |
| 8 |
515177632 |
Signature Light Harness |
| 8a |
710001153 |
Seal Wire |
| 8a |
Not |
Available As Spare Part - Male Housing, 2 Circuits |
| 8b |
515175232 |
Male Terminal |
| 8b |
515175654 |
Male Housing, 2 Circuits |
| 9 |
515178840 |
Terminal Dess One-Wire This part replaces 515178225. |
| 9a |
515175232 |
Male Terminal |
| 9a |
515175494 |
Male Housing, 3 Circuits |
| 10 |
278002963 |
Safety Nut (DESS Switch) |
| 11 |
515178044 |
DESS Cap |
| 12 |
515177134 |
Plate |
| 13 |
710001248 |
DC Power Outlet |
| 14 |
515177400 |
Harness |
| 15 |
420664509 |
Temperature Senor This part replaces 515177813. |
| 15a |
278000632 |
Female Terminal |
| 15a |
278001661 |
FEMALE TERMINAL - Call your local BRP dealership |
| 15a |
293000052 |
Sealing Cap |
| 15a |
515175670 |
Female Housing, 2 Circuits |
| 15a |
515175675 |
Female Lock |
| 16 |
515176366 |
Air Temperature Sensor |
| 17 |
508000769 |
Ring |
| 18 |
389804300 |
Push Nut |
| 19 |
515178305 |
Housing |
| 19a |
515175504 |
Ring Terminal |
| 19b |
515175231 |
Female Terminal |
| 19b |
515175543 |
Female Housing, 6 Circuits |
| 19c |
515175231 |
Female Terminal |
| 19c |
515175845 |
Female Housing, 4 Circuits |
| 19d |
710001930 |
Female Housing, 12 Circuits |
| 20 |
515177149 |
Housing Plate |
| 21 |
250000671 |
Torx Screw |
| 22 |
415129879 |
Protector Tube |
| 23 |
415129879 |
Protector Tube |
| 24 |
515177362 |
Kill Switch |
| 24a |
515175232 |
Male Terminal |
| 25 |
515177310 |
Emergency Stop Switch Support |
| 26 |
250000263 |
Torx Screw #8-18 |
| 27 |
515177985 |
Main Harness |
| 29 |
278001197 |
Fuse 10A |
| 30 |
Not |
Available As Spare Part - Relay |
| 31 |
234141601 |
Lock Washer 4 mm |
| 32 |
250000741 |
Screw-Torx Button Head M4 X 8 |
| 33 |
518325560 |
Adhesive Patch |
| 34 |
250000690 |
Forming Screw M5 x 10 |
| 35 |
515175232 |
Male Terminal |
| 35 |
515175662 |
Male Housing, 6 Cirsuits |
| 36 |
515175232 |
Male Terminal |
| 36 |
515175846 |
Male Housing, 4 Circuits |
| 37 |
515177495 |
Warmer Harness |
| 37a |
710001928 |
Female Housing, 8 Circuits |
| 37b |
710002398 |
Female Housing, 1 Circuit |
| 37b |
710002399 |
Female Terminal |
| 38 |
515177497 |
Hand Warmer Rocker Switch |
| 39 |
515177498 |
Thumb Warmer Rocker Switch |
| 42 |
520001525 |
Trim |
| 43 |
515177289 |
Ground Wire |
| 45 |
414644300 |
Black, Dart |
| 50 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 52 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 54 |
250200041 |
Serrated Lock Washer |
| 64 |
515177272 |
Capacitor |
| 65 |
250000462 |
Socket Head Screw M10 x 32 |
| 66 |
250200026 |
Lock Washer |
| 67 |
516006206 |
Capacitor Decal |
| 68 |
515177193 |
Cap |
| 73 |
293750001 |
Tie-Rap 94 mm |
| 73 |
293750008 |
Tie-Rap 368 mm |
| 73 |
414115200 |
Tie-Rap 180 mm |
| 73 |
605627000 |
Tie Rap |
