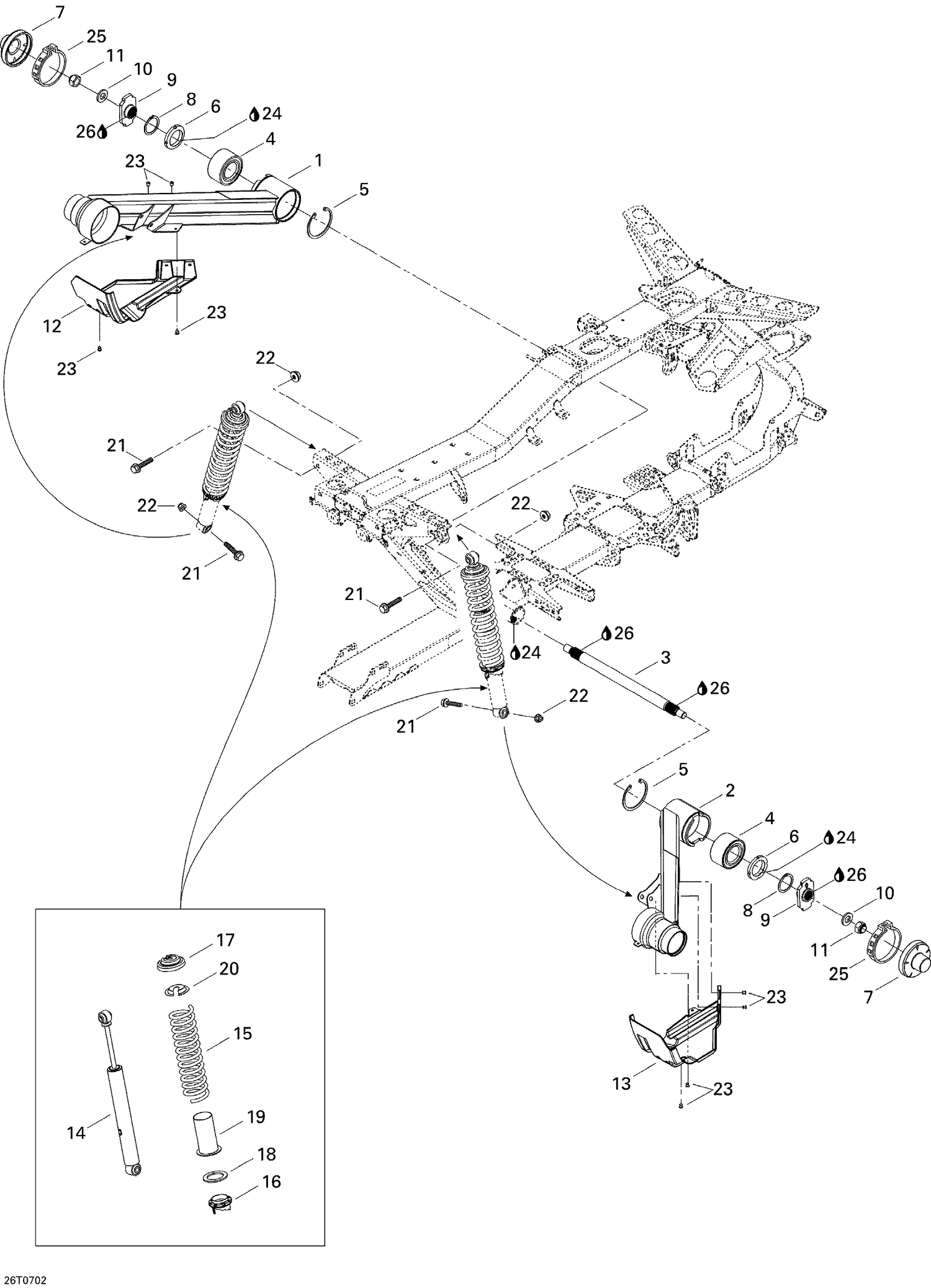

| Ref | Part Number | Description |
|---|
| 1 |
706001185 |
LH SWING ARM - Call your local BRP dealership This part replaces 706000496. |
| 2 |
706003425 |
Rh Swing Arm This part replaces 706000498. |
| 3 |
706001077 |
Sway Bar This part replaces 706000450. |
| 4 |
293350037 |
Ball Bearing |
| 5 |
293370041 |
Circlip |
| 6 |
706000221 |
Nut |
| 7 |
706000749 |
Cover This part replaces 706000222. |
| 8 |
293370027 |
Circlip 45 mm |
| 9 |
706000548 |
Lever This part replaces 706000224. |
| 10 |
250200045 |
Washer |
| 11 |
232591414 |
Elastic Stop Nut M18 |
| 12 |
706000333 |
LH PROTECTOR - Call your local BRP dealership |
| 13 |
706000334 |
RH PROTECTOR - Call your local BRP dealership |
| 14 |
706000391 |
Rear Shock |
| 15 |
706000289 |
REAR SPRING, BLACK - Call your local BRP dealership |
| 16 |
706002356 |
Adjuster Ring This part replaces 706000294. |
| 17 |
706200881 |
Spring Stopper This part replaces 503140600. |
| 18 |
706000533 |
SPRING SEAT - Call your local BRP dealership This part replaces 706000335. |
| 19 |
503139800 |
PROTECTOR - Call your local BRP dealership |
| 20 |
706200785 |
Cap This part replaces 503141600. |
| 21 |
207605544 |
Hex. Flange Screw M10 X 55 |
| 22 |
233201414 |
Hex. Flange Elastic Nut M10 |
| 23 |
293150104 |
Pop Rivet 3/16" |
| 24 |
293800060 |
Loctite 243, 10 ml |
| 25 |
293650162 |
Oetiker Clamp |
