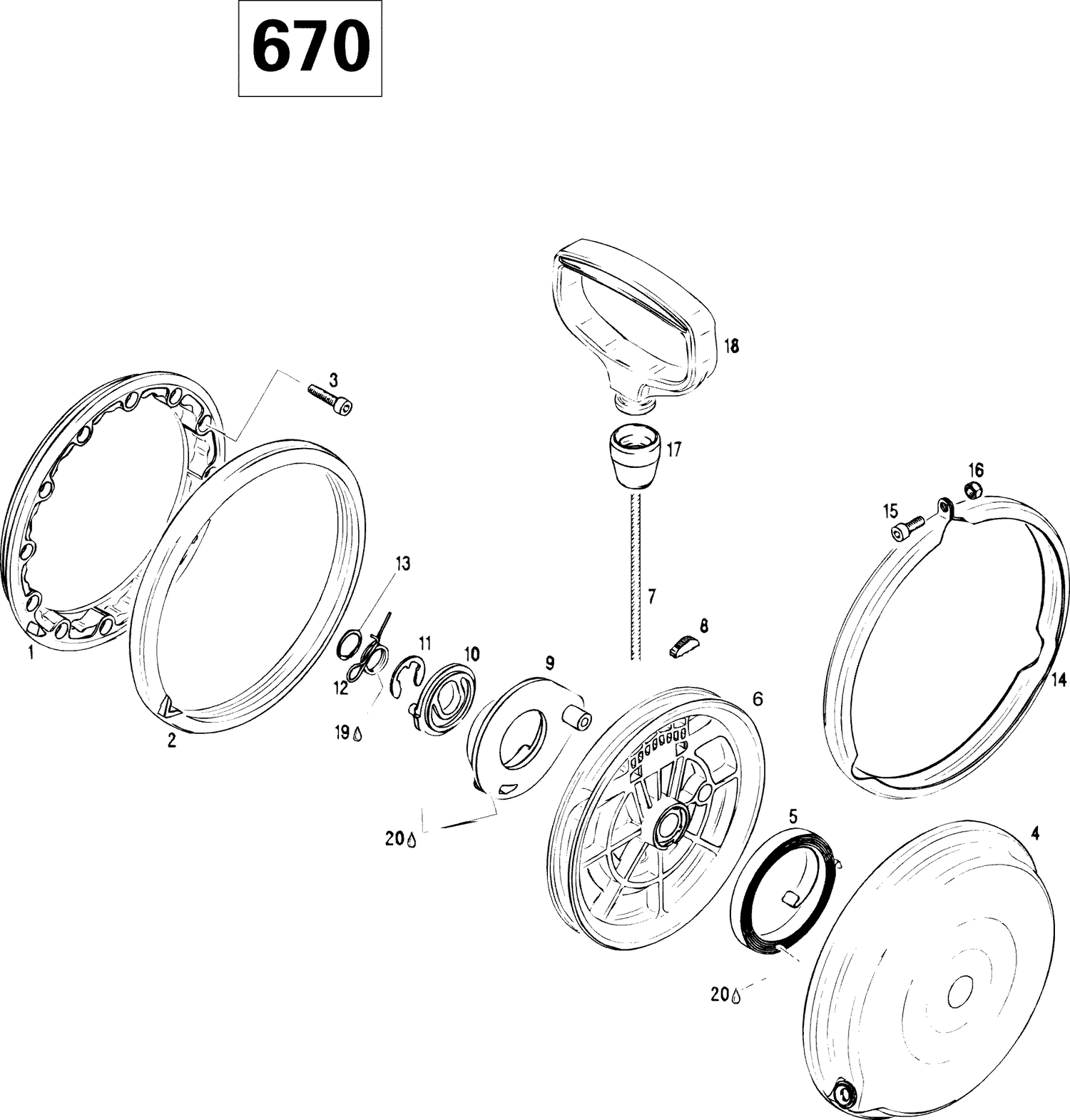

| Ref | Part Number | Description |
|---|
| 1 |
420810860 |
Connecting Flange |
| 2 |
420860950 |
DAMPER RING - Call your local BRP dealership |
| 3 |
205062544 |
Socket Head Screw M6 X 25 This part replaces 222962565. |
| 4 |
420887448 |
Demarreur *Rewind Starter This part replaces 420810875. |
| 5 |
420939115 |
Rewind Spring |
| 6 |
420852284 |
ROPE SHEAVE - Call your local BRP dealership |
| 7 |
219704403 |
Was 412500100 Rope-Starter |
| 8 |
420852070 |
Key Clamp |
| 9 |
420852296 |
Pawl This part replaces 420852294. |
| 10 |
420852301 |
PAWL LOCK - Call your local BRP dealership |
| 11 |
420845300 |
CIRCLIP - Call your local BRP dealership |
| 12 |
420938986 |
Pawl Spring This part replaces 420938985. |
| 13 |
420945770 |
LOCK RING - Call your local BRP dealership |
| 14 |
420851330 |
Clamp |
| 15 |
420241237 |
Socket Head Screw M6 x 16 This part replaces 420241236. |
| 16 |
232561434 |
Elastic Stop Nut M6 This part replaces 228561045. |
| 17 |
420960415 |
Rubber Buffer |
| 18 |
420852176 |
Starter Handle |
| 19 |
Not |
Available As Spare Part - Molykote G-n Paste(Dow Corning, 88162-74) |
