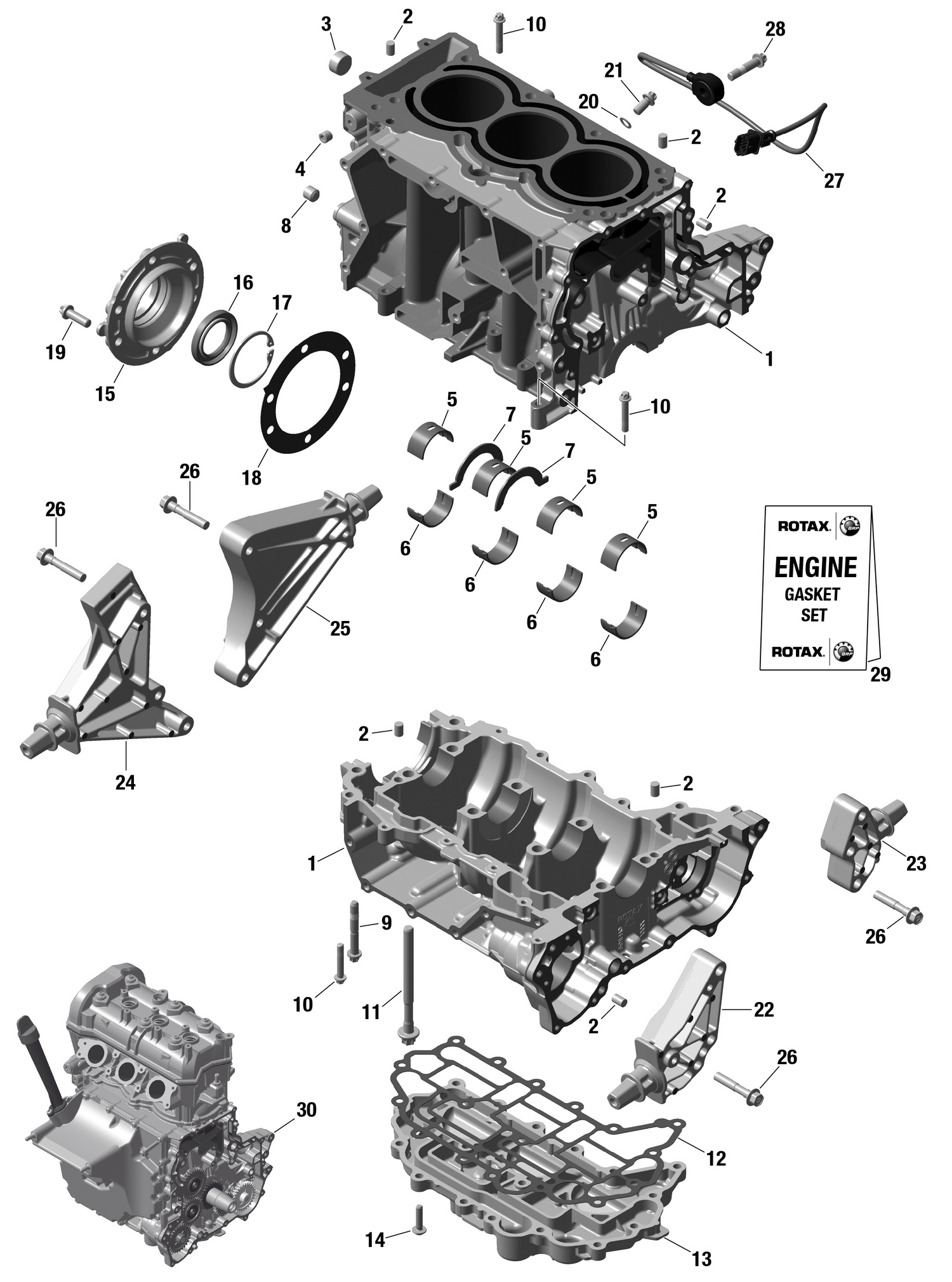

01- ROTAX - Crankcase
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420632010 | Center Pin 8 X 12 |
| 3 | 420641317 | Plug Screw M20 X 1.5 |
| 4 | 420641323 | Plug Screw M10 X 1 |
| 5 | 420933180 | Cushion |
| 6 | 420933185 | Cushion |
| 7 | 420933140 | Ring Half |
| 8 | 420840508 | Threaded Pin |
| 9 | 420641213 | Torx Flange Screw M8 X 55 |
| 10 | 420641258 | Torx Flange Screw M6 X 35 |
| 11 | 420940945 | Torx Flange Screw M9 X 113 |
| 13 | 420912381 | Oil Sump |
| 14 | 420841548 | Torx Flange Screw M6 X 25 |
| 16 | 420850220 | Oil Seal |
| 17 | 420945820 | Retaining Ring |
| 19 | 420641248 | Torx Flange Screw M8 X 25 |
| 21 | 420441653 | Torx Flange Screw M8 X 16 |
| 22 | 420911770 | Front Engine Bracket, Intake |
| 23 | 420911775 | Front Engine Bracket, Exhaust |
| 24 | 420911780 | Rear Engine Bracket, Intake |
| 25 | 420911785 | Rear Engine Bracket, Exhaust |
| 26 | 420641208 | Hex. Flange Screw M8 X 45 |
| 27 | 420664031 | Noise Sensor |
| 28 | 420641188 | Torx Flange Screw M8 X 35 |
| 29 | 420686238 | Gasket Set |
