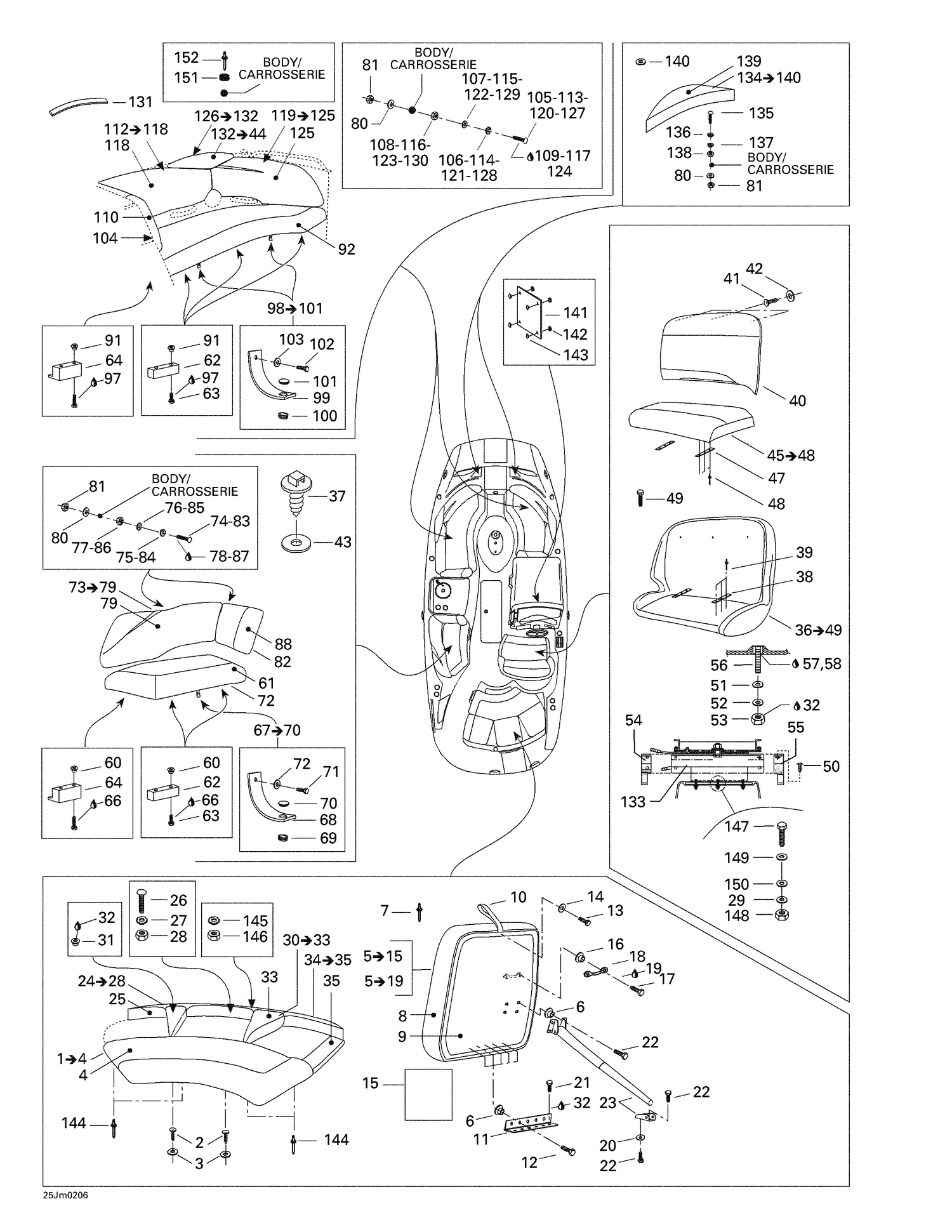

| Ref | Part Number | Description |
|---|
| 2 |
293730014 |
Black Dart |
| 3 |
234062600 |
Flat Washer M6, Stainless |
| 4 |
204611351 |
Cushion Cover |
| 6 |
204100021 |
TEE-NUT 1/4?- 20 - Call your local BRP dealership |
| 7 |
293150043 |
Pop Rivet 3/16" |
| 8 |
204611353 |
Backrest Cover (LH) |
| 9 |
204611088 |
Backrest Cover (Back) (LH) |
| 10 |
204611235 |
Strap (Meter) |
| 11 |
204610750 |
BACKREST HINGE - Call your local BRP dealership |
| 12 |
204100035 |
SOCKET HEAD SCREW 1/4? X 3/4? - Call your local BRP dealership |
| 13 |
204100054 |
SCREW 8 X 3/4? - Call your local BRP dealership |
| 14 |
234042600 |
Flat Washer 4 mm, Stainless |
| 15 |
204611354 |
Hinge Cover |
| 16 |
204100044 |
TEE-NUT #10-32 - Call your local BRP dealership |
| 17 |
204100045 |
SOCKET HEAD SCREW 10-32 X .75 - Call your local BRP dealership |
| 18 |
204610988 |
Chain Pad |
| 19 |
293800060 |
Loctite 243, 10 ml |
| 20 |
234062600 |
Flat Washer M6, Stainless |
| 21 |
204100036 |
SOCKET HEAD SCREW 1/4? X 1-1/4? - Call your local BRP dealership |
| 22 |
204100037 |
SOCKET HEAD SCREW 1/4? X 1? - Call your local BRP dealership |
| 23 |
204610749 |
Locking Support |
| 25 |
204611343 |
Cushion Cover |
| 26 |
204000130 |
Elevator Bolt |
| 27 |
234461608 |
External Serrated Lock Washer 6 mm |
| 28 |
211100026 |
HEX. NUT 1/4 - Call your local BRP dealership |
| 29 |
234181601 |
Lock Washer 8 mm, Stainless |
| 31 |
204100021 |
TEE-NUT 1/4?- 20 - Call your local BRP dealership |
| 32 |
293800060 |
Loctite 243, 10 ml |
| 33 |
204611360 |
Pad Cover (RH) |
| 35 |
204610766 |
Pad Cover |
| 37 |
293730021 |
Dart |
| 38 |
293740007 |
Velcro Strip |
| 39 |
293150065 |
RIVET - Call your local BRP dealership |
| 40 |
204611666 |
Backrest Ass'y |
| 41 |
293730014 |
Black Dart |
| 42 |
234062600 |
Flat Washer M6, Stainless |
| 43 |
204100040 |
Nylon Washer 5/16” |
| 44 |
204611377 |
Headrest Curtain |
| 46 |
Not |
Available As Spare Part - Cushion Cover |
| 47 |
293740004 |
VELCRO STRIP - Call your local BRP dealership |
| 48 |
293150008 |
Pop Rivet 3/16" |
| 49 |
209943260 |
Phillips Tapping Screw M4.2 X 32 |
| 50 |
293730006 |
Black, Dart |
| 51 |
211200019 |
FLAT WASHER - Call your local BRP dealership |
| 52 |
211200025 |
Lock Washer 1/4” |
| 53 |
212000005 |
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership |
| 54 |
204610375 |
Front Protector |
| 55 |
204610376 |
Rear Protector |
| 56 |
204100077 |
THREADED STUD 1/4-20 X 1-1/4 - Call your local BRP dealership |
| 57 |
293800005 |
Loctite 271, 10 ml |
| 58 |
219704458 |
Was 293800041 Loctite Primer 7649 |
| 59 |
204611344 |
Cushion Ass'y |
| 60 |
204100021 |
TEE-NUT 1/4?- 20 - Call your local BRP dealership |
| 61 |
204611345 |
Cushion Cover |
| 62 |
204611805 |
LATCH - Call your local BRP dealership |
| 63 |
209943260 |
Phillips Tapping Screw M4.2 X 32 |
| 64 |
204611940 |
SEAT LATCH - Call your local BRP dealership |
| 65 |
Not |
Available As Spare Part - Screw 1/4 x 2" |
| 66 |
293800060 |
Loctite 243, 10 ml |
| 68 |
204611235 |
Strap (Meter) |
| 69 |
204000083 |
SNAP BASE - Call your local BRP dealership |
| 70 |
204000085 |
SNAP COVER - Call your local BRP dealership |
| 71 |
204100054 |
SCREW 8 X 3/4? - Call your local BRP dealership |
| 72 |
211200667 |
Flat Washer 1/4" |
| 74 |
204000130 |
Elevator Bolt |
| 75 |
211200054 |
EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership |
| 76 |
234461608 |
External Serrated Lock Washer 6 mm |
| 77 |
204100060 |
Hex. Jam Nut |
| 78 |
293800060 |
Loctite 243, 10 ml |
| 79 |
204611364 |
Cushion Cover |
| 80 |
204100139 |
WASHER-FENDER/S.S. - Call your local BRP dealership This part replaces 204100006. |
| 81 |
211100026 |
HEX. NUT 1/4 - Call your local BRP dealership |
| 82 |
295501053 |
Backrest Ass'y |
| 83 |
204000130 |
Elevator Bolt |
| 84 |
211200054 |
EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership |
| 85 |
234461608 |
External Serrated Lock Washer 6 mm |
| 86 |
204100060 |
Hex. Jam Nut |
| 87 |
293800060 |
Loctite 243, 10 ml |
| 88 |
204611366 |
Pad Cover |
| 89 |
Not |
Available As Spare Part - Islandia Logo |
| 90 |
Not |
Available As Spare Part - Cushion Ass'y RH |
| 91 |
204100021 |
TEE-NUT 1/4?- 20 - Call your local BRP dealership |
| 92 |
204611347 |
Cushion Cover RH |
| 93 |
Not |
Available As Spare Part - Seat Catch base (Front) |
| 94 |
Not |
Available As Spare Part - Screw 1/4 x 1 1/4" |
| 95 |
Not |
Available As Spare Part - Seat Catch Base (Rear) |
| 96 |
Not |
Available As Spare Part - Screw 1/4 x 2" |
| 97 |
293800060 |
Loctite 243, 10 ml |
| 99 |
204611235 |
Strap (Meter) |
| 100 |
204000083 |
SNAP BASE - Call your local BRP dealership |
| 101 |
204000085 |
SNAP COVER - Call your local BRP dealership |
| 102 |
204100054 |
SCREW 8 X 3/4? - Call your local BRP dealership |
| 103 |
211200019 |
FLAT WASHER - Call your local BRP dealership |
| 104 |
204611673 |
Backrest Ass'y RH |
| 105 |
204000130 |
Elevator Bolt |
| 106 |
211200054 |
EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership |
| 107 |
234461608 |
External Serrated Lock Washer 6 mm |
| 108 |
204100060 |
Hex. Jam Nut |
| 109 |
293800060 |
Loctite 243, 10 ml |
| 110 |
204611371 |
Backrest Cover RH |
| 111 |
Not |
Available As Spare Part - Islandia Logo |
| 114 |
211200054 |
EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership |
| 115 |
234461608 |
External Serrated Lock Washer 6 mm |
| 116 |
204100060 |
Hex. Jam Nut |
| 117 |
293800060 |
Loctite 243, 10 ml |
| 118 |
204610802 |
Backrest Cover RH |
| 121 |
211200054 |
EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership |
| 122 |
234461608 |
External Serrated Lock Washer 6 mm |
| 123 |
204100060 |
Hex. Jam Nut |
| 124 |
293800060 |
Loctite 243, 10 ml |
| 125 |
204611372 |
Backrest Cover RH |
| 128 |
211200054 |
EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership |
| 129 |
234461608 |
External Serrated Lock Washer 6 mm |
| 130 |
204100060 |
Hex. Jam Nut |
| 131 |
293200032 |
TRAY SEAL, METER - Call your local BRP dealership |
| 133 |
204611540 |
SWIVEL BASE SEAT - Call your local BRP dealership |
| 136 |
211200054 |
EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership |
| 137 |
234461608 |
External Serrated Lock Washer 6 mm |
| 138 |
204100060 |
Hex. Jam Nut |
| 139 |
204610839 |
Pad Cover RH |
| 140 |
293050001 |
Flat Washer M8.5 x 18 |
| 141 |
204611380 |
Helm Curtain |
| 142 |
204000083 |
SNAP BASE - Call your local BRP dealership |
| 143 |
204000085 |
SNAP COVER - Call your local BRP dealership |
| 144 |
293150013 |
Pop Rivet 3/16" |
| 145 |
234082600 |
Flat Washer 8 mm, Stainless |
| 146 |
211100026 |
HEX. NUT 1/4 - Call your local BRP dealership |
| 147 |
207185560 |
HEX. SCREW M8 X 55 - Call your local BRP dealership |
| 148 |
232581600 |
Hex. Elastic Nut M8 |
| 149 |
234081600 |
Stainless, Flat Washer 8 mm |
| 150 |
234082600 |
Flat Washer 8 mm, Stainless |
| 151 |
204000084 |
BOTTOM SNAP - Call your local BRP dealership |
| 204610827 |
Backrest |
Cover LH 204610827 |
| 204610835 |
Headrest |
Cover LH 204610835 |
| 204610843 |
Pad |
Cover LH 204610843 |
| 204611093 |
Backrest |
Cover (Back) (RH) 204611093 |
| 204611097 |
Backrest |
Cover (Back) (Center) 204611097 |
| 204611349 |
Cushion |
Cover LH 204611349 |
| 204611356 |
Backrest |
Cover (Center) 204611356 |
| 204611358 |
Backrest |
Cover (RH) 204611358 |
| 204611361 |
Pad |
Ass'y (LH) 204611361 |
| 204611362 |
Pad |
Cover (LH) 204611362 |
| 204611373 |
Backrest |
Cover LH 204611373 |
| 204611374 |
Backrest |
Cover LH 204611374 |
| 204611378 |
Headrest |
Curtain 204611378 |
| 204611683 |
Backrest |
Ass'y LH 204611683 |
| 204611686 |
Backrest |
Ass'y (Front) LH 204611686 |
| 204611699 |
Headrest |
Ass'y LH 204611699 |
| 204611712 |
Pad |
Ass'y LH 204611712 |
