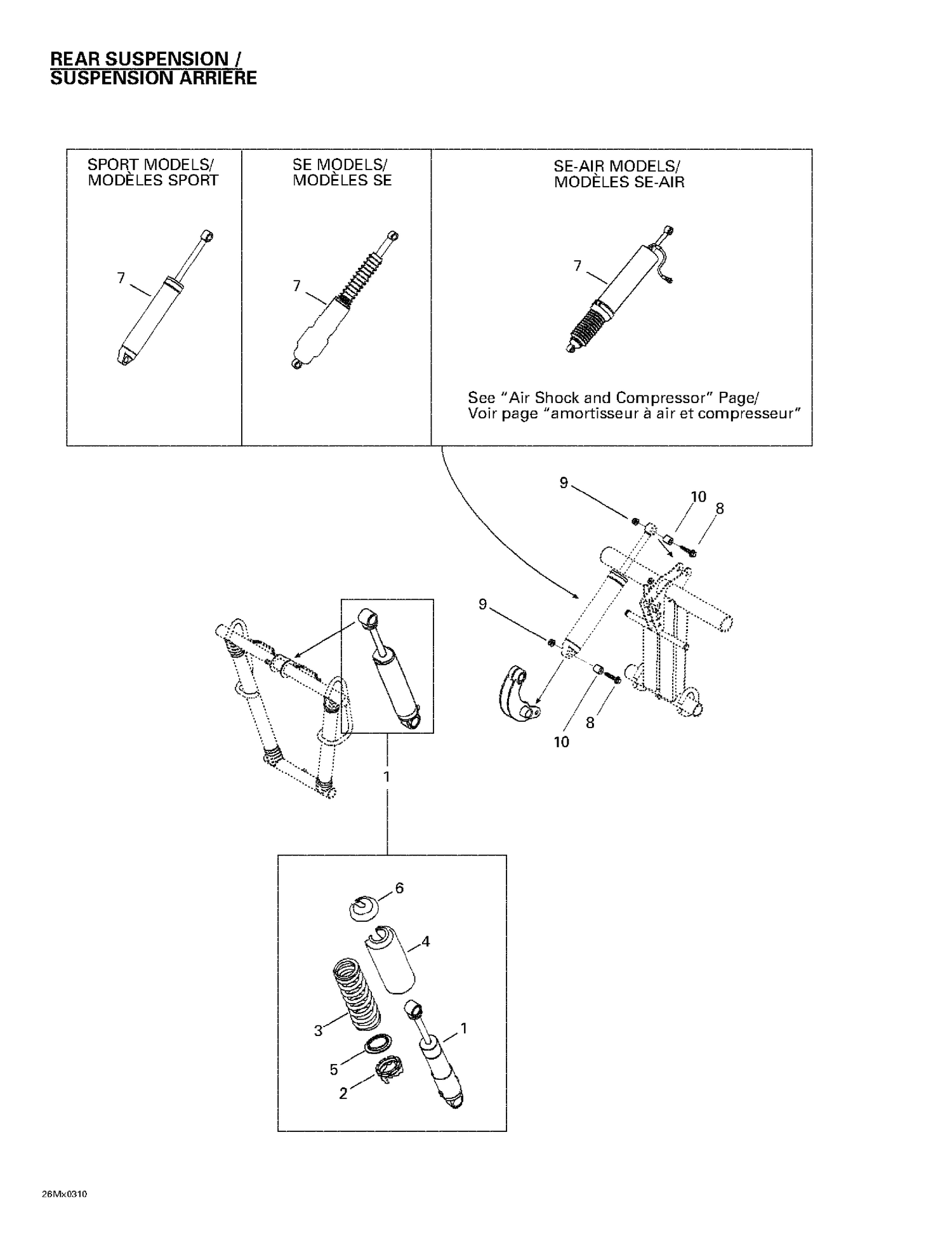

08- Rear Shocks
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 503190026 | Center Shock |
| 2 | 505073625 | Adjustment Cam This part replaces 505070150. |
| 3 | 503189659 | SPRING - Call your local BRP dealership |
| 4 | 503193663 | Protector This part replaces 503188930. |
| 5 | 503191872 | Spring Guide This part replaces 517184300. |
| 6 | 706200881 | Spring Stopper This part replaces 503140600. |
| 8 | 207684044 | Hex. Flange Screw M8 X 40 |
| 9 | 233281414 | Hex. Flange Elastic Nut M8 |
| 503190259 | Amortisseur | Arrière 503190259 |
| 503190259 | rear | SHOCK 503190259 |
