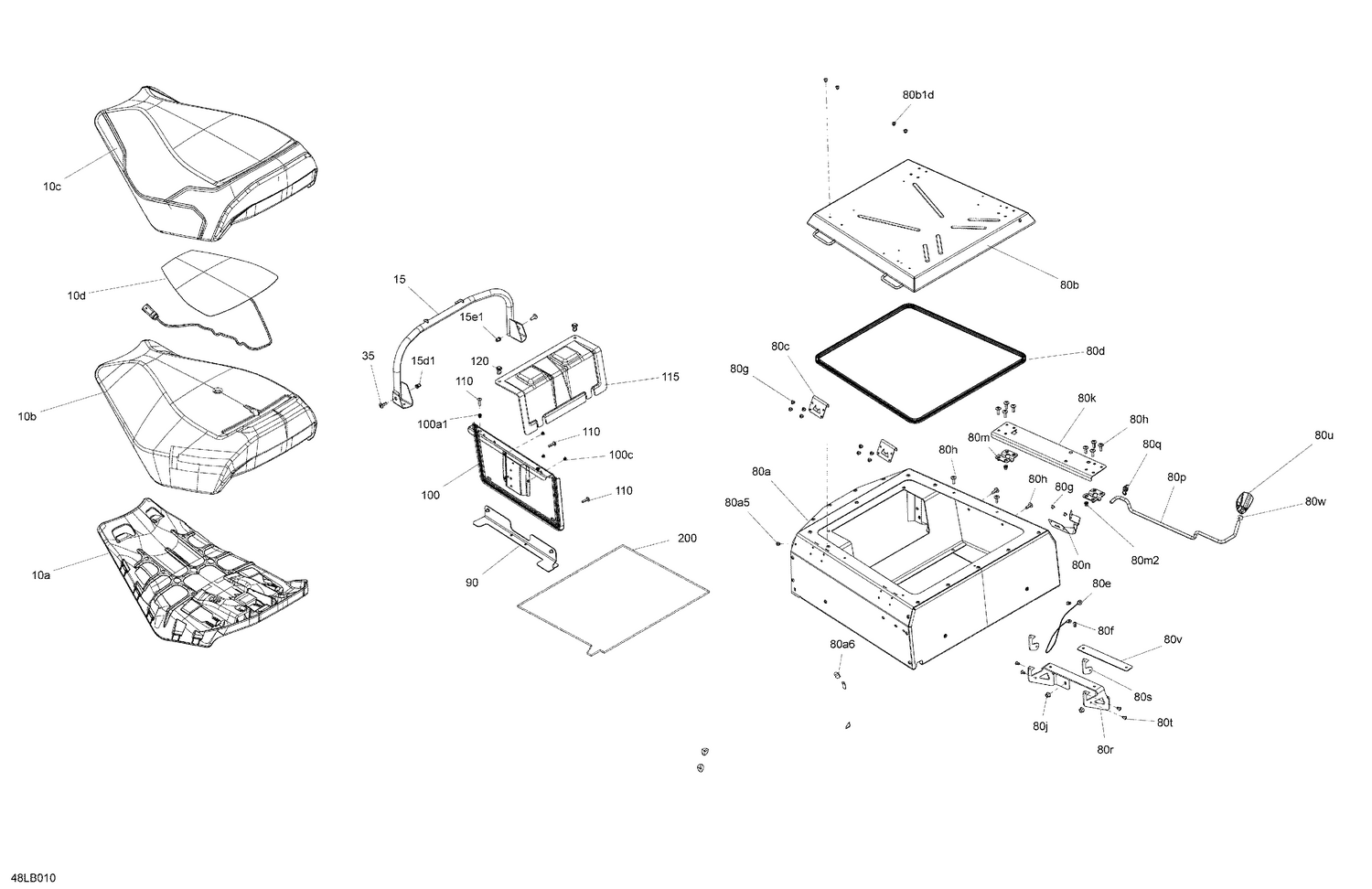

07- Body - Seat
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 510006721 | Seat Base |
| 10b | 510008182 | Front Foam Seat This part replaces 510006722. |
| 10c | 510007205 | Seat Cover |
| 10d | 515178727 | Heated Element |
| 15d1 | 605636003 | Clinch Nut M6 Hexsert |
| 15e1 | 605636003 | Clinch Nut M6 Hexsert |
| 35 | 250000779 | Torx Screw M6 X 1.0 X 18, Scotch Grip |
| 80a5 | 390909200 | Avex Rivet |
| 80a6 | 518325560 | Adhesive Patch |
| 80b1d | 390909200 | Avex Rivet |
| 80c | 510007179 | Hinge Plate |
| 80d | 293250551 | Weatherstrip |
| 80e | 293750070 | Seat Retainer Cable |
| 80f | 293150163 | Rivet Hucklok |
| 80g | 293150102 | Rivet avex 12 mm. |
| 80h | 250000779 | Torx Screw M6 X 1.0 X 18, Scotch Grip |
| 80j | 233061414 | Elastic flange nut M6 |
| 80k | 510007175 | Lock Plate |
| 80m2 | 605636003 | Clinch Nut M6 Hexsert |
| 80n | 510007353 | Lock Plate |
| 80p | 510007178 | Lock Wire |
| 80q | 520002429 | Locking Spring |
| 80r | 510007176 | Locking Plate |
| 80s | 510007177 | Lock Plate |
| 80t | 390909100 | Avex Rivet |
| 80u | 707003211 | Lever Trim This part replaces 707000965. |
| 80v | 510007180 | Lock Plate |
| 80w | 232180491 | Hex. Jam Nut M8 |
| 90 | 511001787 | Fastening Plate |
| 100a1 | 293450268 | Insert M5 X 0.8 |
| 100c | 293150102 | Rivet avex 12 mm. |
| 110 | 250000724 | Torx Screw M5 X 20 |
| 115 | 511001676 | Access Cover |
| 120 | 293150230 | Tuflok Plastic Rivet |
