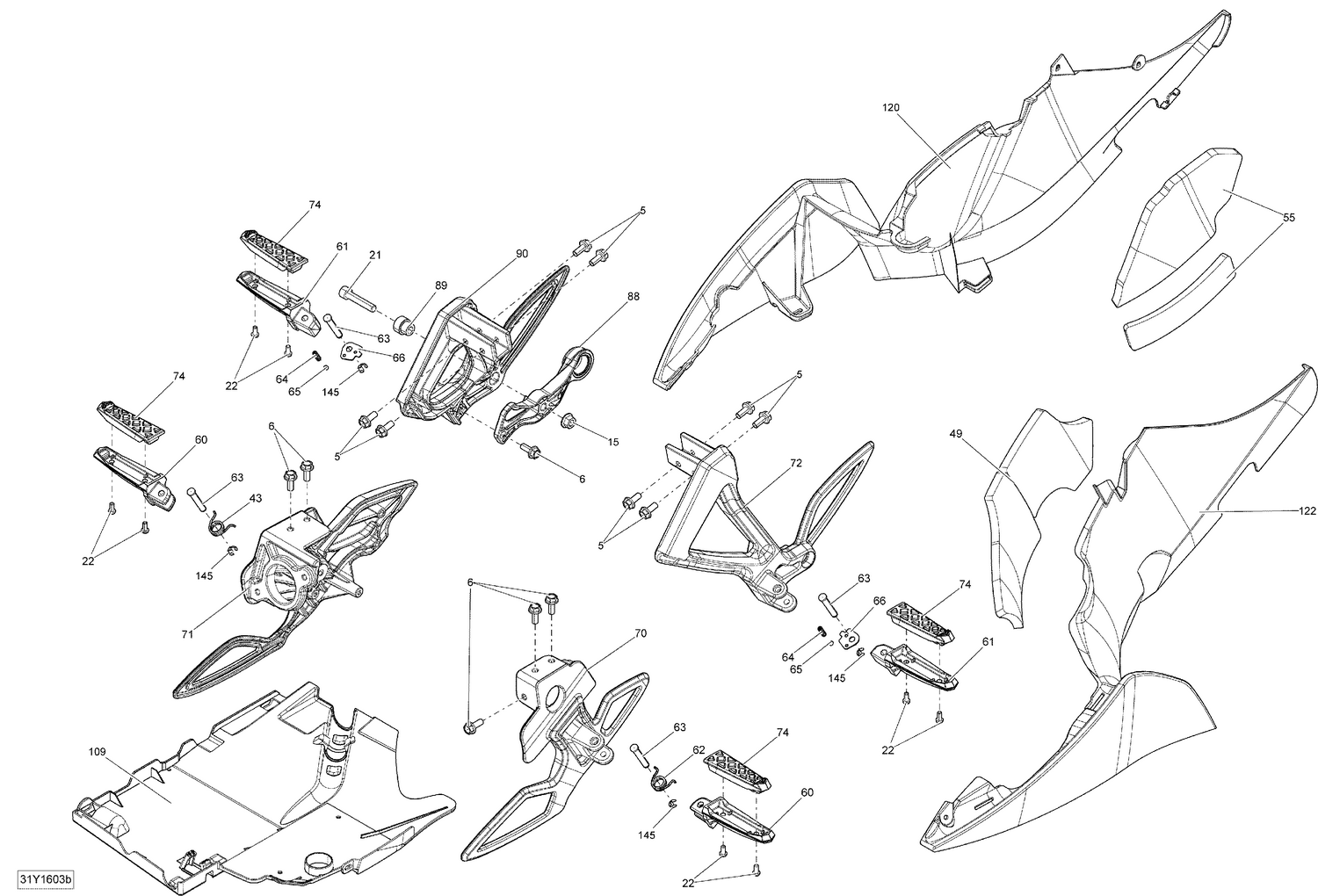

09- Body And Accessories - Footrest
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 5 | 207581844 | HEX. FLANGED SCREW M8 X 20, SCOTCH GRIP - Call your local BRP dealership |
| 6 | 207582054 | Hex Screw Washer Head M8 X 20 |
| 15 | 233101600 | Hex. Flange Nut M10 |
| 21 | 244005060 | Allen Screw S.GRIP M10 X 50 |
| 22 | 250000099 | Allen Plastite Screw #12 |
| 43 | 705003362 | Spring |
| 49 | 518324753 | LH ROCKER PANEL FOAM - Call your local BRP dealership |
| 55 | 518327520 | RH Rocker Panel Foam |
| 62 | 705001701 | Spring |
| 63 | 705001702 | Retainer Pin |
| 64 | 705001704 | Spring |
| 65 | 705001705 | Ball |
| 66 | 705001706 | Indexation Plate |
| 74 | 705002359 | Rubber Pad |
| 89 | 705003765 | BUSHING - Call your local BRP dealership |
| 109 | 705005749 | LH Deflector Pannel |
| 120 | 705006689 | RH ROCKER PANEL - Call your local BRP dealership |
| 122 | 705006985 | LH Rocker Panel |
