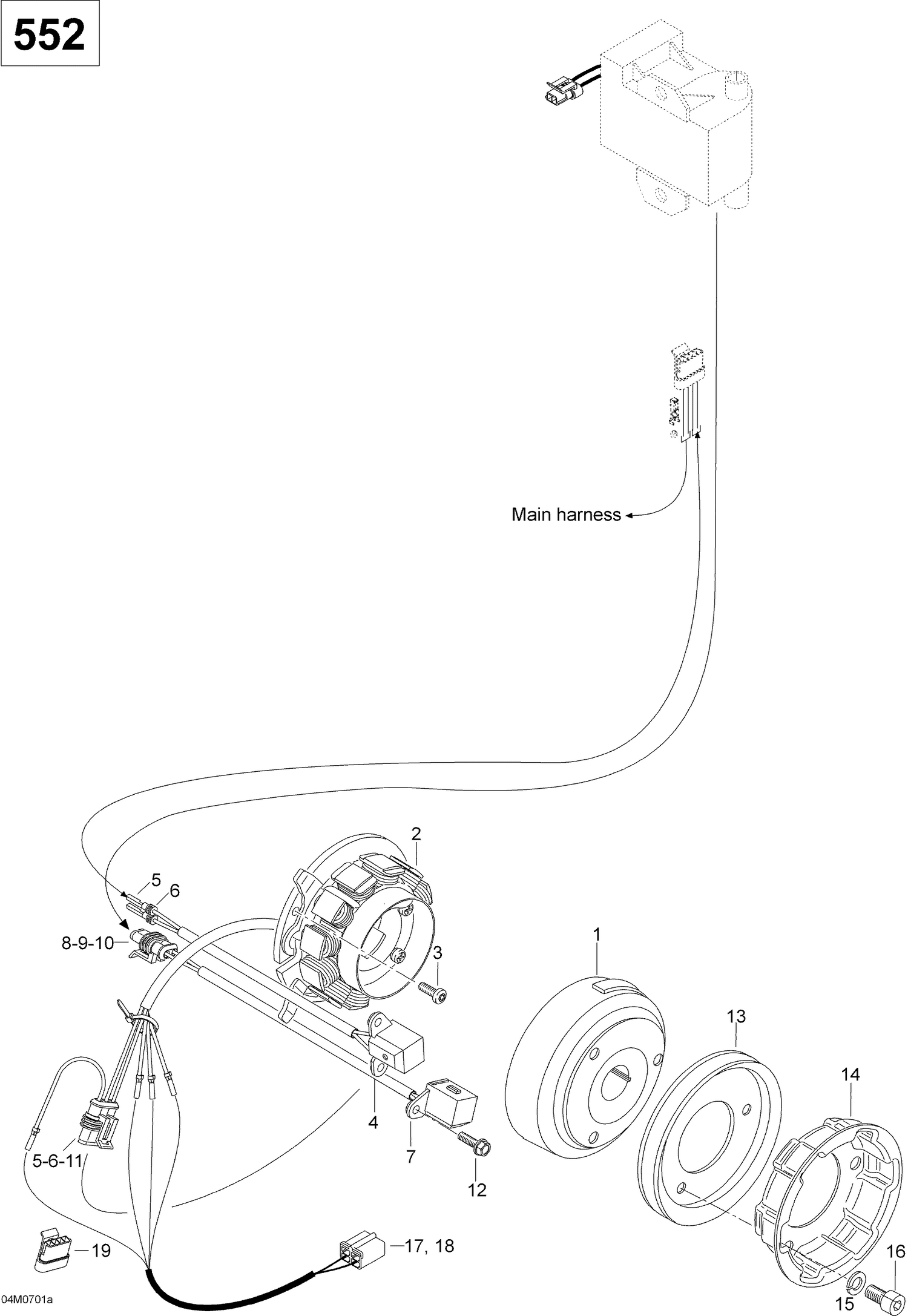

03- Magneto 550F SUV
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420889376 | Flywheel |
| 2 | 420889369 | Stator Plate A This part replaces 420889368. |
| 3 | 420641521 | Screw |
| 5 | 278001014 | Female Terminal |
| 6 | 278001013 | Wire Seal |
| 8 | 409209500 | Female Housing, 2 Circuits |
| 9 | 278001014 | Female Terminal |
| 10 | 278001013 | Wire Seal |
| 11 | 409209600 | Female Housing, 3 Circuits |
| 12 | 420941928 | Taptite Screw M5 X 16 This part replaces 420941925. |
| 13 | 420980486 | V-Belt Pulley |
| 14 | 420852414 | Rope Sheave |
| 15 | 420845311 | Lock Washer |
| 16 | 420440852 | Torx Flange Screw M8 X 16 |
| 17 | 278001473 | Female Terminal Housing, 4 Circuits |
| 18 | 278001474 | Female Lock, 4 Circuits |
