Parts Catalog

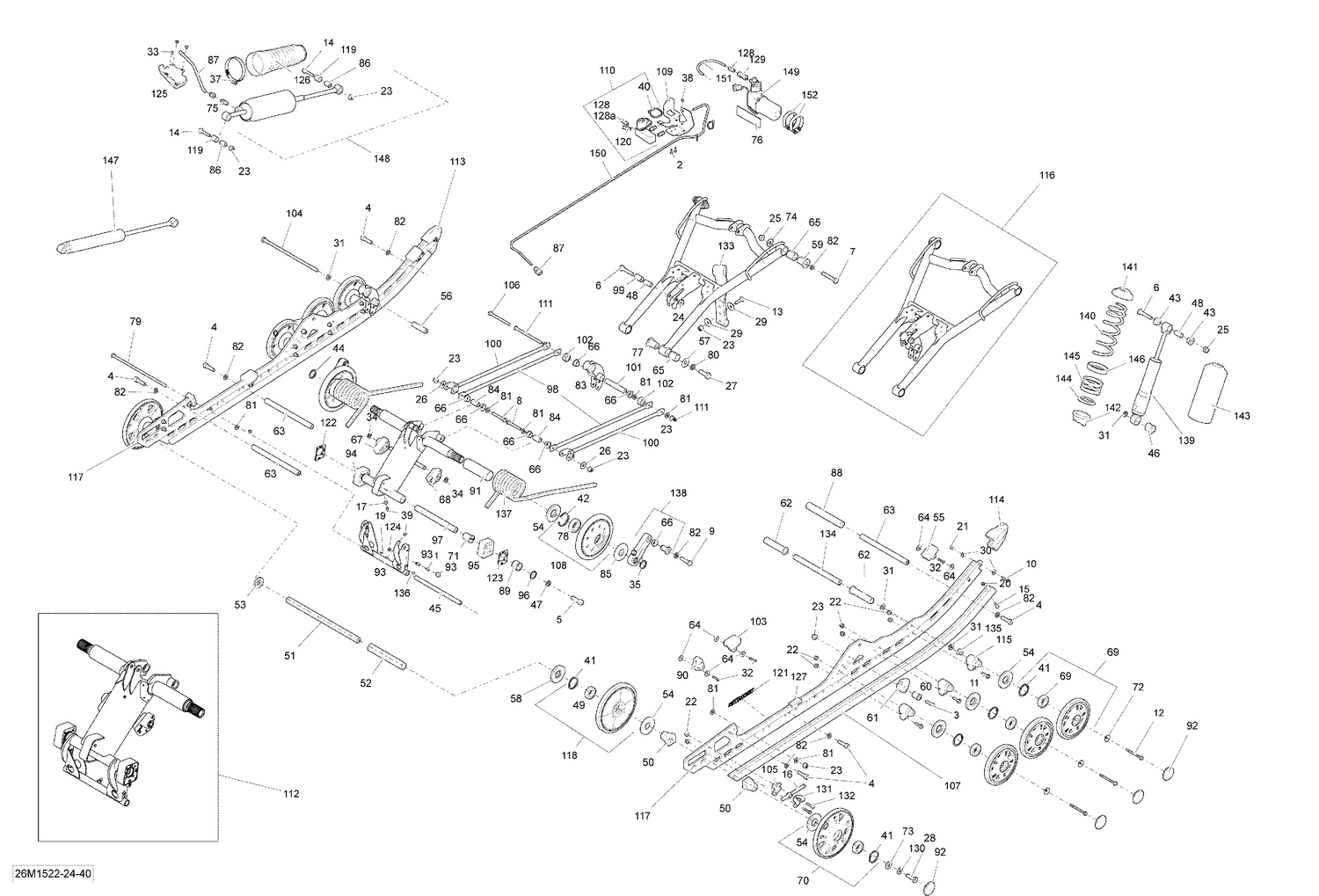

08- Rear Suspension _26M1540

Parts (147)

Ref	Part Number	Description
1	205041060	Socket Head Screw M4X 10
2	XXX	Not Available As Spare Parts
3	205082554	Socket Screw M8 X 25
4	205503554	Socket Head Screw M10 X 35
5	205523554	Socket Head Screw M12 X 35
6	207005044	Hex. Screw M10 X 1.5 X 50
7	207006056	Hex. Cap Screw M10 X 60
8	207085544	Hex. Screw M8 X 55
9	207204056	Cap Screw Hex. M10 X 40
10	207652544	Hex. Flange Screw M5 X 25
11	207662556	Hex. Flange Screw M6 X 25
12	207667056	Hex. Flange Screw M6 X 70
13	207683044	Hex. Flange Screw M8 X 30
14	207684044	Hex. Flange Screw M8 X 40
15	208562531	Phillips Screw M6 X 25
16	230100054	Hex Screw M10 x 100
17	232061404	Hexagonal Nut M6
19	232551414	Elastic Stop Nut M5
20	232561434	Elastic Stop Nut M6
21	233251434	Flange Elastic Nut M5
22	233261466	Hex. Flange Elastic Nut M6
23	233281466	Elastic Flange Nut M8
24	233601416	Elastic Locking Nut M10 X 1.5
25	233601466	Elastic Locking Nut M10
26	234082410	Flat Washer 8 mm
27	250000537	Hex. Cap Screw M12 X 35
28	250000592	Hex Cap Screw Nylon M10 x 35
29	250200128	Flat Washer 8 mm
30	250200140	Washer
31	250200143	Flat Washer
32	293150013	Pop Rivet 3/16"
33	XXX	Not Available As Spare Parts
34	293370013	E-Circlip
35	293370080	Retaining Ring
37	XXX	Not Available As Spare Parts
38	XXX	Not Available As Spare Parts
39	408200700	Grease Fitting
40	XXX	Not Available As Spare Parts
41	415129371	Retaining Ring
42	415129780	Retaining Ring
43	503189117	Urethane Bushing
44	503189146	Axle Spring
45	503189156	Pivot Arm Axle
46	503189271	Bushing
47	503189276	Washer
48	503189282	Bushing
49	503190396	Ball Bearing
50	503190428	Rear Wheel Spacer
51	503190429	Rear Axle
52	503196317	Spacer This part replaces 503190430.
53	503190432	Washer
54	503190434	Labyrinth Seal
55	503190576	Rubber Stopper
56	503190643	Axle Bar (Long)
57	503190656	Washer
58	503190682	Labyrinth Seal
59	503190698	Axle
60	861805547	Spring Support Kit This part replaces 503190754.
61	861805547	Spring Support Kit This part replaces 503191183.
62	503191259	Center Bushing
63	503191260	Axle Strap
64	503191273	Washer
65	503191554	Bushing
66	503191555	Swivel Bushing
67	503191565	LH Cam Adjuster
68	503191566	RH Cam Adjuster
69	503191152	Black, Wheel Ass'y 147 mm
69	503191624	Full Moon Wheel Ass'y, 147 mm
71	503191640	Cushion
72	503191820	Wheel Cup M6
73	503191910	Washer
74	503191926	Washer
75	XXX	Not Available As Spare Parts
76	XXX	Not Available As Spare Parts
77	503191966	Lower Axle
78	503193548	Ball Bearing This part replaces 503191982.
79	503192440	Bolt M8 X 248mm
80	503192491	Washer
81	503192494	Washer
82	503192496	Washer
83	503192531	Rocker
84	503192555	Axle Bar
85	503192592	Labyrinth Ring
86	503196509	Axle Shock Absorber This part replaces 503192606.
87	XXX	Not Available As Spare Parts
88	503196943	Spacer This part replaces 503192678.
89	503192749	Guide Block
90	503192750	Rubber Stopper
91	503192767	Bushing
92	503192771	Black, Wheel Cap
93	503192823	Pivot Arm Ass'y
94	503192918	LH Cam Block
95	503192919	RH Cam Block
96	503192921	O-Ring
97	503192981	Lower Shaft
98	503193005	Link Rod
99	503193037	Bushing
100	XXX	Not Available As Spare Parts
101	XXX	Not Available As Spare Parts
102	XXX	Not Available As Spare Parts
103	503195523	Rubber Stopper Ass'y This part replaces 503193101.
104	503193227	Bolt M10 X 251MM
105	503193250	Spacer
106	503193372	Screw M8 X 90
107	503193449	Black, Slider Shoe 137"
108	503193451	Black Wheel Ass'y 165 mm
109	XXX	Not Available As Spare Parts
110	XXX	Not Available As Spare Parts
111	XXX	Not Available As Spare Parts
112	503193617	Rear Arm Ass'y
113	503193724	LH Protector
114	503193725	RH Protector
115	503193894	Casted Support
116	503193971	Front Arm Ass'Y
118	503194050	Black, Wheel Ass'y 180 mm
119	505072663	Leg Cushion
120	XXX	Not Available As Spare Parts
121	516004755	Runner Decal
122	516004900	LH Block Sticker Decal
123	516004901	RH Block Sticker Decal
124	517225900	Flat Washer
125	XXX	Not Available As Spare Parts
126	XXX	Not Available As Spare Parts
127	572084800	Reinforcement Stopper
128a	XXX	Not Available As Spare Parts
129	XXX	Not Available As Spare Parts
130	234201474	Conical Spring Washer 10 mm
131	503192583	Tensioner
132	207063054	Hex. Cap Screw M6 X 30
133	503192360	Stopper Strap
134	503193435	Pivot Axle
135	233201466	Flange Elastic Nut M10
136	390402200	Pop Rivet 3/16"
138	503195985	Link Ass'y This part replaces 503193069.
139	503193444	Central Shock
140	503193837	Black, Spring (51mm) Short
141	706200881	Spring Stopper
142	505073625	Adjustment Cam
143	503193663	Protector
144	503191872	Spring Guide
145	503193160	Deep Black, Spring (189mm) Long
146	503191281	Spring Spacer
147	503195281	Rear Shock Ass'y This part replaces 503193646.
148	XXX	Not Available As Spare Parts
149	XXX	Not Available As Spare Parts
150	XXX	Not Available As Spare Parts
151	XXX	Not Available As Spare Parts
