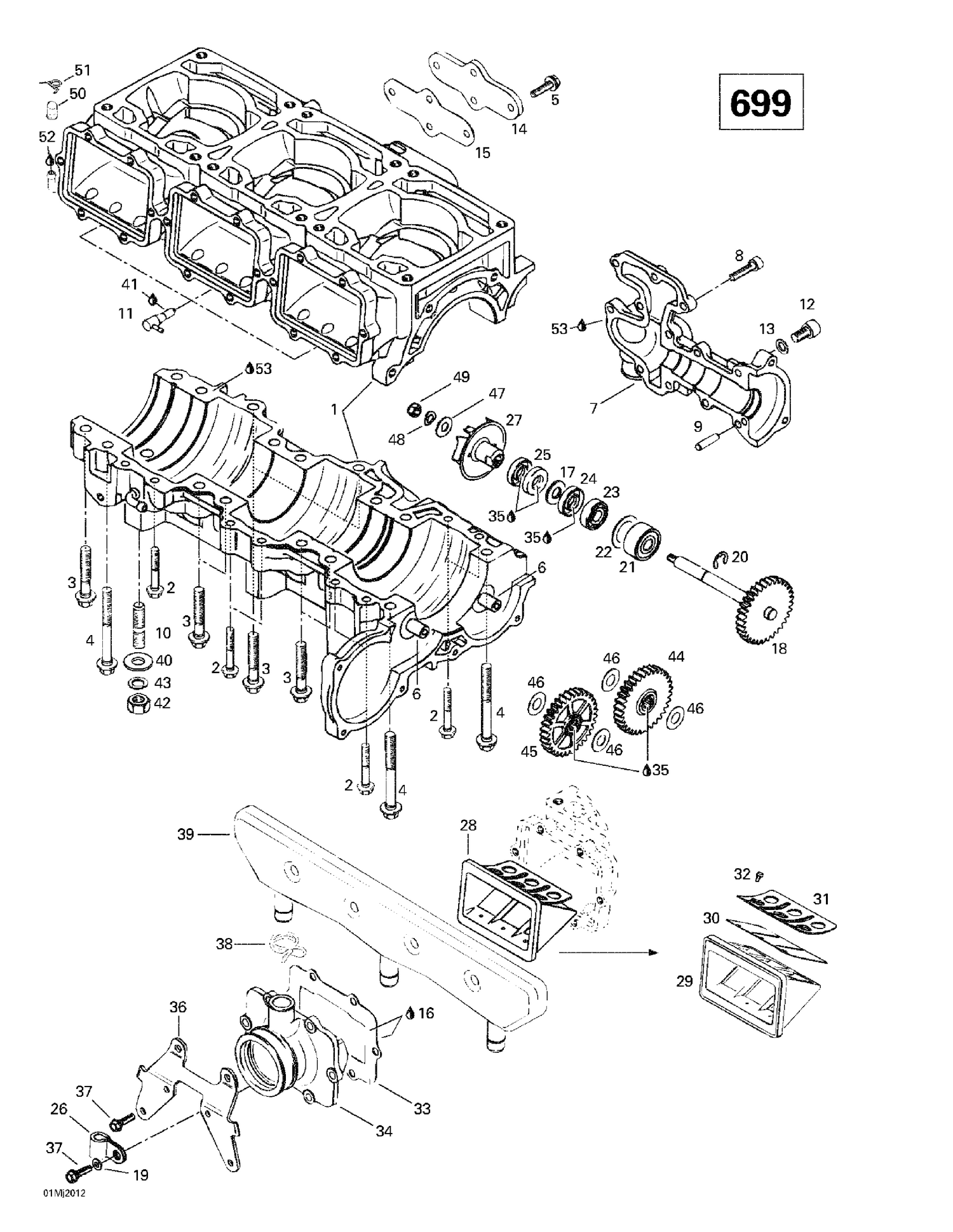

| Ref | Part Number | Description |
|---|
| 2 |
420941451 |
HEX. COLLAR SCREW M6 X 40 - Call your local BRP dealership |
| 3 |
420640433 |
Collar Hex Screw M8 X 45 This part replaces 420940636. |
| 4 |
420841307 |
Hex. Collar Screw M8 X 65 This part replaces 420841306. |
| 5 |
420941251 |
SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250. |
| 6 |
420929935 |
INTERMEDIATE GEAR SHAFT - Call your local BRP dealership |
| 7 |
Not |
Available As Spare Part - Water Pump Cover |
| 8 |
205062544 |
Socket Head Screw M6 X 25 |
| 9 |
420429230 |
Dowel Pin |
| 10 |
420940400 |
Stud M10 x 25 |
| 11 |
420956511 |
Check Valve This part replaces 420956510. |
| 12 |
205081644 |
SOCKET HEAD SCREW M8 X 16 - Call your local BRP dealership |
| 13 |
420950141 |
Sealing Ring |
| 14 |
420810470 |
Water Duct Cover |
| 15 |
420931300 |
Water Duct Gasket |
| 16 |
219704462 |
ADHESIVE LOCTITE 515 50ML - Call your local BRP dealership |
| 17 |
420927411 |
Flat Washer M10 This part replaces 420927410. |
| 18 |
420837437 |
Waterpump - Shaft/Gear Ass'y |
| 19 |
420827800 |
WASHER - Call your local BRP dealership |
| 20 |
420845390 |
RETAINING RING - Call your local BRP dealership |
| 21 |
420832490 |
Bearing_Ball - Call your local BRP dealership |
| 22 |
420944466 |
SHIM 1 MM - Call your local BRP dealership |
| 23 |
420232100 |
Ball Bearing |
| 24 |
420230195 |
Oil Seal |
| 25 |
420950400 |
OIL SEAL - Call your local BRP dealership |
| 26 |
414176000 |
Open Clamp |
| 27 |
420922445 |
Impeller Water |
| 29 |
Not |
Available As Spare Part - Reed Valve Housing |
| 30 |
420924532 |
Reed Pedal |
| 31 |
420924539 |
Reed Pedal Stop |
| 32 |
420941215 |
Phillips Screw M3 X 5 |
| 33 |
420950292 |
GASKET 1 MM - Call your local BRP dealership |
| 34 |
420867841 |
INTAKE SOCKET - Call your local BRP dealership |
| 35 |
413707000 |
Dow Corning 111, 150 g |
| 36 |
420851351 |
CARRIER - Call your local BRP dealership |
| 37 |
420841555 |
Hex. Tapping Screw M5 X 20 |
| 38 |
420851360 |
Clamp |
| 39 |
420867792 |
Intake Resonator |
| 40 |
234001410 |
Flat Washer 10 mm |
| 41 |
219703000 |
Sealant Loctite 648 This part replaces 413711400. |
| 42 |
232006414 |
Hex. Nut M10 X 1.5 |
| 43 |
234100602 |
WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership |
| 44 |
420834266 |
Sprocket 32 T |
| 45 |
420834267 |
SPROCKET, 32 TEETH - Call your local BRP dealership |
| 46 |
420927952 |
THRUST WASHER - Call your local BRP dealership |
| 47 |
420227155 |
Washer |
| 48 |
420845020 |
SPRING WASHER - Call your local BRP dealership |
| 49 |
420842042 |
Locking Nut M6 |
| 50 |
420960770 |
Cap |
| 51 |
420938190 |
CLAMP - Call your local BRP dealership |
| 52 |
293550021 |
Isoflex Grease, TOPAS NB52, 50 g |
