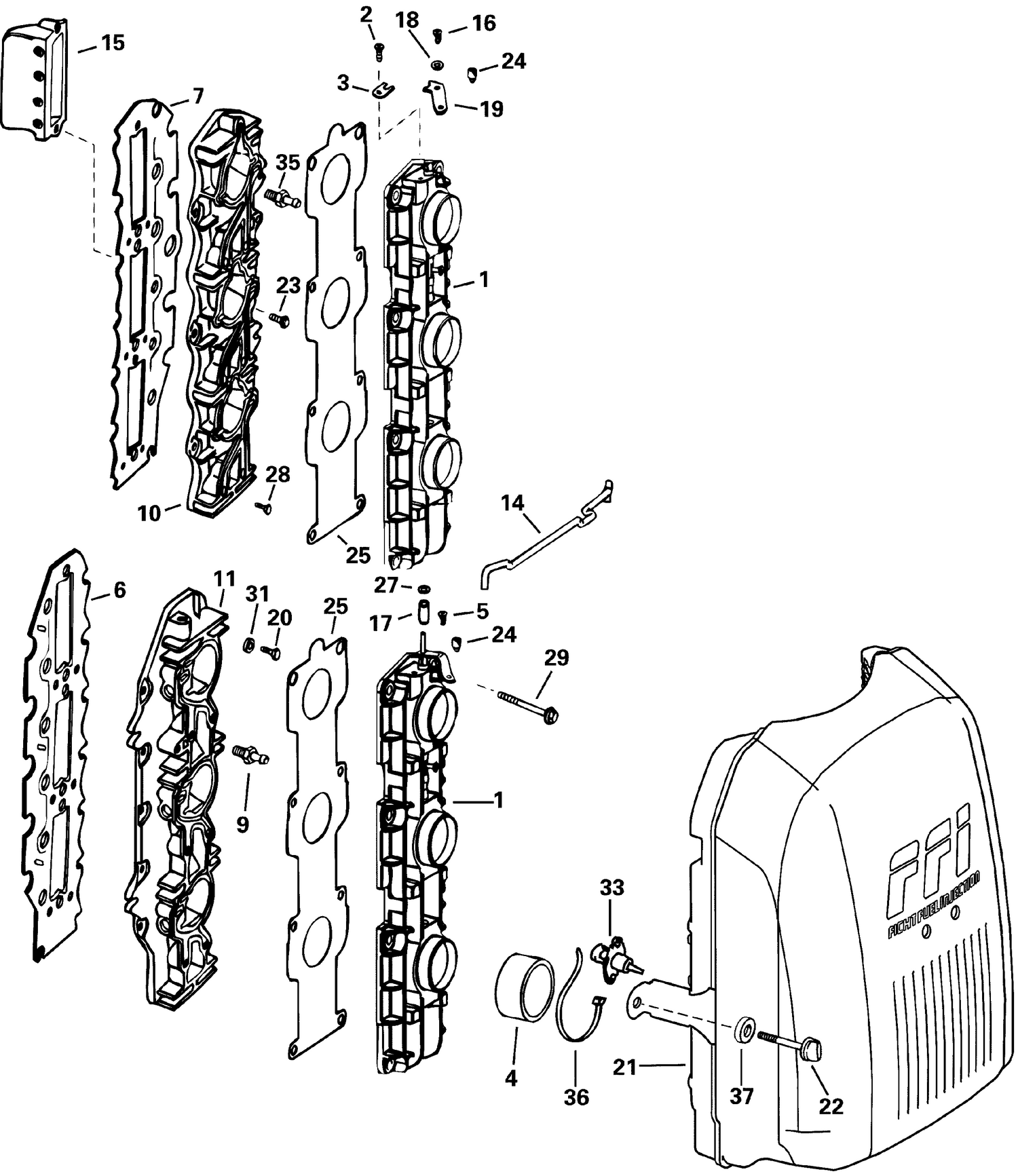

| Ref | Part Number | Description |
|---|
| 1 |
5000177 |
THROTTLE BODY Assy, Port |
| 1 |
5004326 |
THROTTLE BODY Assy, Stbd This part replaces 5001237. |
| 10 |
0346148 |
INTAKE MANIFOLD Assy, Port |
| 11 |
0346149 |
INTAKE MANIFOLD Assy, Stbd This part replaces 5000877. |
| 14 |
0348947 |
LINK, Port to carburetor - Stbd |
| 15 |
0437591 |
LEAF PLATE Assy |
| 17 |
0347094 |
ROLLER, Cam follower |
| 19 |
0335257 |
LEVER, Linkage adjustment |
| 21 |
5005369 |
AIR SILENCER Assy This part replaces 5001897. |
| 22 |
0439922 |
FASTENER, Air silencer |
| 24 |
0318165 |
DISPOSITIF DE RETENUE, tringlerie de carburateur |
| 25 |
0344335 |
GASKET, Manifold to throttle assy |
| 27 |
0324678 |
JOINT TORIQUE Galet de came de papillon |
| 28 |
0344038 |
SCREW, Inner manifold |
| 29 |
0323626 |
SCREW |
