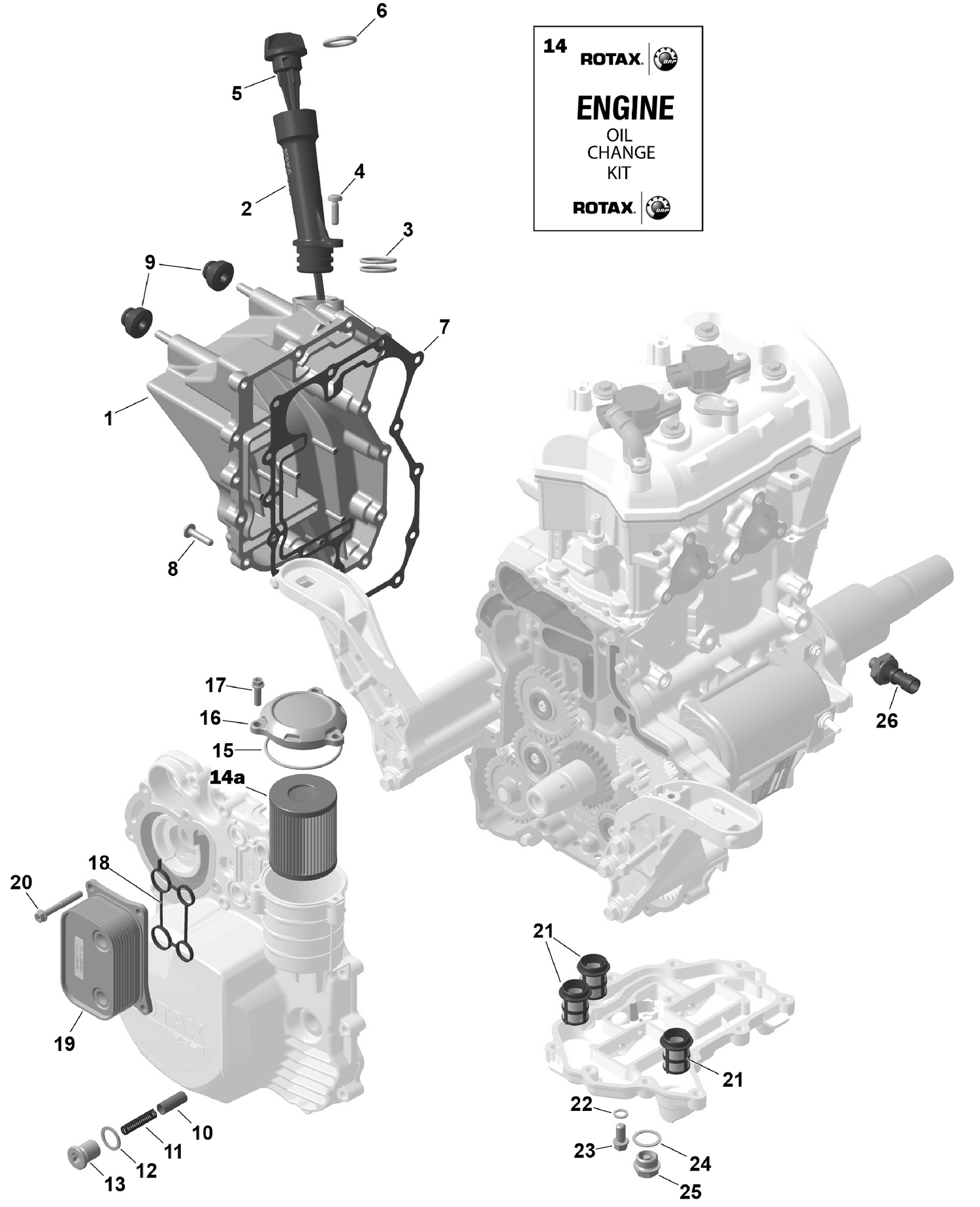

01- ROTAX - Engine Lubrication
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420956210 | Oil Pump Cover |
| 2 | 420656905 | Oil Filler Tube |
| 4 | 420441386 | Torx Flange Screw M6 X 20 |
| 5 | 420856664 | Oil Level Tube |
| 7 | 420431770 | Gasket |
| 8 | 420841548 | Torx Flange Screw M6 X 25 |
| 9 | 420860150 | Rubber Grommet |
| 10 | 420256591 | Pressure Regulating Piston |
| 11 | 420239445 | Spring |
| 12 | 420430624 | Oil Pressure Regulator Gasket Ring |
| 13 | 420441373 | Plug Screw |
| 14 | 9779298 | Ryker Oil Change Kit 5W40 600CC |
| 14a | 420956123 | Oil Filter |
| 16 | 420612135 | Oil Filter cover |
| 17 | 420440207 | Torx Flange Screw M6 X 20 |
| 19 | 420656698 | Oil Water Heat Exchanger |
| 20 | 420440324 | Torx Flange Screw M6 X 45 |
| 21 | 420656680 | Oil Sieve |
| 23 | 420440852 | Torx Flange Screw M8 X 16 |
| 25 | 420840278 | Drain Plug M18 X 1.5 |
