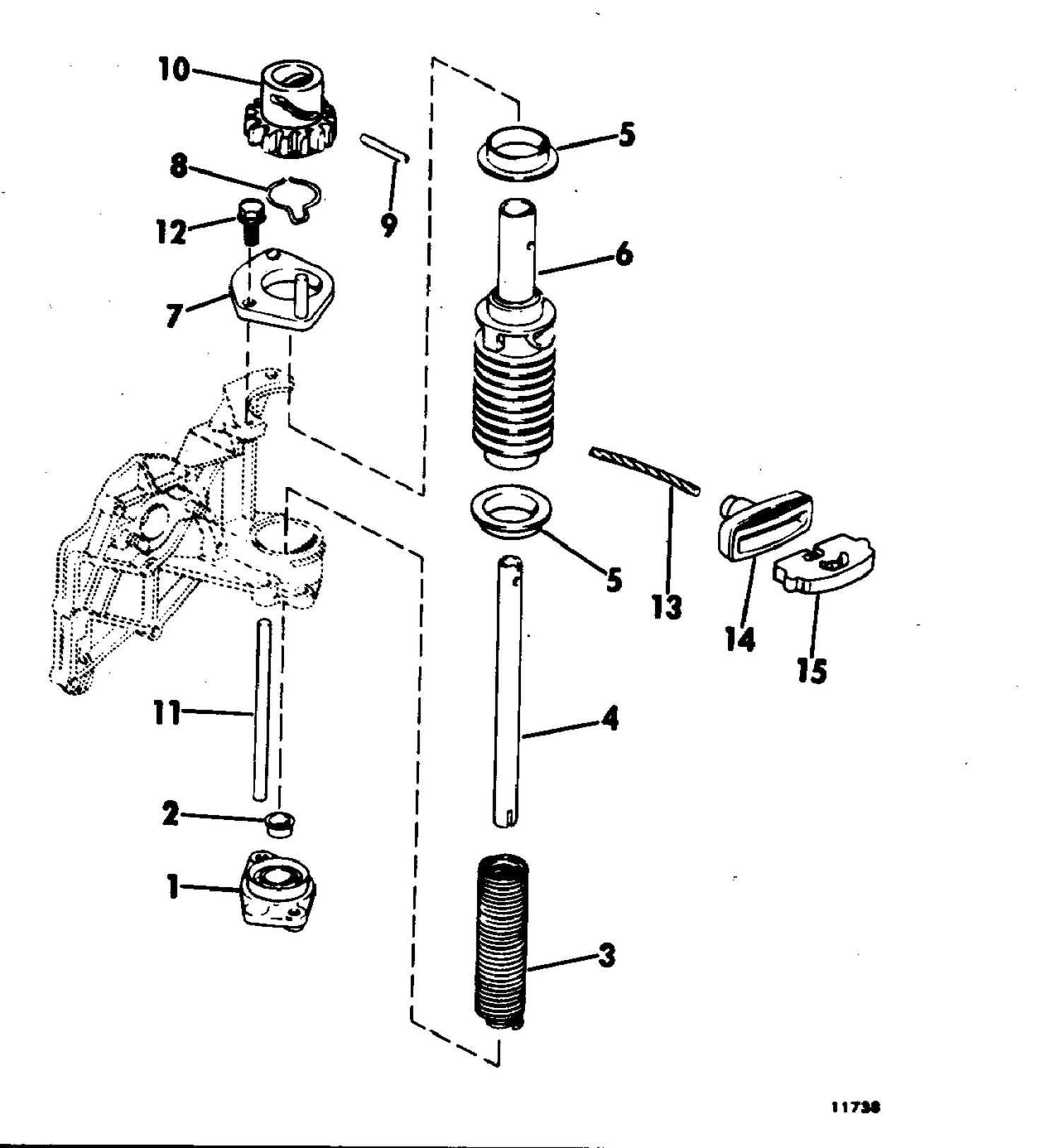

REWIND STARTER
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0314501 | PLATE, Spring retainer |
| 2 | 0311259 | BUSHING |
| 3 | 0314500 | MAIN SPRING |
| 4 | 0311257 | RETAINER, Spring |
| 5 | 0311256 | BUSHING |
| 6 | 0387509 | SPOOL This part replaces 0311222. |
| 7 | 0311277 | BEARING HEAD |
| 8 | 0309736 | SPRING |
| 9 | 0309686 | ROLL PIN |
| 10 | 0318447 | PINION This part replaces 0311189. |
| 11 | 0311284 | GUIDE, Rope |
| 12 | 0311762 | SCREW, Hex head |
| 13 | ROPE | Ref: 14 0205971 HANDLE 0205971 |
| 0383031 | 0383031 | REWIND STARTER ASSY |
