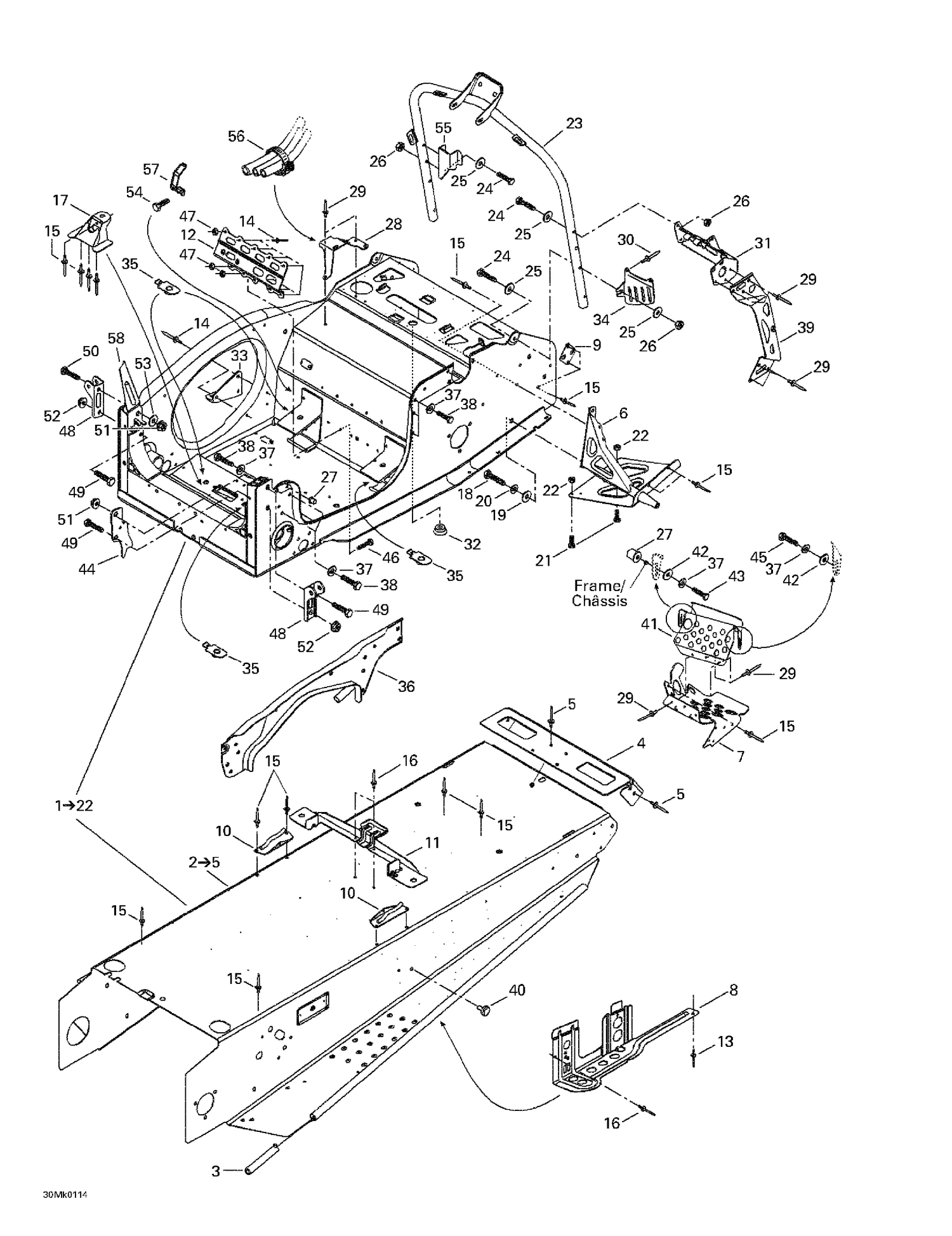

09- Frame And Accessories
Parts (67)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 518304746 | FOOTREST REINFORCEMENT - Call your local BRP dealership |
| 4 | 518321301 | Cap-End |
| 5 | 390402200 | Pop Rivet 3/16" |
| 6 | 518317522 | RH Footrest Support |
| 7 | 518321433 | RH Footrest |
| 8 | 518319742 | RH Slide Bracket |
| 9 | 518201321 | REINFORCEMENT PLATE - Call your local BRP dealership |
| 10 | 517266900 | RH Tank Bracket |
| 11 | 518317506 | Seat Bracket |
| 12 | 518322282 | Steering Support |
| 13 | 309909200 | Rivet Avex |
| 14 | 390909100 | Avex Rivet |
| 15 | 390402200 | Pop Rivet 3/16" |
| 16 | 390402400 | Pop Rivet 3/16" |
| 17 | 518317509 | Pivot Arm Support |
| 18 | 207103544 | Hex. Screw M10 X 35 |
| 19 | 234001410 | Flat Washer 10 mm |
| 20 | 234101402 | Lock Washer M10 |
| 21 | 207151644 | Hex. Screw M5 X 16 |
| 22 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 23 | 518321511 | Handle Steering Support |
| 24 | 207063544 | Hex. Flange Screw M6 X 35 |
| 25 | 224061121 | Flat Washer |
| 26 | 232561414 | Elastic Stop Nut M6 |
| 27 | 293450275 | Insert This part replaces 415107300. |
| 28 | 518317556 | Guide |
| 29 | 390402200 | Pop Rivet 3/16" |
| 30 | 390403600 | Pop Rivet 3/16 |
| 31 | 518321572 | RH Upper Bracket |
| 32 | 414859400 | CAP - Call your local BRP dealership |
| 33 | 518317553 | Muffler Support |
| 34 | 518317572 | Belt Protector |
| 35 | 518317507 | Plate |
| 36 | 518317515 | Strap |
| 37 | 234161471 | Lock Washer M6, Black |
| 38 | 207161844 | Hex. Screw M6 X 18 |
| 39 | 518317520 | RH Vertical Bracket |
| 40 | 518321954 | Panel Fastener |
| 41 | 518317531 | RH Holding Toe |
| 42 | 224061201 | Flat Washer |
| 43 | 207162044 | Hex. Screw M6 X 20 |
| 44 | 518321421 | Heat Shield |
| 45 | 207161644 | Hex. Screw M6 X 16 |
| 46 | 207151444 | Hex. Screw M5 X 14 |
| 47 | 232551414 | Elastic Stop Nut M5 |
| 48 | 518317518 | RH SHOCK BRACKET - Call your local BRP dealership |
| 49 | 207085044 | Hex. Screw M8 X 50 |
| 50 | 207085544 | Hex. Screw M8 X 55 |
| 51 | 233281414 | Hex. Flange Elastic Nut M8 |
| 52 | 232581414 | Hex. Elastic Stop Nut M8 |
| 53 | 503183200 | Yellow, Washer |
| 54 | 210251180 | HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership |
| 55 | 515175149 | Cable Support |
| 56 | 408801900 | TRIDON GEAR CLAMP - Call your local BRP dealership |
| 57 | 515175422 | Tubing 6 mm |
| 517267000 | LH | Tank Bracket 517267000 |
| 518317519 | LH | Shock Bracket 518317519 |
| 518317521 | LH | Vertical Bracket 518317521 |
| 518317523 | LH | Footrest Support 518317523 |
| 518317523 | Support | De Marche-Pied GA 518317523 |
| 518317532 | LH | Holding Toe 518317532 |
| 518317543 | Attache | Supérieure GA 518317543 |
| 518317543 | LH | Upper Bracket 518317543 |
| 518319743 | Attache | De Suspension GA 518319743 |
| 518319743 | LH | Slide Bracket 518319743 |
| 518321434 | Appui-Pied | GA 518321434 |
| 518321434 | LH | Footrest 518321434 |
