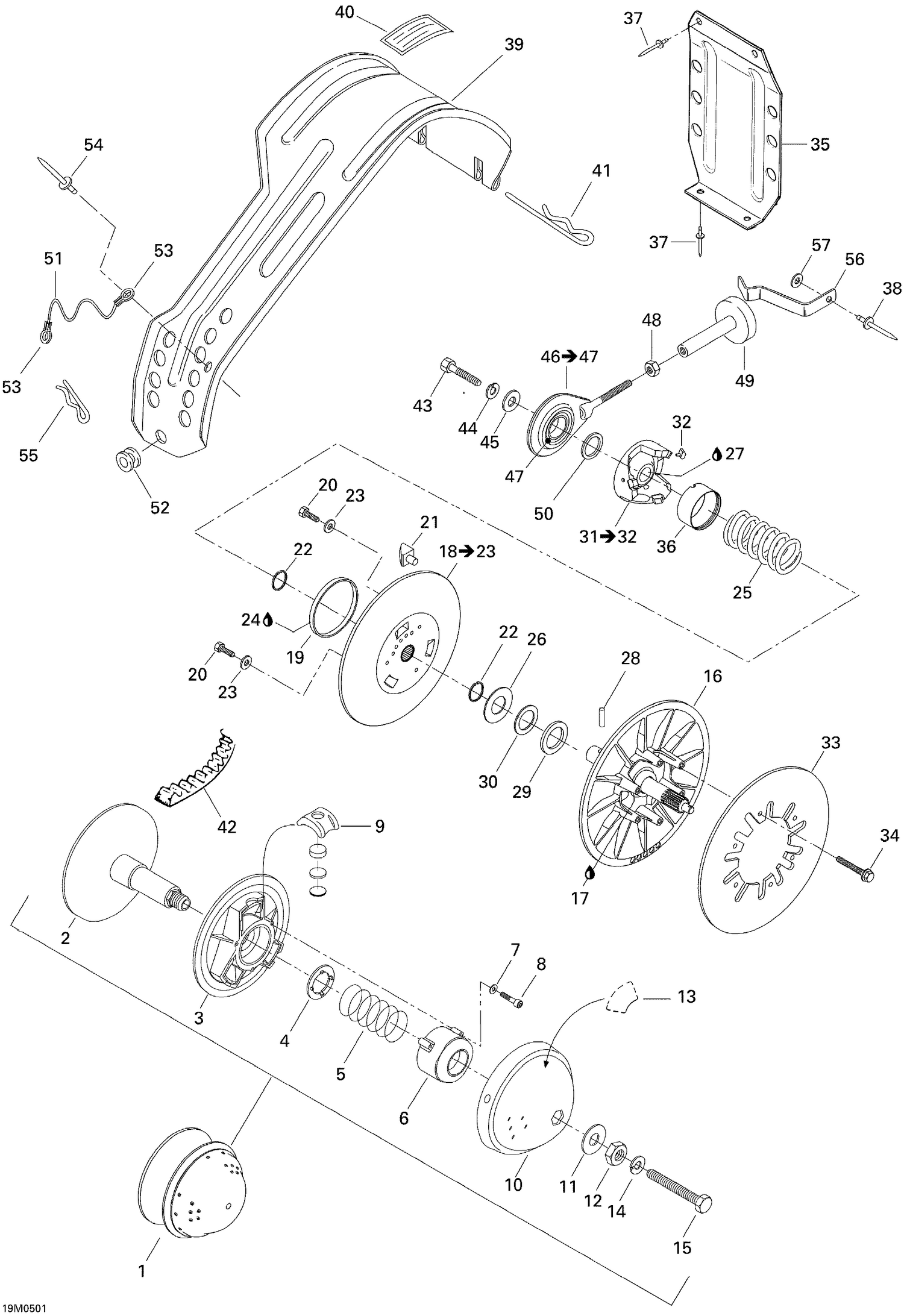

05- Pulley System
Parts (56)
| Ref | Part Number | Description |
|---|---|---|
| 1 | Not | Available As Spare Part - Drive Pulley |
| 2 | 417126691 | INNER FIXED FLANGE - Call your local BRP dealership |
| 3 | 417126693 | SLIDING FLANGE - Call your local BRP dealership |
| 4 | 417126694 | SPRING SEAT - Call your local BRP dealership |
| 5 | 414817500 | CLUTCH SPRING, RED/YELLOW - Call your local BRP dealership |
| 6 | 417126622 | SPRING COVER - Call your local BRP dealership |
| 7 | 420245370 | WASHER - Call your local BRP dealership |
| 8 | 205064086 | Socket Screw M6 X 40 |
| 9 | 417126695 | Unit Block |
| 10 | 417126697 | CAP - Call your local BRP dealership |
| 11 | 417122400 | Washer |
| 12 | 417118300 | NUT - Call your local BRP dealership |
| 13 | 516001247 | Security Label |
| 14 | 392002800 | WASHER-LOCK HELICAL SPRING - Call your local BRP dealership |
| 15 | 417113800 | BOLT - Call your local BRP dealership |
| 16 | 417124500 | Fixed Flange Ass'y |
| 17 | 413703100 | Loctite 609, 10 ml |
| 18 | 417126702 | Sliding Flange Ass'y |
| 19 | 417126397 | BUSHING - Call your local BRP dealership |
| 20 | 210251180 | HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership |
| 21 | 415099400 | BACK UP CAM SHOE - Call your local BRP dealership |
| 22 | 371911100 | Retaining Ring |
| 23 | 399910000 | Flat Washer |
| 24 | 413703100 | Loctite 609, 10 ml |
| 25 | 415094300 | Release Spring |
| 26 | 504150400 | Thrust Washer |
| 27 | 219704461 | LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 28 | 372900500 | DOWEL PIN - Call your local BRP dealership |
| 29 | 504112000 | Shim |
| 30 | 504108200 | SHIM - Call your local BRP dealership |
| 31 | 417126350 | Outer Cam Ass'y |
| 32 | 415094400 | Slide Cam Shoe |
| 33 | 507032100 | BRAKE DISK - Call your local BRP dealership |
| 34 | 210261650 | Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 35 | Not | Available As Spare Part - Rear Belt Guard |
| 36 | 417126349 | Protector |
| 37 | 390402400 | Pop Rivet 3/16" |
| 38 | 390402500 | RIVET_POP 1/8 - Call your local BRP dealership |
| 39 | 417300181 | Belt Guard Ass'y |
| 40 | 516002670 | WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership This part replaces 516001190. |
| 41 | 517164600 | Pin |
| 42 | 414827600 | Drive Belt |
| 43 | 207181644 | Hex. Screw M8 x 16 |
| 44 | 234181401 | Lock Washer 8 mm |
| 45 | 517078700 | WASHER - Call your local BRP dealership |
| 46 | 580593000 | Support Ass'y |
| 47 | 405401000 | BALL BEARING - Call your local BRP dealership |
| 48 | 232081414 | Hex. Nut M8 |
| 49 | 570028300 | Rod Retainer |
| 50 | 504003900 | Spacer |
| 51 | Not | Available As Spare Part - Steel Wire |
| 52 | 414036300 | Grommet |
| 53 | 561502800 | Terminal Ring |
| 54 | 293150102 | Rivet 3/16" |
| 55 | 414575600 | Hair Pin |
| 56 | 414831800 | SPRING - Call your local BRP dealership |
