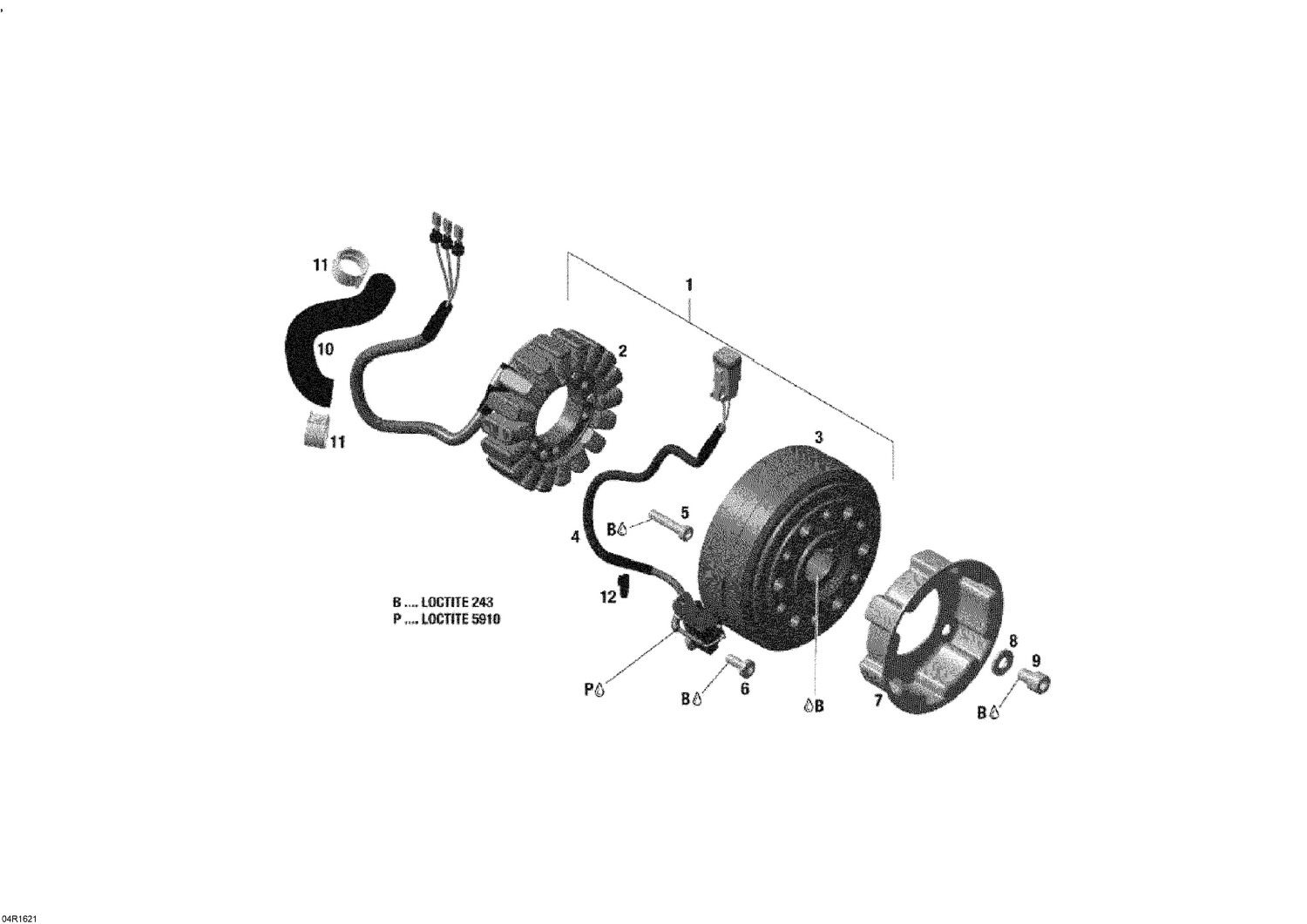

03- Magneto - 600 RS
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| B | Not | Available As Spare Part - Loctite 243 |
| 2 | 420893060 | STATOR PLATE - Call your local BRP dealership |
| 3 | 420665725 | FLYWHEEL - Call your local BRP dealership |
| 4 | 410922951 | Pick-Up |
| 7 | 420852590 | Starting Pulley |
| 8 | 420827405 | Flat Washer |
| 10 | 420460871 | Tube |
| 11 | 420960896 | Conduit Clip |
| 12 | 420866714 | Tie Rap 142x3,2 MM |
