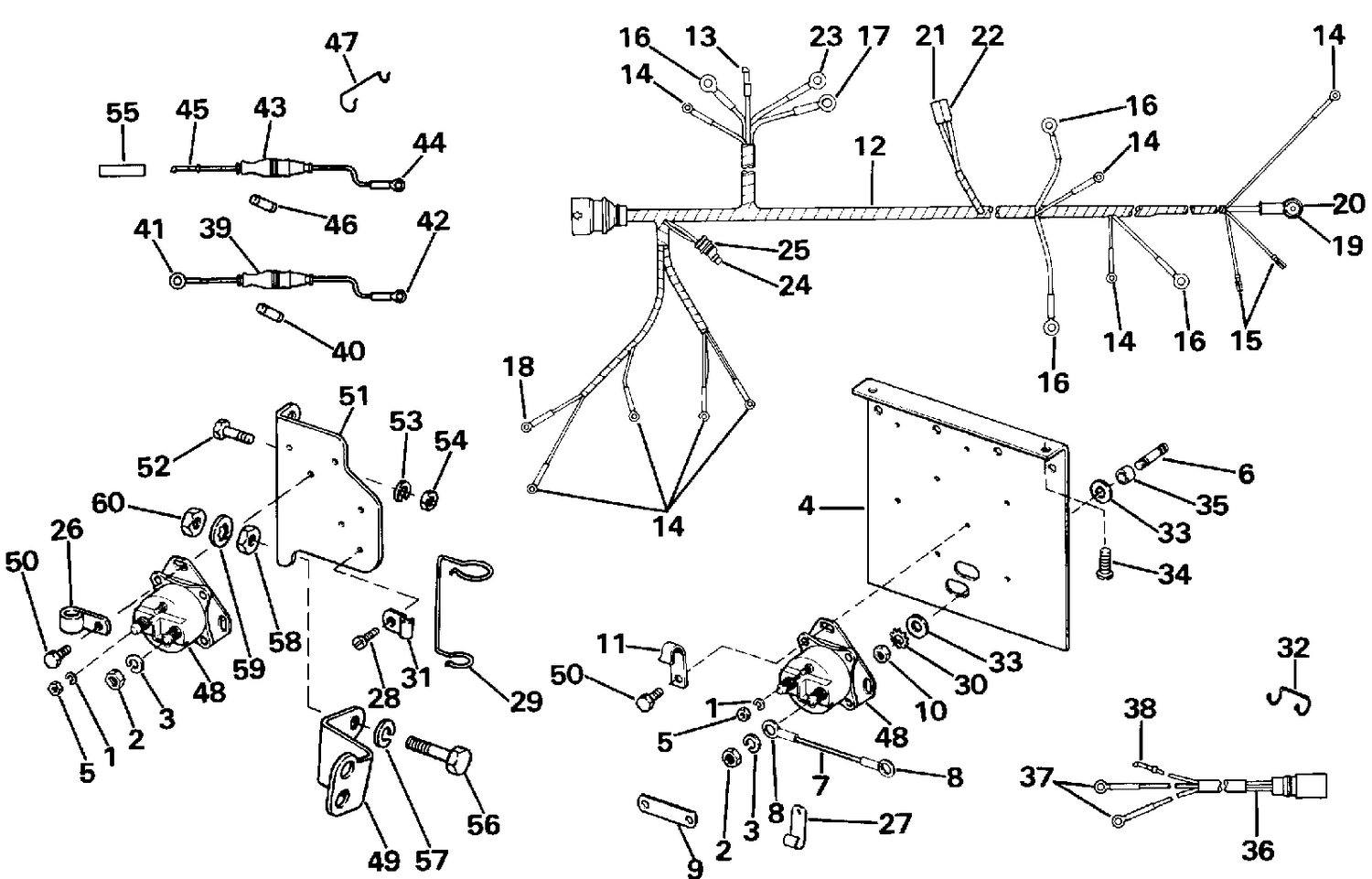

| Ref | Part Number | Description |
|---|
| 4 |
0909451 |
BRACKET |
| 6 |
0910589 |
STUD, Bracket to engine |
| 7 |
0981890 |
LEAAD ASSY |
| 9 |
0909450 |
BUS BAR |
| 11 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309846. |
| 12 |
0983445 |
CABLE ASSEMBLY, Engine |
| 13 |
0314844 |
KNIFE DISCONNECT |
| 17 |
3852527 |
RING TERMINAL This part replaces 0911523. |
| 21 |
0510469 |
TAB |
| 22 |
0510471 |
CONNECTOR |
| 23 |
0910626 |
RING TERMINAL |
| 25 |
0511989 |
CONNECTOR |
| 27 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309846. |
| 31 |
0909424 |
CLAMP |
| 35 |
0909449 |
SPACER, Bracket to engine |
| 36 |
0981307 |
CABLE ASSEMBLY, Trim |
| 39 |
0983321 |
FUSEHOLDER ASSY, Trim & tilt |
| 42 |
3852527 |
RING TERMINAL This part replaces 0911523. |
| 43 |
0983320 |
FUSE HOLDER ASSY, Wire harness |
| 44 |
3852527 |
RING TERMINAL This part replaces 0911523. |
| 45 |
0314844 |
KNIFE DISCONNECT |
| 47 |
3852499 |
RETAINER, Fuse This part replaces 0910330. |
| 48 |
0985063 |
SOLENOID This part replaces 0982187. |
| 49 |
0910206 |
BRACKET, Fuse holder |
| 50 |
0317753 |
SCREW |
| 51 |
0910554 |
BRACKET, Solenoid to engine |
| 52 |
0306555 |
SCREW |
| 55 |
0314936 |
HEAT SHRINK |
| 56 |
0312178 |
SCREW |
| 59 |
0306993 |
L'WASHER,Potentiometer,12 V |
