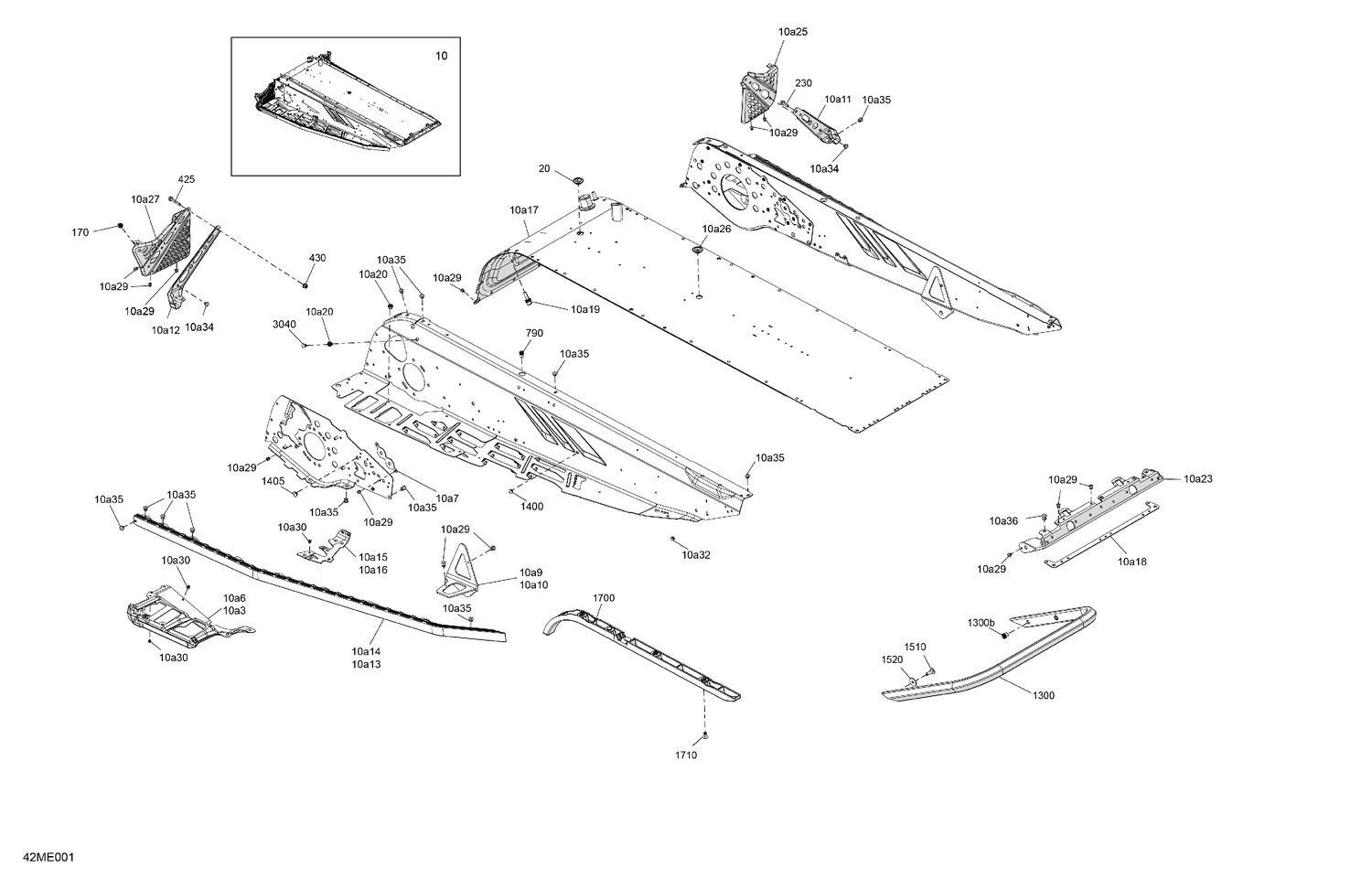

| Ref | Part Number | Description |
|---|
| 10a10 |
518334418 |
RH Rear Suspension Support |
| 10a11 |
518334507 |
Stirrup Reinforcement |
| 10a12 |
518332924 |
Deep Black, LH Chassis Reinforcement |
| 10a13 |
518328451 |
RH Roller |
| 10a14 |
518328452 |
LH Roller |
| 10a15 |
518332296 |
LH Footrest Reinforcement |
| 10a16 |
518332297 |
RH Footrest Reinforcement |
| 10a18 |
518331532 |
Spacer |
| 10a19 |
250300652 |
Protruding Stud M8 x 22 |
| 10a20 |
250100199 |
Insert Half Hex Body M6 x 1.0 |
| 10a23 |
518328990 |
Rear Cap |
| 10a25 |
518333006 |
RH Footrest |
| 10a26 |
293730052 |
Black, Plug |
| 10a27 |
518333858 |
LH Footrest |
| 10a29 |
293150203 |
Rivet Avibulb 3/16 |
| 10a3 |
518330738 |
Deep Black, RH Footrest Reinforcement |
| 10a30 |
293150237 |
Avibulb Rivet 4.8 X 12.1 |
| 10a32 |
293150245 |
Henrob Rivet |
| 10a34 |
293150264 |
Rivet Ornit 6,5 X 10.5 |
| 10a35 |
293150265 |
Rivet Ornit 6,5 X 12.5 |
| 10a36 |
293150267 |
Rivet Ornit 6,5 X 16.5 |
| 10a6 |
518331523 |
Deep Black, LH Footrest Reinforcement |
| 10a7 |
518327233 |
Front Suspension Arm Reinforcement |
| 10a9 |
518334417 |
LH Rear Suspension Support |
| 20 |
293730052 |
Black, Plug |
| 170 |
293450267 |
Insert M5 - 0.8 |
| 230 |
207562056 |
Hex. Flange Screw M6 X 20 |
| 425 |
207562056 |
Hex. Flange Screw M6 X 20 |
| 430 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 790 |
293450278 |
Insert |
| 1300b |
293450275 |
Insert |
| 1400 |
293730047 |
Black, Dart 8 mm |
| 1405 |
293730060 |
Black, Dart 10 mm |
| 1510 |
250000779 |
Torx Screw M6 X 1.0 X 18, Scotch Grip |
| 1520 |
224061201 |
Flat Washer |
| 1700 |
518329982 |
Front Protector |
| 1710 |
293150308 |
Black, Ornit Rivet 3/16 X ,675 This part replaces 293150308. |
