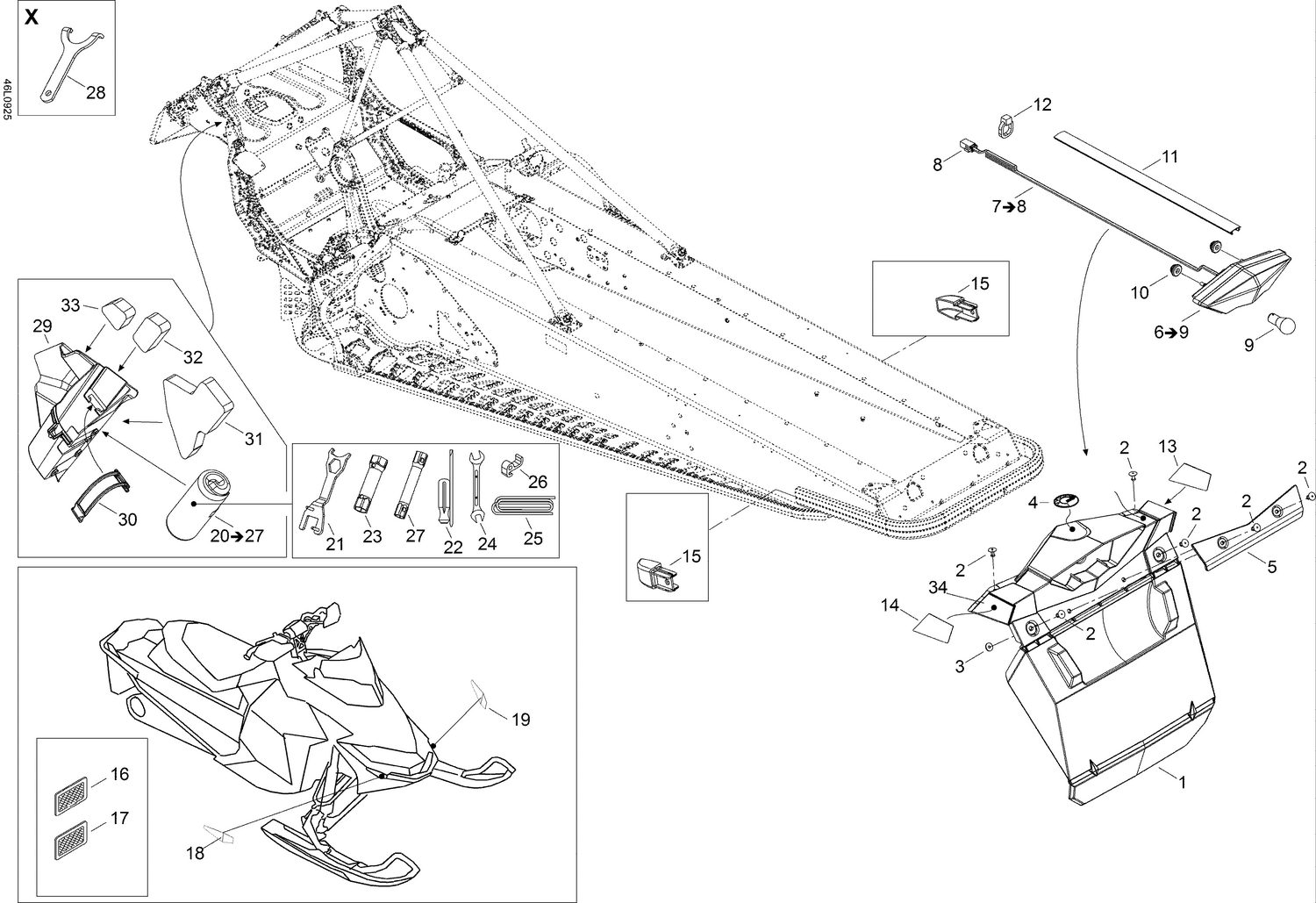

09- Utilities
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 520000788 | Snow Guard |
| 2 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 3 | 517124300 | Washer |
| 4 | 516008738 | Logo 48mm "BRP" This part replaces 219902468. |
| 5 | 520000751 | Reinforcement |
| 8 | 515175494 | Male Housing, 3 Circuits |
| 9 | 520000758 | Bulb |
| 10 | 705014429 | Stopper_Rubber This part replaces 705001119. |
| 11 | 520000829 | Trim |
| 12 | XXX | Not Available As Spare Parts |
| 13 | 520000716 | Rear Reflector |
| 14 | 520000717 | Rear Reflector |
| 15 | 520000567 | Cap |
| 16 | 21118 | Reflector, bright |
| 17 | 21121 | REFLECTOR (YELLOW) - Call your local BRP dealership |
| 18 | 520000718 | RH Front Reflector |
| 19 | 520000719 | LH Front Reflector |
| 21 | 520000721 | WRENCH - Call your local BRP dealership |
| 22 | 529000004 | SCREWDRIVER - Call your local BRP dealership |
| 23 | 529014800 | Socket Wrench 21/26 mm |
| 24 | 529000002 | FORK WRENCH, 10/13 MM - Call your local BRP dealership |
| 25 | 412500200 | Starter Rope 2200 mm, Meter |
| 26 | 529000060 | Starter Grip This part replaces 529019400. |
| 27 | Not | Available As Spare Part - Socket Wrench 16/18 mm |
| 28 | 529035582 | ADJUSTMENT WRENCH - Call your local BRP dealership |
| 29 | 520000842 | Tool Kit Rack |
| 30 | 520000528 | Latch |
| 31 | 520001059 | Foam This part replaces 520000743. |
| 32 | 520001061 | Foam This part replaces 520000753. |
| 33 | 520001062 | Foam This part replaces 520000754. |
