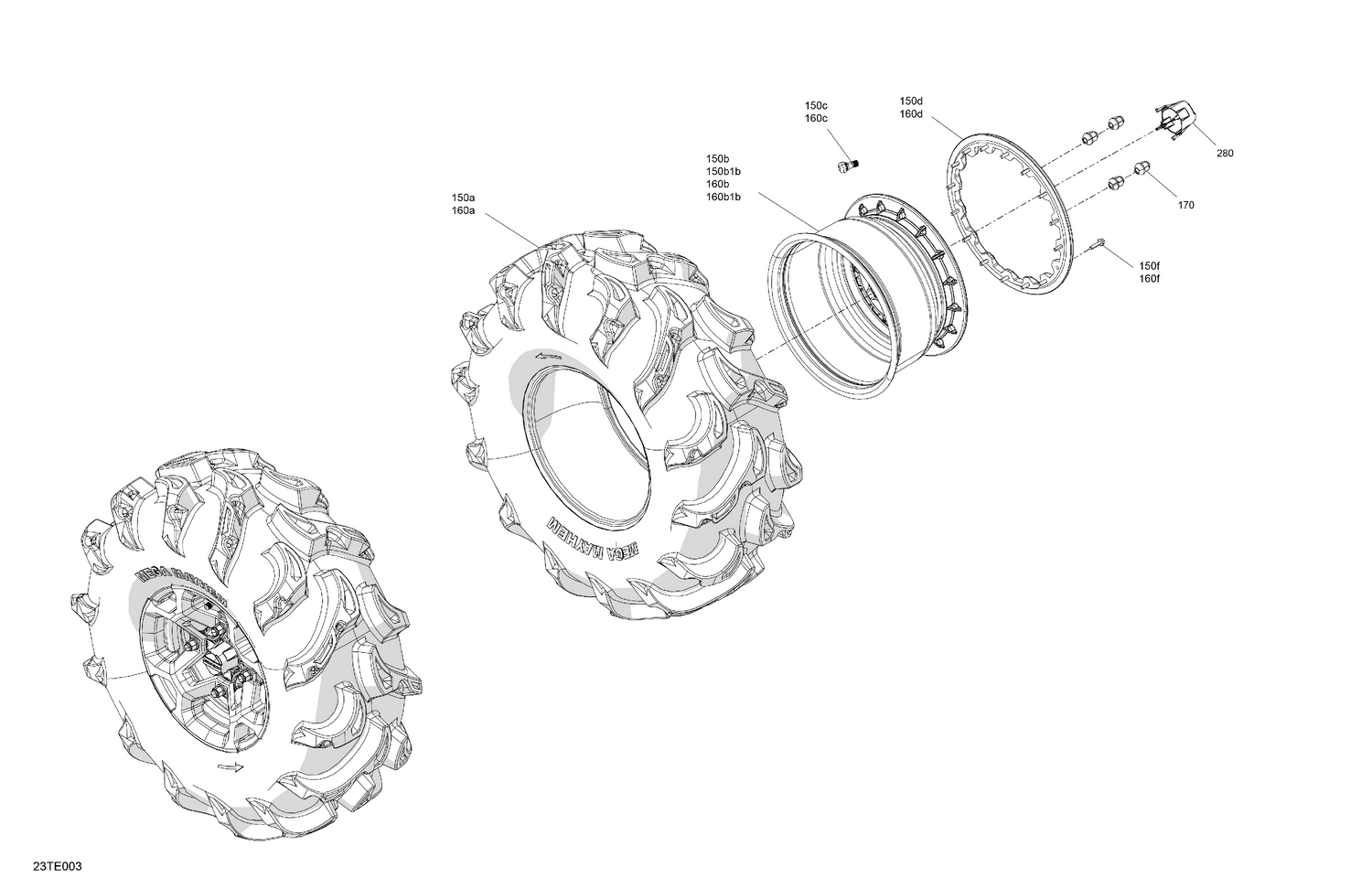

04- Drive - Rear Wheels
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 150a | 705502645 | Tire |
| 150b1b | 293450317 | Insert |
| 150c | 705402595 | Tire Valve Ass'y |
| 150d | 705401811 | Orange Reinforcement Disk |
| 150f | 250000787 | Hex. Flange Screw M6 X 25 |
| 160a | 705502645 | Tire |
| 160b1b | 293450317 | Insert |
| 160c | 705402595 | Tire Valve Ass'y |
| 160d | 705401811 | Orange Reinforcement Disk |
| 160f | 250000787 | Hex. Flange Screw M6 X 25 |
| 170 | 250100184 | Black, Wheel Nut M10 X 1.25 |
