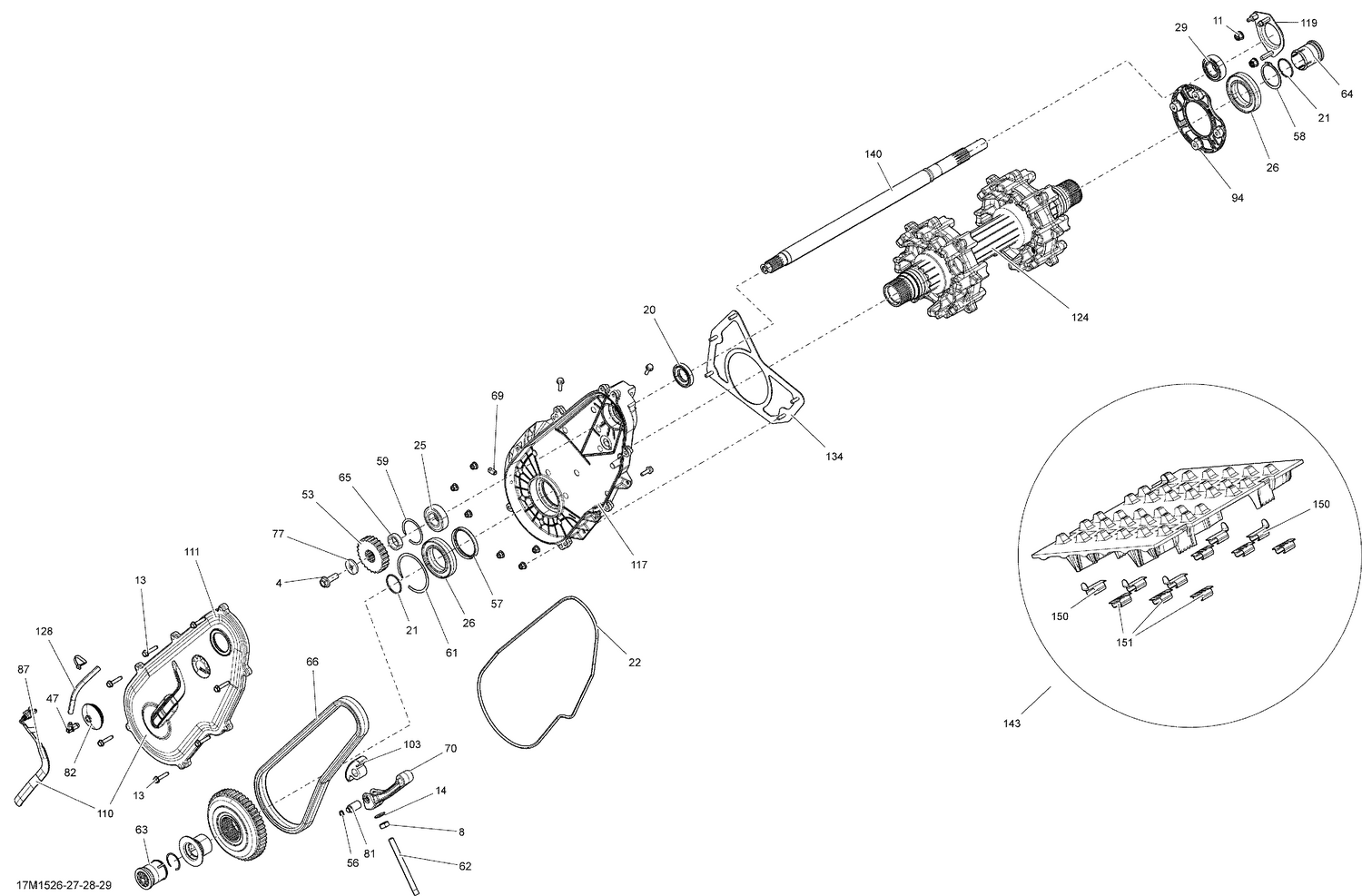

05- Drive System _17M1526
Parts (42)
| Ref | Part Number | Description |
|---|---|---|
| 4 | 207503046 | Hex. Flange Screw M10 X 30, Scotch Grip |
| 8 | 232006414 | Hex. Nut M10 X 1.5 |
| 11 | 233281414 | Hex. Flange Elastic Nut M8 |
| 13 | 250000360 | Hex. Flange Screw M6 X 1.0 X 30 |
| 14 | 250200100 | Bonded Washer |
| 20 | 293200168 | Oil Seal This part replaces 293250175. |
| 21 | 293300122 | O-Ring |
| 22 | 293300130 | Tight Seal |
| 25 | 293350115 | Ball Bearing This part replaces 293350055. |
| 26 | 293350059 | Ball Bearing |
| 29 | 293350074 | Ball Bearing |
| 47 | 414580700 | Male Connector |
| 53 | 504152031 | Sprocket, 19 Teeth |
| 56 | 504152282 | Circlip |
| 57 | 293200159 | Oil Seal This part replaces 504152571. |
| 58 | 504152572 | Circlip |
| 59 | 504152576 | Circlip |
| 60 | 861805538 | Kit Sprocket This part replaces 504152593. |
| 61 | 504152582 | Circlip |
| 62 | 504152602 | Adjustment Screw |
| 63 | 504152619 | Magnetic Cap |
| 64 | 504152619 | Magnetic Cap |
| 65 | 504152628 | Shim |
| 66 | 504152579 | Drive Chain, 102 Links |
| 69 | 504152636 | Magnetic Plug 1/8 - 27 NPTF |
| 70 | 504153429 | Tensioner chain This part replaces 504152685. |
| 77 | 504152784 | Spring Washer M10 |
| 81 | 504152841 | Tensioner Axle |
| 82 | 504152860 | Cap |
| 87 | 504152896 | Rotation Sensor |
| 94 | 504153886 | Retaining Ring This part replaces 504152949. |
| 103 | 504152739 | Slider Chain |
| 110 | 504153147 | Chaincase Cover Ass'y |
| 111 | 504153151 | Casting Cover |
| 117 | 504153181 | Chaincase |
| 119 | 504153185 | Bearing Housing |
| 124 | 504154054 | Drive Axle Ass'y This part replaces 504153083. |
| 128 | 219704410 | Polyurethane Hose 10000Mm Long |
| 134 | 518325816 | Plate |
| 140 | 504153000 | Countershaft |
| 143 | 504154391 | Track 16 X 154 X 1,5 This part replaces 504152761. |
| 150 | XXX | Not Available As Spare Parts |
