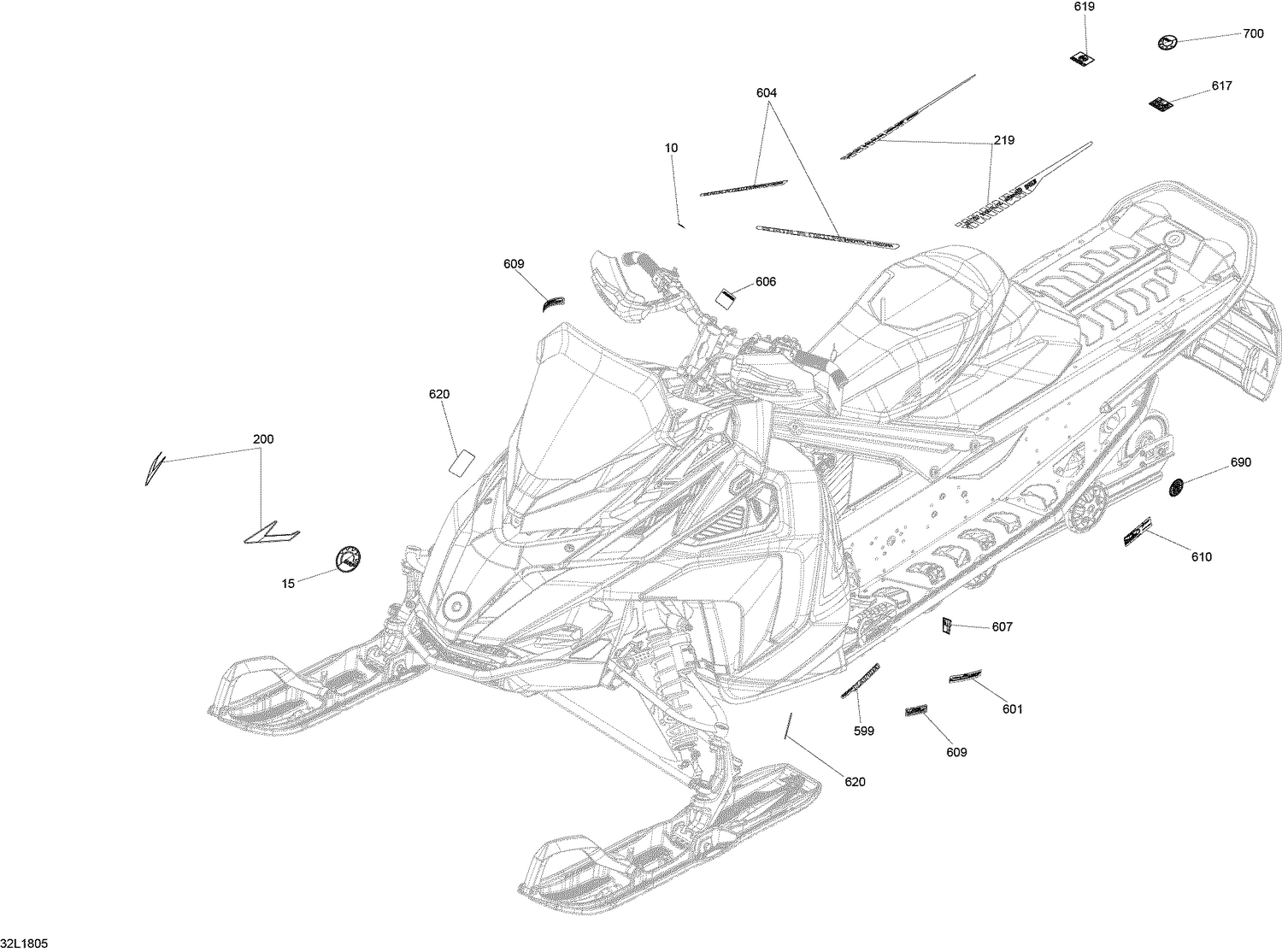

09- Decals Rave Engine 600 RS
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 516006224 | BRP Logo, 20 mm |
| 15 | 516008739 | Logo 68mm "BRP" This part replaces 516006888. |
| 200 | 516008466 | LH/RH Upper Side Panel Decal |
| 219 | 516008808 | Decal, Tunnel, Sponsors, Lh/rh |
| 599 | 516006331 | Rotax Power Decal |
| 601 | 516006805 | Black, PPS Decal |
| 604 | 516008459 | Decal, Radien Platform, Lh/rh |
| 606 | 5447012 | Oil Checking Label |
| 607 | 516003919 | Warning Decal |
| 609 | 516006903 | Hot Parts Decal |
| 610 | 516008588 | Decal Track Tension |
| 617 | 516008483 | Decal Safety Warning |
| 619 | 516007584 | Warning Decal |
| 620 | 516008727 | Instruction Decal Close Latch |
