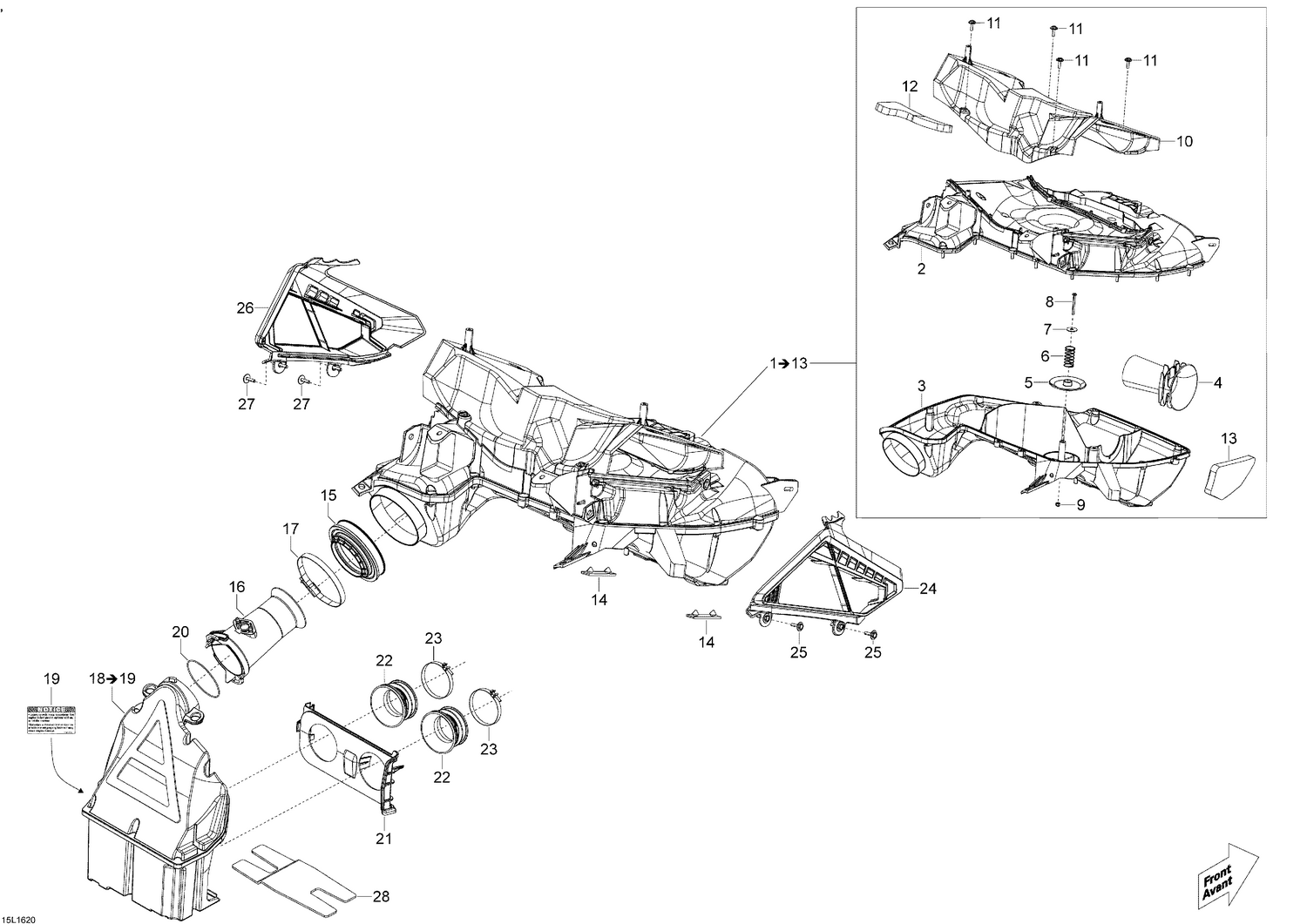

02- Air Intake System
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 2 | Not | Available As Spare Part - Shell Upper |
| 3 | Not | Available As Spare Part - Shell Lower |
| 4 | Not | Available As Spare Part - Front Baffle |
| 5 | Not | Available As Spare Part - Check Valve |
| 6 | Not | Available As Spare Part - Spring |
| 7 | 224060201 | Flat Washer |
| 8 | 205444086 | Socket HD Screw M4 x 40 |
| 9 | 232541414 | Elastic Stop Nut M4 |
| 10 | 508000732 | Air Duct |
| 11 | 250000725 | Screw M4 X 16 |
| 12 | Not | Available As Spare Part - Foam |
| 13 | Not | Available As Spare Part - Foam |
| 14 | 508000744 | Stopper |
| 15 | 508000567 | Intake Adaptor |
| 16 | 508000662 | Flute |
| 17 | 514052924 | Gear Clamp |
| 19 | 516005876 | Air Intake Instruction Label |
| 20 | 293300115 | O-Ring |
| 21 | 508000613 | Adapter Plate |
| 22 | 508000614 | Air Intake Adapter |
| 23 | 508000346 | Clamp |
| 24 | 508000730 | RH Air Filter |
| 25 | 250000725 | Screw M4 X 16 |
| 26 | 508000731 | LH Air Filter |
| 27 | 250000725 | Screw M4 X 16 |
