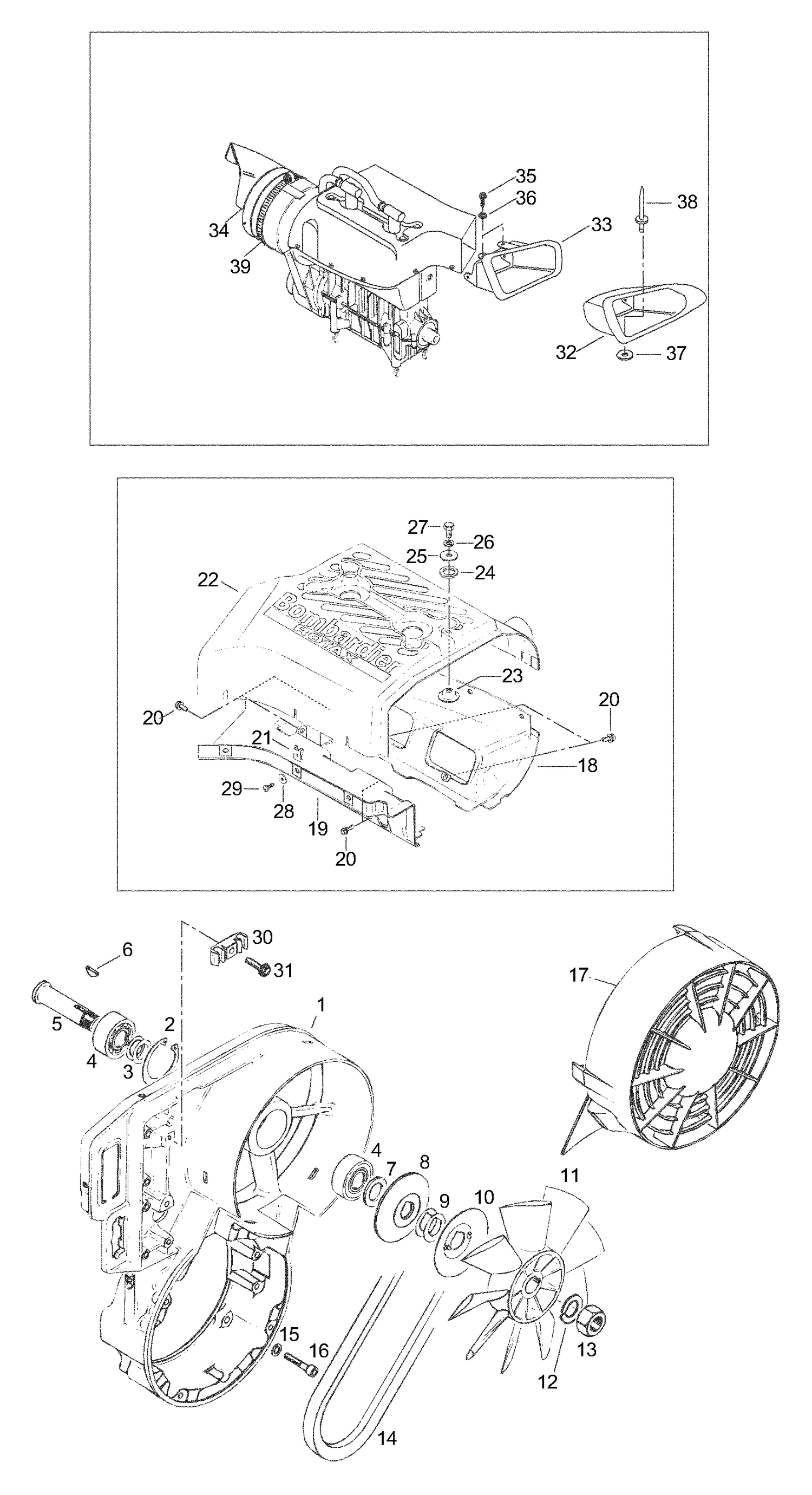

01- Fan Housing
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420811262 | Fan housing |
| 2 | 420945880 | Retaining ring |
| 3 | 420244585 | Shim |
| 4 | 420832161 | Ball Bearing This part replaces 405406100. |
| 5 | 420937941 | Fan Axle This part replaces 420937940. |
| 6 | 420246015 | Woodruff Key |
| 7 | 420827650 | Distance sleeve |
| 8 | 420980496 | Belt disk |
| 9 | 420827080 | Adj.washer 0.5 |
| 9 | 420827082 | Adj.washer 0.2 |
| 10 | Not | Available As Spare Part - Protection washer - DOES NOT APPLY TO THIS MODEL |
| 11 | 420866295 | Fan |
| 12 | 420945756 | Spring washer |
| 13 | 420942289 | Nut M16 This part replaces 420942285. |
| 14 | 414630700 | V-belt |
| 15 | 20052 | Spring washer |
| 16 | 205063044 | Allen screw M6x30 |
| 17 | 420975740 | Fan cover |
| 18 | 420810554 | Lower cowl (exhaust) |
| 19 | 420810797 | Lower cowl |
| 20 | 420240580 | TAPTITE SCREW M6 X 16 - Call your local BRP dealership |
| 21 | 417300005 | SPRING NUT U #10-24 - Call your local BRP dealership |
| 22 | 420810608 | Upper case |
| 23 | 420827817 | Cup washer |
| 24 | 420960865 | Rubber washer |
| 25 | 420227936 | Washer This part replaces 420227935. |
| 26 | 20014 | Lock washer |
| 27 | 207181644 | Screw M8x16 |
| 28 | 420926180 | FLAT WASHER - Call your local BRP dealership |
| 29 | 417300006 | Selftapping screw |
| 30 | 420860940 | CLAMP - Call your local BRP dealership |
| 31 | 420941251 | SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250. |
| 32 | 5245797 | Outlet Duct |
| 33 | 572098000 | Outlet duct |
| 34 | 572058400 | Air deflector |
| 35 | 40870 | HEX. TAPING SCREW - Call your local BRP dealership |
| 36 | 732900047 | SERRATED LOCK WASHER M5 - Call your local BRP dealership |
| 37 | 20008 | Washer |
