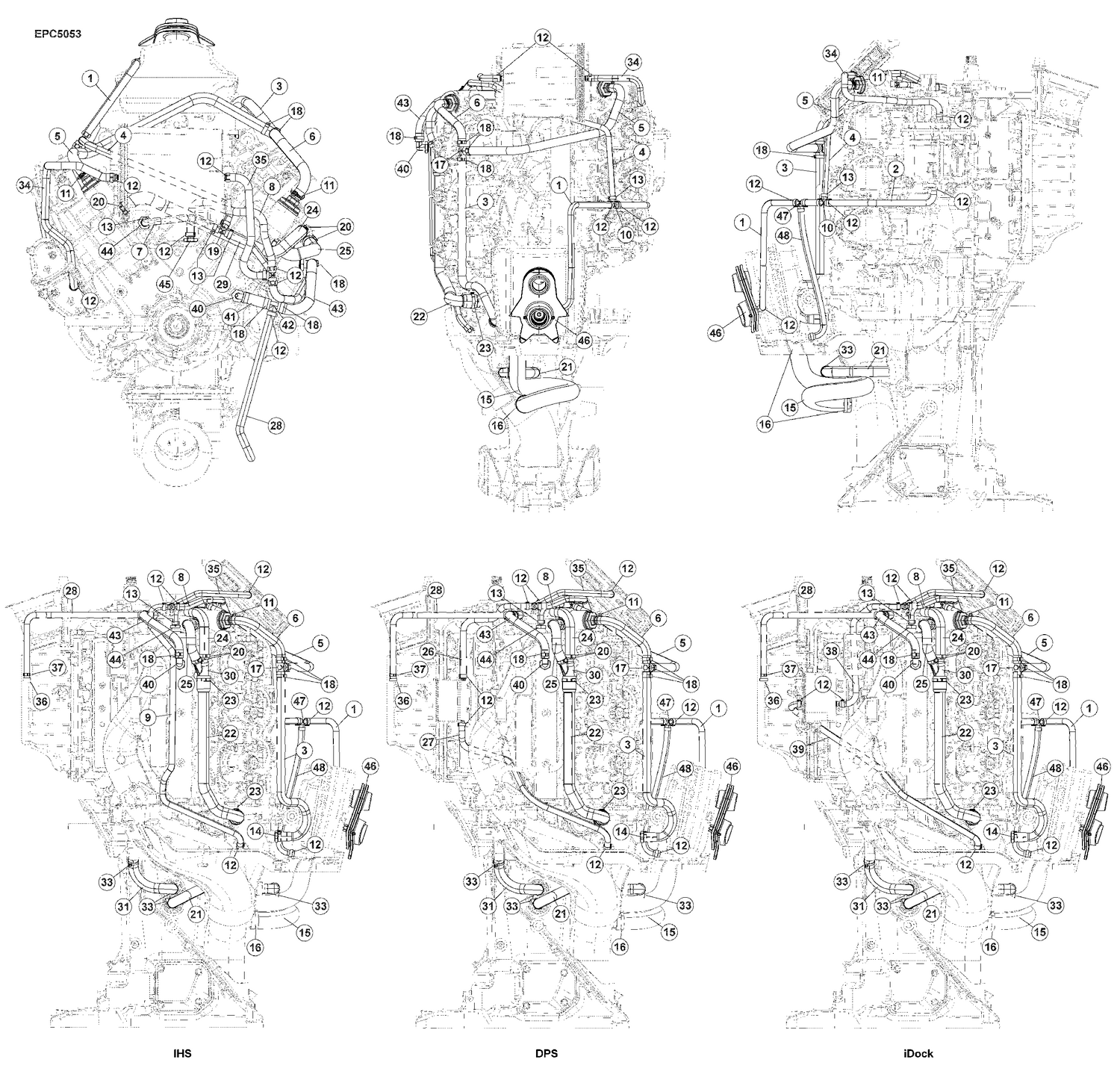

05-7_COOLING HOSES
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 0357524 | FITTING, TEE |
| 16 | 0351862 | COLLIER, 42,5 mm |
| 18 | 0346151 | COLLIER 21,0 mm |
| 19 | 0357527 | FITTING, TEE – 0.25 inch |
| 22 | 0363153 | HOSE, |
| 30 | 0362970 | FITTING, Y |
| 33 | 0320107 | ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 34 | 0361100 | HOSE, Cooling water - in |
| 35 | 0357736 | HOSE, Preformed - Tee fitting to EMM |
| 36 | 0357318 | PLUG |
| 42 | 0360795 | TEE |
| 46 | 0360653 | GROMMET ASSEMBLY, Exhaust Relief |
