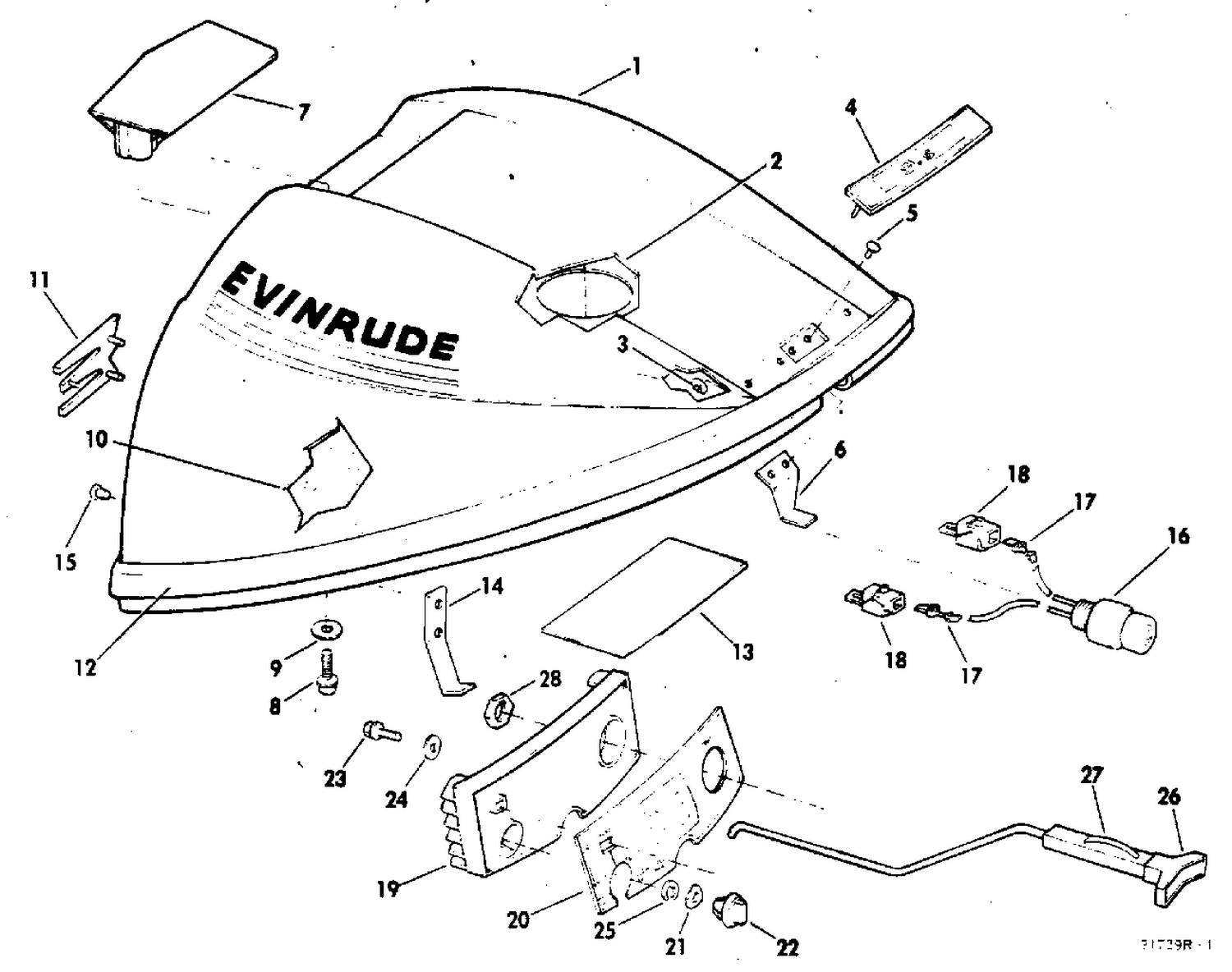

MOTOR COVER GROUP
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0279040 | MOTOR COVER ASSEMBLY |
| 2 | 0205213 | SOUND BLANKET, Top |
| 4 | 0206090 | APPLIQUE, Front |
| 6 | 0205233 | HOOK, Front |
| 7 | 0278755 | TILE HANDLE & SCREW ASSY |
| 8 | 0312299 | VIS, serre-câble |
| 9 | 0306407 | LOCCKWASHER,Cover latch |
| 10 | 0205214 | SOUND BLANKET, Side |
| 11 | 0206188 | EMBLEM, Cover, rear |
| 12 | 0206097 | SEAL, Motor cover |
| 13 | 0314595 | CASE, Owner card |
| 14 | 0205702 | HOOK, Rear upper |
| 15 | 0315705 | RIVERT,Rear hook |
| 16 | 0379638 | SHORTENING SWITCH ASSY |
| 19 | 0314938 | CONTROL PANEL |
| 20 | 0206299 | PLATE, Control panel |
| 21 | 0309750 | RONDELLE, ressort - Tige soupape d'échappement |
| 22 | 0206298 | ADJUSTING KNOB |
| 23 | 0312299 | VIS, serre-câble |
| 26 | 0278788 | KNOB & ROD,Choke |
| 27 | 0312482 | SPRING, Choke knob |
| 0279116 | 0279116 | DECAL SET |
