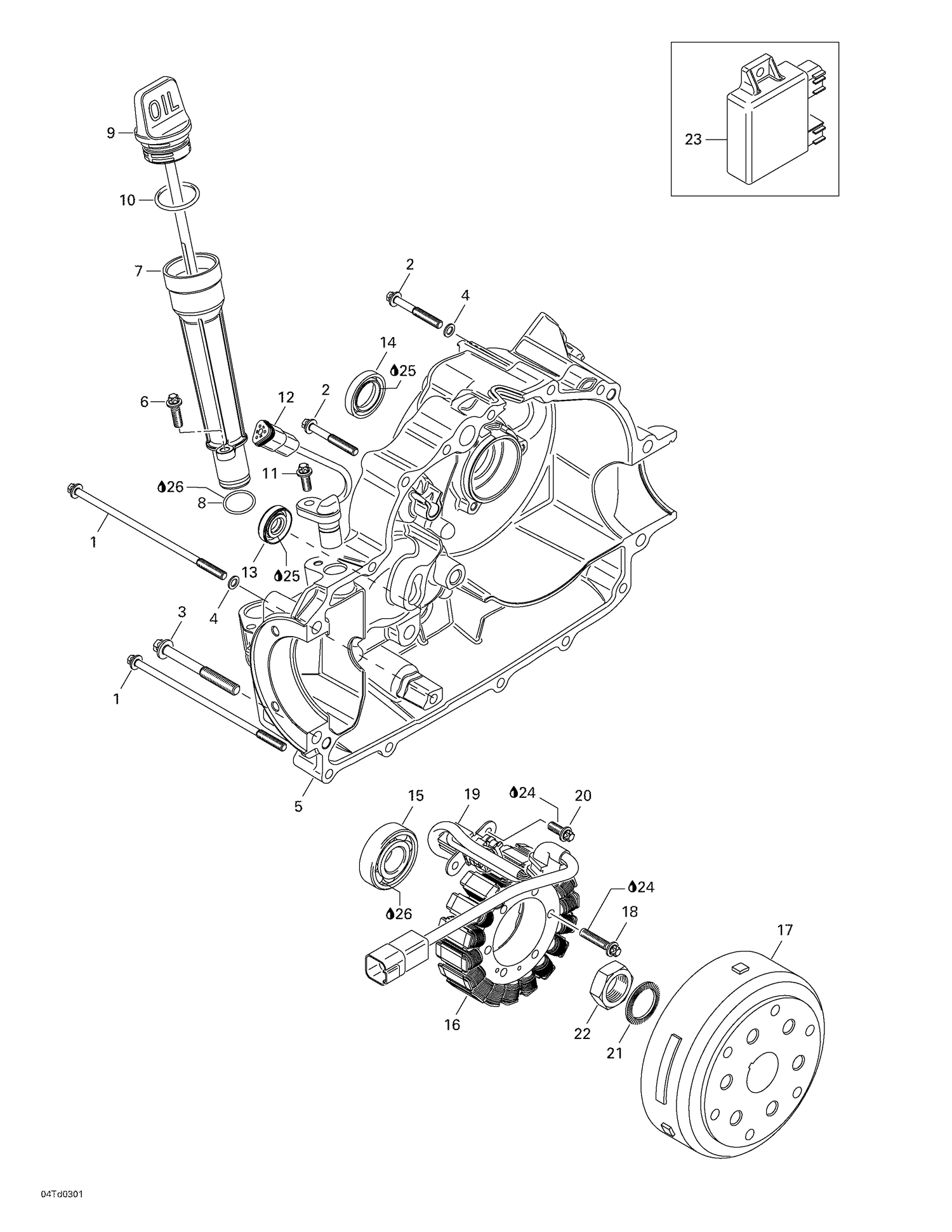

| Ref | Part Number | Description |
|---|
| 1 |
711641423 |
Torx Flange Screw M6 x 130 |
| 3 |
711640333 |
Torx Flange Screw M8 x 65 |
| 4 |
404146600 |
Sealing Washer |
| 5 |
Not |
Available As Spare Part - Magneto Cover (See Crankcase) |
| 6 |
420641238 |
Torx Flange Screw M6 X 25 This part replaces 711641233. |
| 7 |
711956980 |
Dipstick Tube |
| 8 |
711630430 |
O-RING - Call your local BRP dealership |
| 9 |
711956895 |
Dipstick |
| 10 |
420430590 |
O-ring This part replaces 711430590. |
| 11 |
711641043 |
Torx Flange Screw M6 x 16 |
| 12 |
420265727 |
Camshft Position Sensor Ass'y This part replaces 711265622. |
| 13 |
Not |
Available As Spare Part - Oil Seal (See Crankcase) |
| 14 |
Not |
Available As Spare Part - Oil Seal (See Crankcase) |
| 15 |
Not |
Available As Spare Part - Ball Bearing (See Crankcase) |
| 16 |
711296630 |
GENERATOR - Call your local BRP dealership |
| 17 |
Not |
Available As Spare Part - Rotor |
| 18 |
420641258 |
Torx Flange Screw M6 X 35 This part replaces 711641253. |
| 19 |
711260870 |
Cable Cover |
| 20 |
711641043 |
Torx Flange Screw M6 x 16 |
| 21 |
711845510 |
Washer |
| 22 |
420242012 |
Hex. Nut M24 This part replaces 711242950. |
| 23 |
711265820 |
Amplifier box |
| 24 |
293800060 |
Loctite 243, 10 ml |
| 25 |
293550030 |
Grease, Super Lube This part replaces 293550014. |
