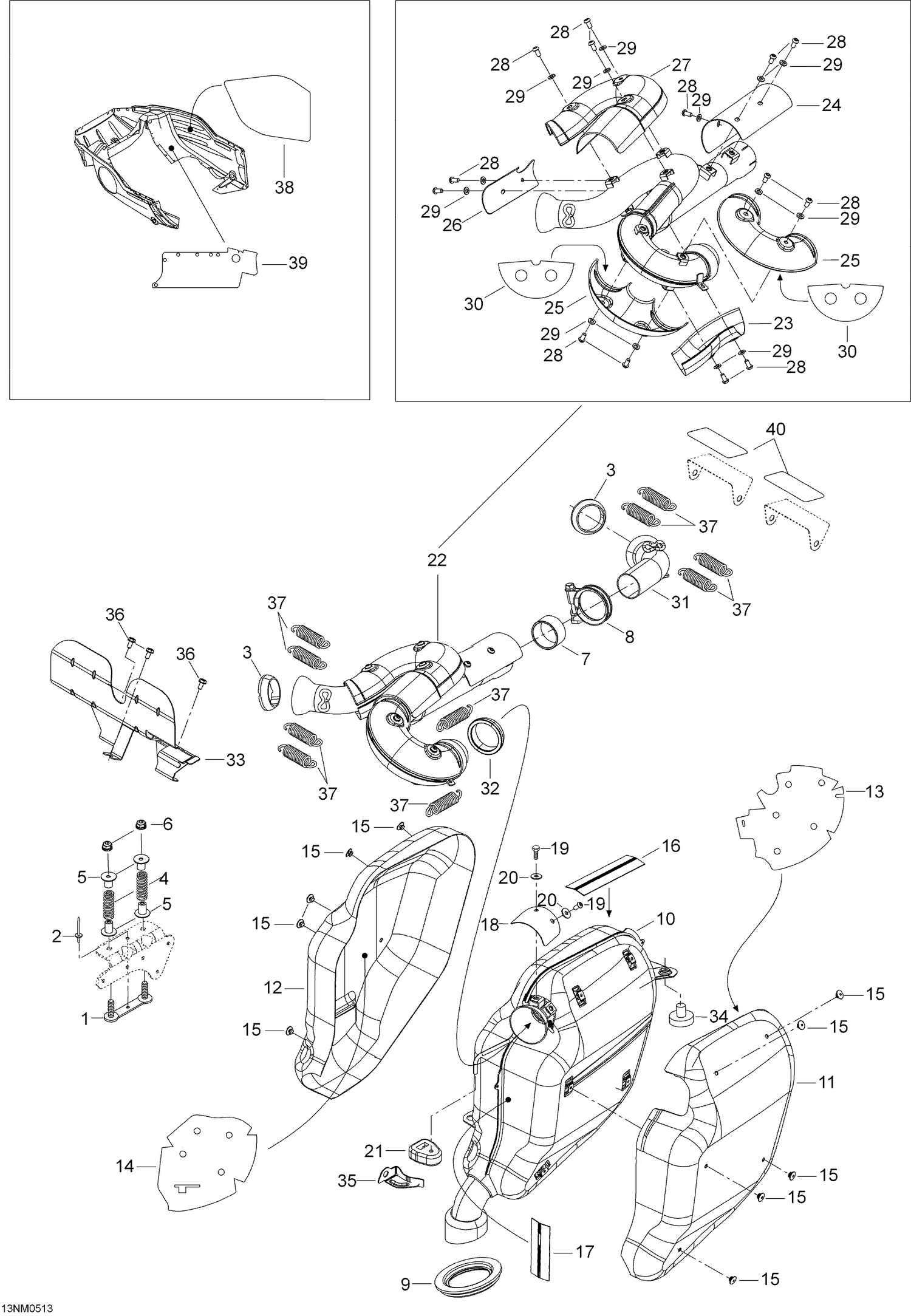

01- Exhaust System
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5447628 | Bracket |
| 2 | 36489 | Rivet TSPD68 4.8x12 (1 PAC <=> 50 PC) - Call your local BRP dealership |
| 3 | 707601033 | Gasket This part replaces 514053532. |
| 4 | 414913700 | SPRING - Call your local BRP dealership |
| 5 | 514053343 | GUIDE - Call your local BRP dealership |
| 6 | 33029 | Lock nut M8 |
| 7 | 514053580 | PIPE GASKET - Call your local BRP dealership |
| 8 | 514053521 | Clamp |
| 9 | 514053064 | Exhaust grommet |
| 11 | 514053661 | R.H. heat shield |
| 12 | 514053293 | LH HEAT SHIELD - Call your local BRP dealership |
| 13 | 514053705 | R.H. Isolering |
| 14 | 514053295 | L.H. Isolering |
| 15 | 390910000 | Rivet |
| 16 | 514053659 | Isolering |
| 17 | 514053660 | Isolering |
| 18 | 514053706 | Heat protector |
| 19 | 250000436 | Socket Screw Button Head M6 X 10 This part replaces 205461060. |
| 20 | 234062600 | Washer |
| 21 | 514052704 | RUBBER BUMPER - Call your local BRP dealership |
| 23 | 514053626 | Heat protector |
| 24 | 514053529 | Heat protector |
| 25 | 514053530 | Heat protector |
| 26 | 514053701 | Heat protector |
| 27 | 514053531 | Heat protector |
| 28 | 250000436 | Socket Screw Button Head M6 X 10 This part replaces 205461060. |
| 29 | 234062600 | Washer |
| 30 | 514053625 | Isolering |
| 31 | 514053528 | Tune pipe, front |
| 32 | 514054174 | Exhaust Gasket This part replaces 514053582. |
| 33 | 514053583 | Heat shield |
| 34 | 514053654 | Rubber Bumper This part replaces 570048700. |
| 35 | 514053442 | SUPPORT - Call your local BRP dealership |
| 36 | 40327 | Screw M6 x 12 |
| 37 | 415107100 | Spring |
| 38 | 514053628 | REFLECTIVE SHEET - Call your local BRP dealership |
| 39 | 514053390 | REFLECTIVE SHEET - Call your local BRP dealership |
