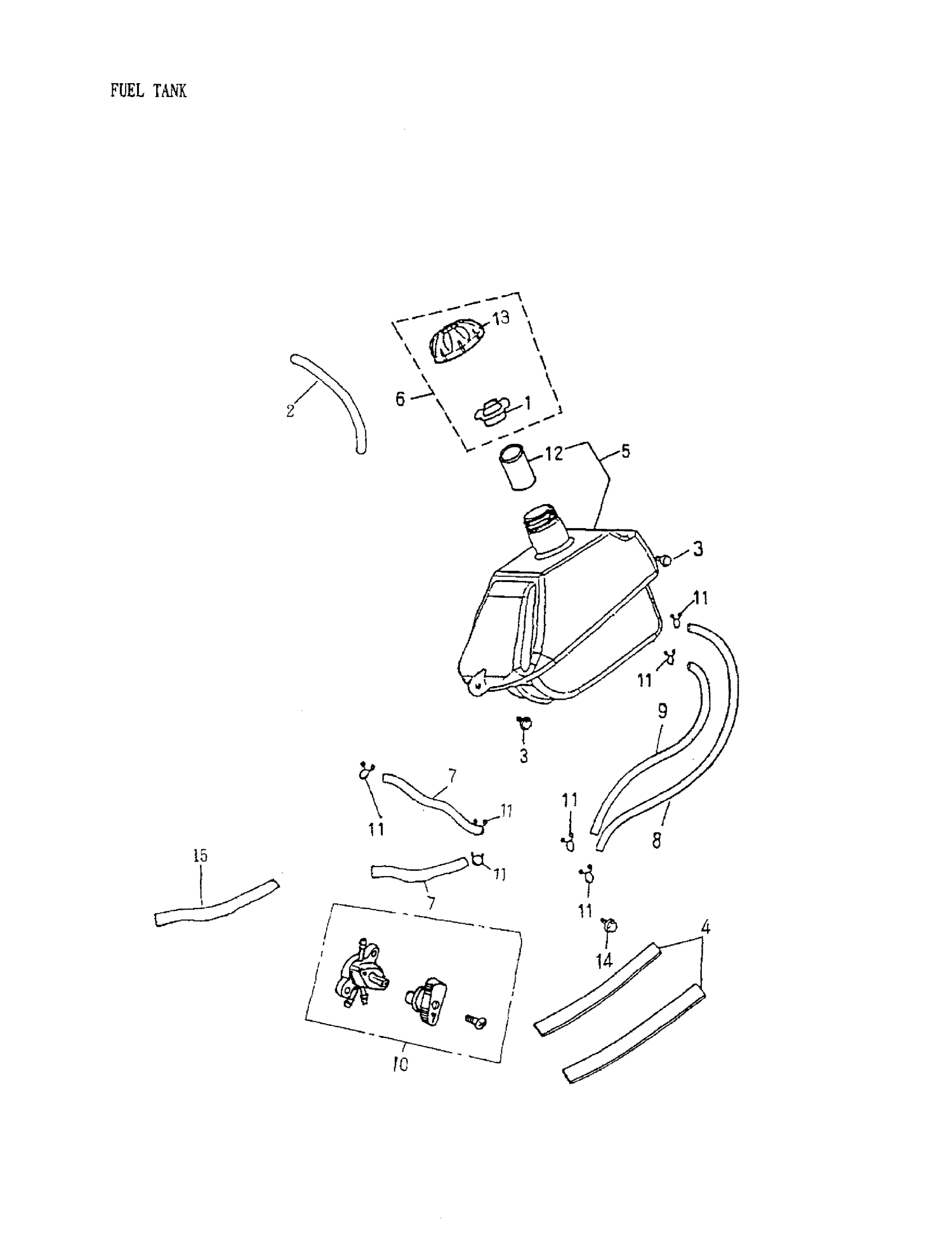

02- Fuel Tank 172-19
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | A17631145000 | Fuel Tank Cap Gasket |
| 2 | A944000408355 | BREATHER HOSE - Call your local BRP dealership |
| 3 | A920000601410 | HEXAGONAL BOLT M6 X 14 - Call your local BRP dealership |
| 4 | A1750514500A | SPONGE PAD - Call your local BRP dealership |
| 5 | A17500155000 | Fuel Tank Comp. |
| 6 | A1762014500A | FUEL TANK CAP ASSY. - Call your local BRP dealership |
| 7 | A944000408182 | Fuel Tube |
| 8 | A944000408300 | FUEL TUBE - Call your local BRP dealership |
| 9 | A944000408280 | FUEL TUBE - Call your local BRP dealership |
| 10 | A16950152000 | Fuel Cup |
| 11 | A9451008000 | Clip |
| 12 | A17633145000 | FUEL TANK TUBE - Call your local BRP dealership |
| 13 | A1762114500A | FUEL TANK CAP BODY - Call your local BRP dealership |
| 14 | A960000601210G | HEXAGONAL WASHER FACE BOLT M6X12 - Call your local BRP dealership |
