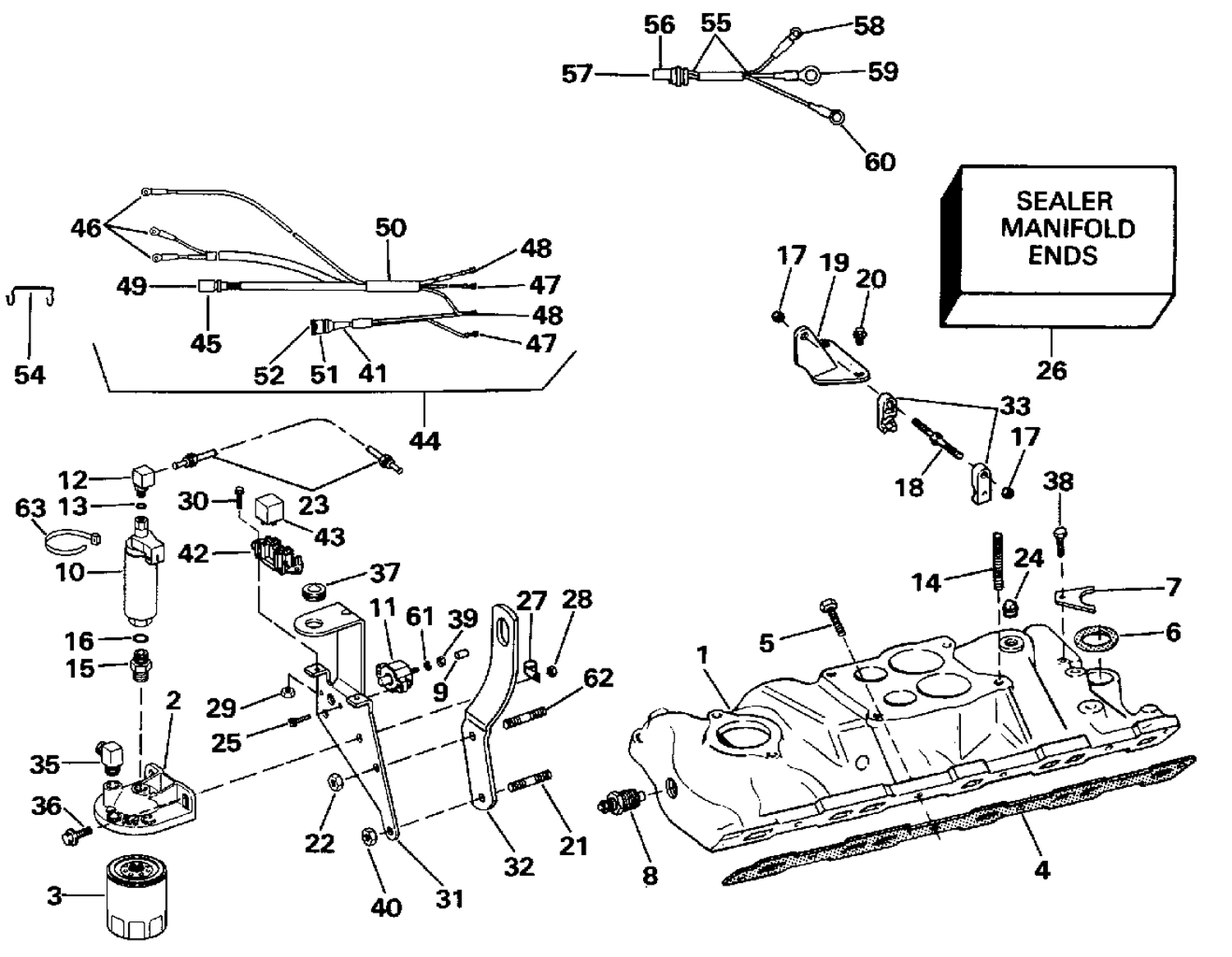

INTAKE MANIFOLD & FUEL PUMP

INTAKE MANIFOLD & FUEL PUMP

Parts (47)

RefPart NumberDescription
1 0986073 MANIFOLD, Intake
1 3854100 MANIFOLD, Intake This part replaces 0987300.
2 3850861 COVER & FUEL FILTER ASSY This part replaces 0987256.
3 5012363 Filter Ay This part replaces 0987754.
4 3854095 Gasket Set This part replaces 0987295.
4 3854096 GASKET SET, Intake manifold This part replaces 0987296.
5 3854653 BOLT, Intake manifold, short This part replaces 0915706.
6 0312780 GASKET, Dist. to manifold
7 3852108 CLAMP, Distributor This part replaces 0312778.
8 3854710 SWITCH, Water temperature This part replaces 0986887.
9 3853537 CAP, Breaker assy This part replaces 0915701.
10 3850818 Elec Fuel Pump Kit This part replaces 0987701.
11 3854282 BREAKER, Fuel pump This part replaces 0987703.
12 3853494 FITTING This part replaces 0915288.
13 3850820 O-RING This part replaces 0915353.
14 3853373 STUD, Carb. to adaptor This part replaces 0914939.
15 3853493 FITTING, Filter outlet to pump This part replaces 0915286.
18 3850682 STUD, Anchor block This part replaces 0914682.
19 0914589 BRACKET, Ignition module
19 0915134 BRACKET, Throttle cable
20 0309942 SCREW, Anchor bracket
21 0312974 STUD, Adapter housing
22 3853404 NUT, Exhaust manifold This part replaces 0915013.
23 3854073 Fuel Line Assembly This part replaces 0987177.
23 3854074 FUEL LINE, Fuel pump to carb. This part replaces 0987178.
24 3852666 PLUG, Intake manifold This part replaces 0912993.
25 3853620 SCREW, Circuit breaker This part replaces 0915982.
26 0914372 SEALER, Manifold ends
27 3852458 CLAMP, Oil drain tube This part replaces 0908750.
28 0314898 L'NUT, Stud, alt frt
31 3856439 BRACKET, Fuel filter & pump This part replaces 0915287.
32 3854377 BRACKET, Cylinder head This part replaces 0914543.
33 3852836 ANCHOR BLOCK This part replaces 0913795.
35 0174179 ELBOW, Filter inlet
36 3853326 SCREW, Bracket to engine This part replaces 0914764.
37 0909988 BUSHING, Tilt & trim cable
38 3853557 SCREW, Brace to alterntr bracket This part replaces 0915790.
40 3853273 LOCKNUT, Coupler This part replaces 0914565.
41 3853681 BOOT This part replaces 0916127.
44 3854088 CABLE ASSY This part replaces 0987264.
51 3852260 CONNECTOR This part replaces 0916126.
52 3853679 ISOLATOR, Relay mounting This part replaces 0916125.
53 0320107 ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet
54 0512742 DISPOSITIF DE RETENUE, connecteur
55 3854117 CABLE ASSEMBLY This part replaces 0987445.
62 3852093 STUD, Lift bracket This part replaces 0310968.
0987182 3854075 RELAY & CABLE This part replaces 0987182.
